Carestation 600 Series

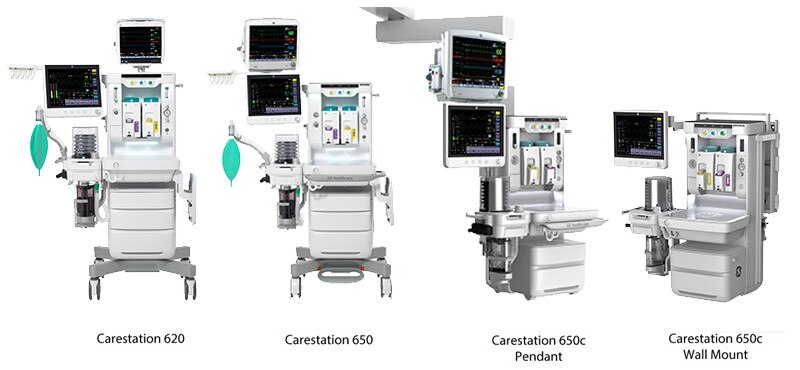

The Carestation^TM 600 series (620/650/650c) is a suite of compact, versatile and easy to use anesthesia systems designed to help solve today’s toughest challenges.

With our newest Carestation, we left no stone unturned, turned conventional wisdom on its head and challenged ourselves to rethink everything. Carestation 600 Series….It's all within reach.

The Carestation 600 series is a compact, versatile, affordable and easy to use anesthesia platform that features a:

Sleek integrated design suited for constrained environments
Simple user interface for improved workflows
Scalable tools and technology for diverse patient acuities

To help clinicians deliver efficient, precise and reliable anesthesia care to solve today's toughest challenges.

Benefits

High touch precision. Low flow performance.

GE is a leader in designing Carestations specifically suited to the practice of low-flow anesthesia delivery and its fast wash-in/wash-out requirements. Ensuring quick patient response to changes in fresh gas and anesthetic agent may positively impact anesthetic costs and improve induction and emergence - optimizing time in the OR.

Elegantly engineered and appointed with ergonomic touches and software driven time-savers, the Carestation 600 series can help enhance workflows, optimize precious OR time and help hospitals bend the cost curve.

Small footprint: mobility & rugged durability
Simple and fast guided daily checkout process -as fast as three minutes
Intuitive flat menu UI & ergonomic touches
Advanced ventilation & automated procedures¹
ecoFLOW Option & Pause Gas Control¹
Easy disassembly & cleaning

1. Only available on the Carestation 650 and 650c

Advanced Tools
*Only available on the Carestation 650 and 650c

Automated procedures and time saving workflow tools

Vital Capacity procedure

Automated bag “squeeze and hold”

Set PEEP to help sustain open lung ^2,3

Cycling procedure

Clinician-configured ventilation procedures

Programmable steps for increasing and decreasing PEEP levels

Pause Gas Flow

Simplifies temporary circuit disconnects. One button temporarily stops all gas flows and suspends alarms, agent delivery and ventilation so you can place all your focus on the patient.

Pause Gas feature helps prevent OR pollution

Stops gas & agent flow and silences all alarms for up to 1 minute

Uncompromised Ventilation – Pediatric to Adult Low Tidal Volume Delivery:

Tidal Volumes as low as 5 ml to the patient¹

Sampling flow down to 120 ml/min

Lung Capacity and FRC

Compliance Measurement and Spirometry

Smart Agent Settings Design

Circuit Compliance Compensation ensures that what you set is what you get, precisely showing what is delivered to the patient and taking into account volume in the patient circuit.

Monitors and responds to changes in the patient’s airway pressure or respiratory efforts up to 250 times per second.

Precision volume and pressure delivery to the patient Y-piece, breath by breath, help reduce the challenges in managing pediatric patients.

1. GE benchmark studies from 2011: GE Healthcare PCV to Tidal Volume Data Collection Test Results. Actual results may vary and are dependent on the patient. DOC0933949/DOC0970424

2. Tusman, G., Bohm, S. H., Tempra, A., Melkun, F., Garcia, E., Turchetto, E., . . . Lachmann, B. (2003). Effects of recruitment maneuver on atelectasis in anesthetized children. Anesthesiology, 98(1), 14-22.

3. Reinius, H., Jonsson, L., Gustafsson, S., Sundbom, M., Duvernoy, O., Pelosi, P., . . . Freden, F. (2009). Prevention of atelectasis in morbidly obese patients during general anesthesia and paralysis: a computerized tomography study. Anesthesiology, 111(5), 979-987.

Carestation Advantage

Only available on the Carestation 650 and 650c

Carestation Advantage

Scalable solution that connects devices in a single, integrated system. The digital platform supports upgradeability so your investments keep pace with technology advances.

Innovative parameters and advanced tools intelligently packaged
User interface specifically designed to improve access to core functions
Simplified patient transport and data transfer

Integrated CARESCAPE Respiratory Module

Single-width modularity
Reduced sample flow: 40% decrease in sample flow size
67% increase in Respiration Rate (RR) measurement range
100% increase CO2 & O2 measurement accuracy RR range
40% increase in RR range with Pediatric Spirometry/Pedi-lite sensor
67% decrease in TV lower range with Pediatric Spirometry/Pedi-lite sensor
Environment friendly Enhanced new water trap design

*In comparison to GE Healthcare E-gas modules

ecoFLOW
*Only available on the Carestion 650 and 650c

Anesthetic agents are the biggest ongoing expense associated with anesthesia units. Reducing fresh gas flow during maintenance of anesthesia is associated with several benefits. Enhanced preservation of temperature and humidity, cost savings through more efficient utilization of inhaled anesthetics, and environmental considerations are three key reasons to implement a low-flow friendly practice.¹

ecoFLOW is a display option that provides a graphical representation of oxygen flow and anesthetic agent use that has the potential to reduce agent costs when agent waste gases are reduced.²

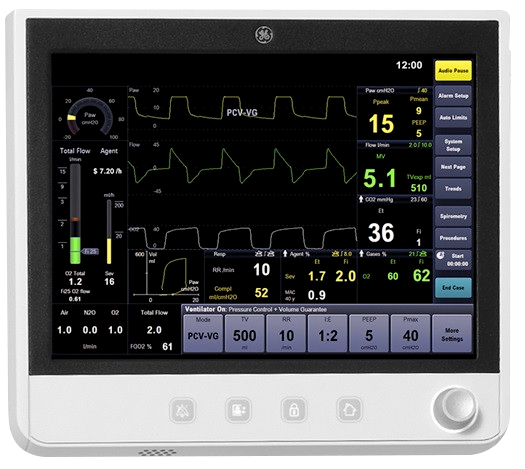

ecoFLOW Display: How it looks…how it works.

The "Fi25 O2" target is the target to maintain patient circuit oxygen at 25%

Maintain "O2 total" to be greater than "Fi25 O2 flow"

Adjust flow to help mitigate the risk of hypoxic delivery or avoid excess FGF delivery

1. Brief review: theory and practice of minimal fresh gas flow anesthesia. Brattwall M, Warrén-Stomberg M, Hesselvik F, Jakobsson J. Can J Anaesth. 2012 Aug;59(8):785-97. doi: 10.1007/s12630-012-9736-2. Epub 2012 Jun 1. https://www.ncbi.nlm.nih.gov/pubmed/22653840

2. ECRI 2011 Health Product Comparison System: Anesthesia Units https://www.ecri.org/ES/Documents/Anesthesia Units.pdf
