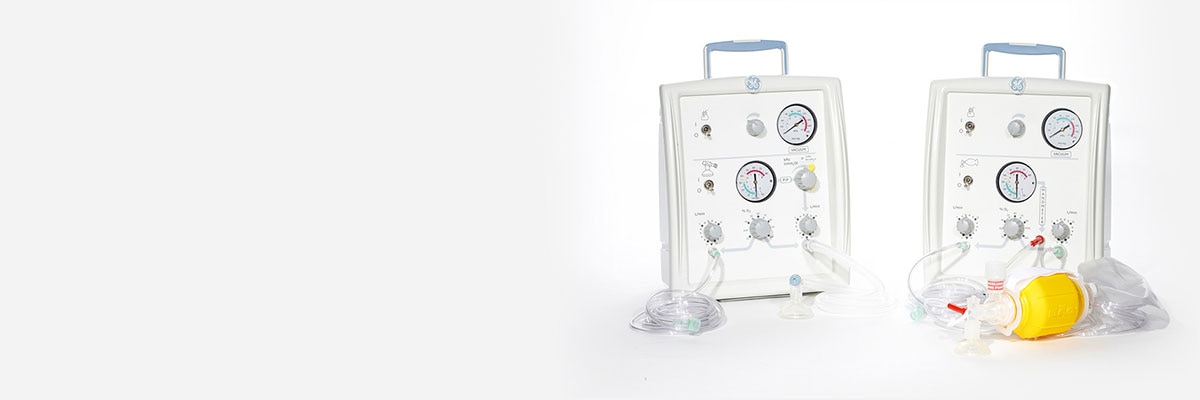

uscitation-giraffe-stand-alone-infant-resuscitation-system-gehc-giraffe-star_spotlight.jpg

Giraffe Stand-alone Infant Resuscitation System

Bringing life-saving capabilities virtually anywhere

uscitation-giraffe-stand-alone-infant-resuscitation-system-gehc-giraffe-star_spotlight.jpg

Giraffe Stand-alone Infant Resuscitation System

Bringing life-saving capabilities virtually anywhere

Fast, easy and integrated access to critical equipment you need for effective resuscitation of newborns.

Fast, Easy, Integrated Resuscitation

The Giraffe* Stand-alone Infant Resuscitation System provides you with access to critical equipment you need for safe, effective resuscitation of the newborns in your care. And it’s so portable that you can set it up anywhere you need it, from Labor and Delivery to NICU to well-baby nursery.

With our Giraffe Stand-alone Infant Resuscitation System, you'll get:

  • Critical capabilities you need
  • Innovations you can rely on
  • All in one compact unit

Benefits

The Giraffe Stand-alone Infant Resuscitation System allows you to bring life-saving capabilities virtually anywhere in the hospital, from Labor and Delivery to NICU to the well-baby nursery - and gives you fast, easy, integrated access to critical equipment you need for safe, effective resuscitation of newborns.

Essential Capabilities You Need

This exceptional system has been designed to meet the latest ILCOR recommendations, adopted by local resuscitation councils. It supports:

  • Both T-piece and Bag-and-Mask configurations
  • Effective airway management, with fully integrated suction
  • Monitored delivery of positive pressure during ventilation
  • Blended air/O2 gas delivery throughout stabilization

Innovations You Can Rely On

Advanced capabilities such as these are standard equipment:

  • Full system integration to streamline setup and simplify protocol standardization
  • An innovative T-piece circuit for comfortable, single-handed breathing control
  • The design of the T-piece resuscitation system eases adjustment of the maximum inspiratory pressure to speed transition to the desired pressure level
  • A built-in pressure-priority valve insures the system - when connected to both wall and tank gas sources - draws from the wall first, thereby conserving tank gases for transportation.

All in a Compact Unit

The Giraffe Stand-alone Infant Resuscitation System combines all these capabilities in one compact unit, providing:

  • Quick and unobstructed access to suction, blended gases and monitored positive pressure capability
  • Flexible mounting options, from roll stand to GCX arms
  • Easy mounting on the Giraffe Shuttle transportable power source for intra-hospital transport
Nurse with Giraffe Stand-alone Infant Resuscitation System.

Giraffe Stand-alone Infant Resuscitation System.

Specifications

Our Giraffe* Stand-alone Infant Resuscitation System specifications include:

  • Depth: <8.7 in (22 cm) knobs to fittings
  • Height: <14.6 in (37 cm)
  • Width: <11.8 in (30 cm)
  • Weight: Approx. 15 lbs (7 Kg)
  • Input Source: Hospital pipeline or cylinder with regulator
  • Input Gas Pressure: 40-75 psi (275-600 kPa)
  • Vacuum Range: 0-150 mm Hg
  • Flow Range: 0-15 lpm
  • Air/O2 Blender Range: 21-100% O2
  • Suction Regulator Range: 0-150 mm Hg
  • Maximum PIP (for T-piece Systems only): 45 +/- 5cm H2O
  • PIP Override (for T-piece Systems only): >30 +/- 4 cm H2O

Tour

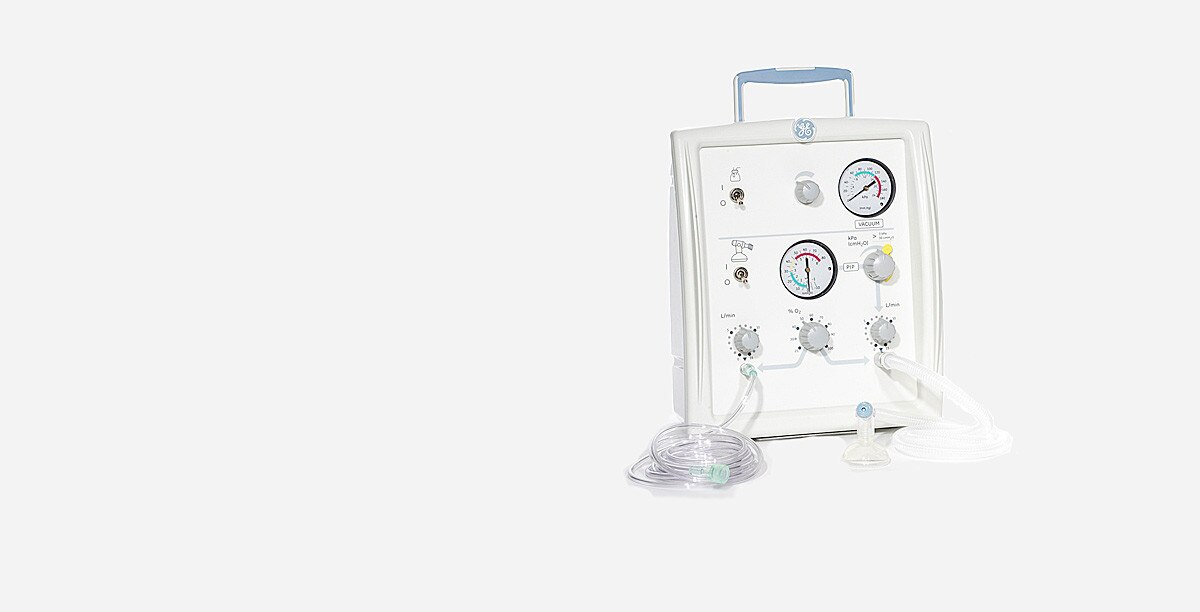

hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_active.jpg
  • Integrated Suction

    A venturi vacuum supplies continuous suction range from 0 to 150 mm Hg (0-20 kPa) as per local resuscitation protocol for clearing of the oral, tracheal and nasal passages. Suction control knob lets you adjust desired negative pressure.

    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_1.jpg
  • Integrated Pressure Manometer

    Conveniently located for viewing. Displays both the PIP (Peak Inspiratory Pressure) and PEEP (Positive End Expiratory Pressure).

    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_2.jpg
  • PIP Control

    The Peak Inspiratory Pressure (PIP) control knob and a flow meter regulate medical gas supplied to a dedicated T-piece outlet.

    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_3.jpg
  • Integrated Blender

    Eliminates the need for an external system and additional tubing. Regulate FiO2 from 21 to 100% oxygen with the control knob located on the front panel.

    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_4.jpg
  • Flow Meter & Control

    Primary flow meter and control knob let you set desired flow rate. A secondary flow meter outlet and control knob for free flowing oxygen blow-by.

    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_5.jpg
  • Blended Gas Outlet Ports

    Primary gas outlet port to connect GE’s T-piece circuit. Auxiliary gas outlet port to connect Oxygen tubing for blended free flow Oxygen.

    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_6.jpg

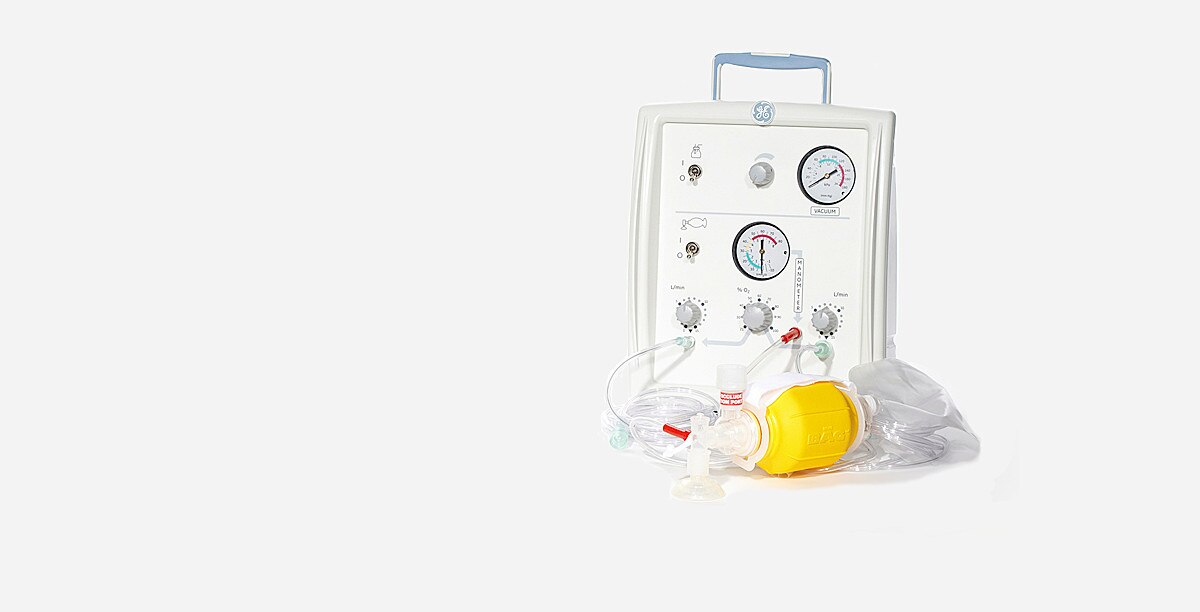

hotspot tours-mic-giraffe star-bag and mask-gehc-giraffe-star_spotlight_2_active.jpg
  • Integrated Suction

    A venturi vacuum supplies continuous suction range from 0 to 150 mm Hg (0-20 kPa) as per local resuscitation protocol for clearing of the oral, tracheal and nasal passages. Suction control knob lets you adjust desired negative pressure.

    hotspot tours-mic-giraffe star-bag and mask-gehc-giraffe-star_spotlight_2_hotspot_1.jpg
  • Integrated Pressure Manometer

    Allows a trained clinician to monitor pressure throughout the respiratory cycle.

    hotspot tours-mic-giraffe star-bag and mask-gehc-giraffe-star_spotlight_2_hotspot_2.jpg
  • Integrated Blender

    Eliminates the need for an external system and additional tubing. Regulate FiO2 from 21 to 100% oxygen with the control knob located on the front panel.

    hotspot tours-mic-giraffe star-bag and mask-gehc-giraffe-star_spotlight_2_hotspot_3.jpg
  • Flow Meter & Control

    Primary flow meter and control knob let you set desired flow rate. A secondary flow meter outlet and control knob for free flowing oxygen blow-by.

    hotspot tours-mic-giraffe star-bag and mask-gehc-giraffe-star_spotlight_2_hotspot_4.jpg
  • Blended Gas Outlet Ports

    Primary gas outlet port to connect either a self-inflating or flow-inflating bag. Auxiliary gas outlet port to connect Oxygen tubing for blended free flow Oxygen.

    hotspot tours-mic-giraffe star-bag and mask-gehc-giraffe-star_spotlight_2_hotspot_5.jpg

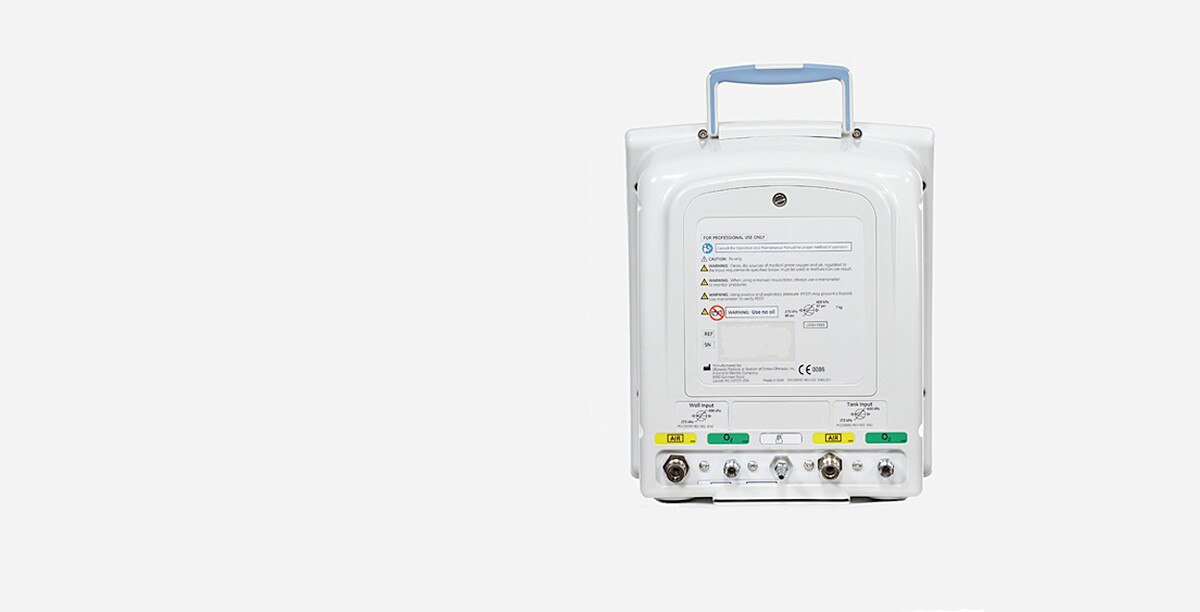

hotspot tours-mic-giraffe star-back view-gehc-giraffe-star_spotlight_3_active.jpg
  • Back Panel Gas Fittings

    Built-in gas fittings and adapters for Air and Oxygen gas inputs from wall sources.

    hotspot tours-mic-giraffe star-back view-gehc-giraffe-star_spotlight_3_hotspot_1.jpg
  • Suction Port

    Suction port to attach one end of the suction tubing. Connect other end to the vacuum inlet port on the suction canister provided with the unit.

    hotspot tours-mic-giraffe star-back view-gehc-giraffe-star_spotlight_3_hotspot_3.jpg
  • Built-in Gas Fittings

    Built-in gas fittings and adapters for Air and Oxygen gas input from the tank source.
