Mini Telemetry

Our fetal monitoring solution provides enhanced workflow for you and a comfortable birthing experience for mom.

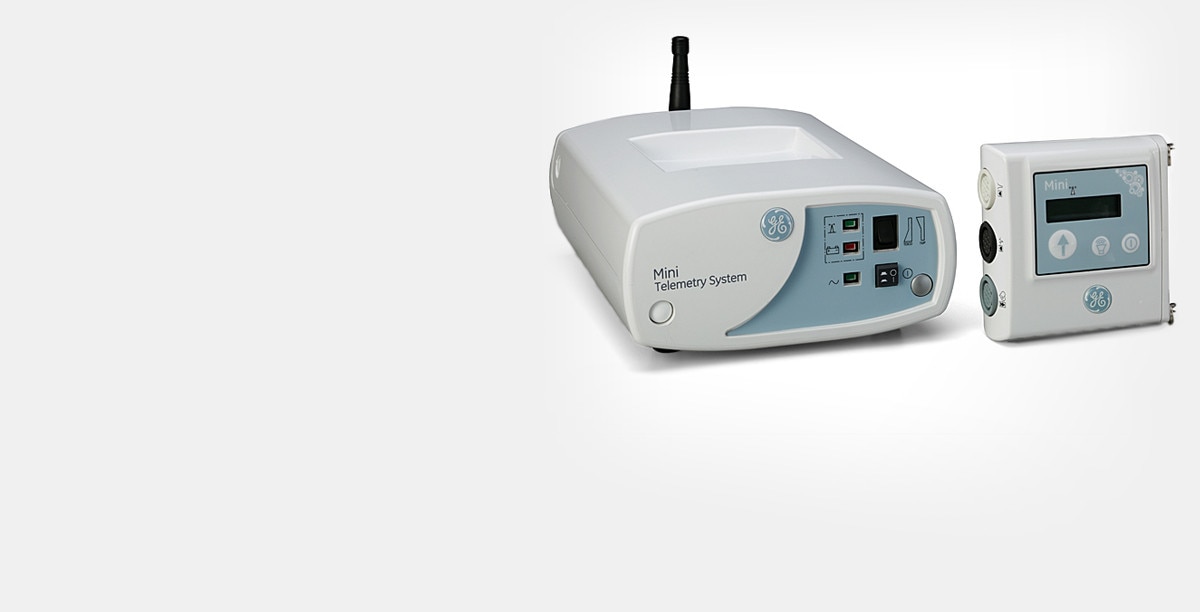

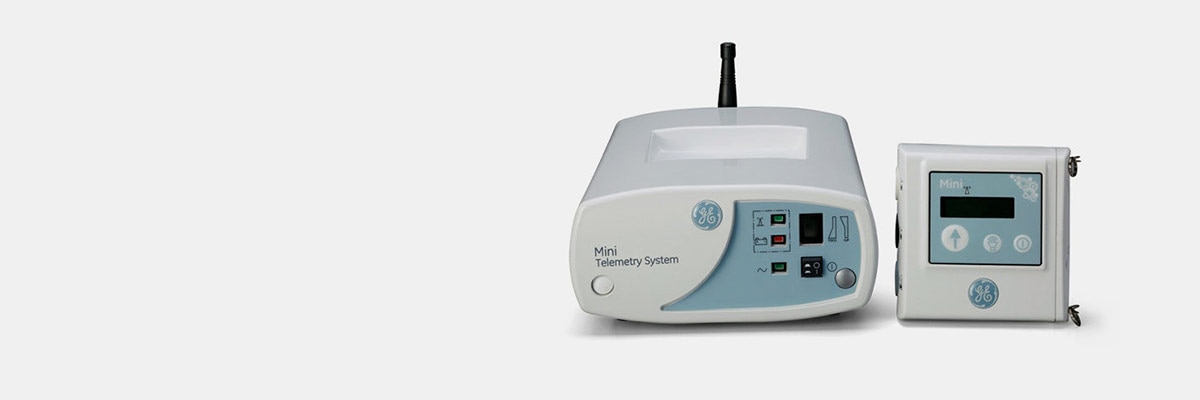

The GE Mini Telemetry System offers a simple, complete wireless monitoring solution for efficient, enhanced workflow and a more comfortable birthing experience. Its compact, ergonomic design gives you the reliability and time saving features you need and gives mothers the freedom they desire.

The system:

  • Features watertight Nautilus Transducers
  • Provides the flexibility of portable, gap-free monitoring during most birthing processes, including laboring in water and intra hospital transport
  • Is compatible with your existing Corometrics ™ monitors and transducers
  • Once you position the transducers on your patient, you can interchange them with other existing Corometrics monitors if necessary.

    *Caution: The Mini Transmitter must be kept dry.

Mini Telemetry System pregnant mother opening door


Our mini telemetry system offers:

  • Freedom
    • Mom won’t be tied to bed, so she can move around more naturally, improving the birthing experience.
  • Flexibility
    • Moms can walk around and use the lavatory while still being monitored, allowing moms to comfortably engage in more activities and different types of birthing options.
  • A laboring in water option
    • The waterproof Nautilus Transducers allow moms to take advantage of the soothing benefits of aquatherapy.
  • Improved safety
    • The small, light transmitter is easy to carry, and a recess in the unit improves safety through cable management.

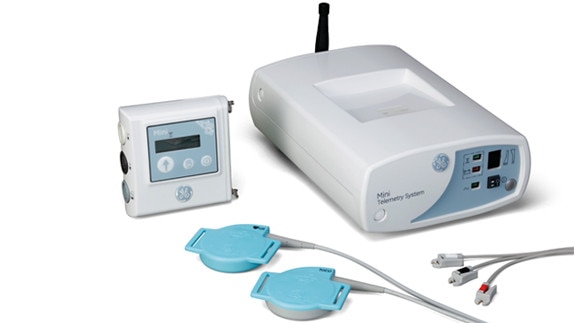

Some of the technology that makes GE’s mini telemetry system an exceptional choice is:

  • Waterproof 9-crystal ultrasound transducers
    • Mini Telemetry uses proven Nautilus waterproof 9-crystal ultrasound transducers, which are identical to those used with all Corometrics/GE fetal monitoring products.
  • Wireless technology
    • The wireless telemetry technology offers exceptional signal quality, letting mom ambulate during labor.
  • Compact, 3-port design
    • The compact, 3-port design allows FHR, uterine activity, and ECG monitoring and allows you to monitor twins as well.
  • Longer battery life
    • An extended-life battery accommodates the full duration of the average labor (up to 12 hours) with a built-in charging bay.
  • Mobile monitoring technology
    • Speakers or a headphone jack are built into the unit, offering audio monitoring of fetal heart rate while mom is mobile.
  • User-friendly features
    • The display screen of the transmitter offers a backlit display, battery indicator, and connection status, it also has a mark key to notate fetal movement.


Transmitter Performance Specifications

  • Monitoring Modes
    • Ultrasound
    • External Uterine Pressure (TOCO) or Internal Uterine Pressure Catheter (IUPC)
    • Fetal ECG or Maternal ECG
    • Full interchangeability of transducers between GE Corometrics 120, 170, 250, 250cx Series and the Mini Telemetry
  • Ultrasound System
    • Pulsed Doppler
    • US & Can: Output Power: 4mWAvailable Frequencies: 608.0250 - 613.9750MHz
  • Transmission Range
    • 608.0250 - 613.9750MHz - 1640 ft (500m) line of sight
  • Antenna Type
    • Internal, helical
  • Battery
    • Rechargeable dual cell Lithium Ion
    • 7.2VDC at 2600mAh
    • Full charge run time: up to 12 hours
    • Recharge to full charge: 4 hours

Receiver Performance Specifications

  • Power Requirements
    • 100–120VAC, 50–60Hz, 220-240VAC, 50-60Hz
    • Max Power: 30W
  • Output Signals
    • US, FECG, MECG, TOCO, IUPC, Mark
  • Antenna type
    • Flexible, detachable, BNC interconnect
    • Other factory-approved external antennas or antenna systems may be used.
  • Physical Specifications
    • Height: 4.0 in (10.2 cm)
    • Width: 8.1 in (20.6 cm)
    • Depth: 11.9 in (30.2 cm)
    • Weight: 5.6 lbs (2.55 kg)

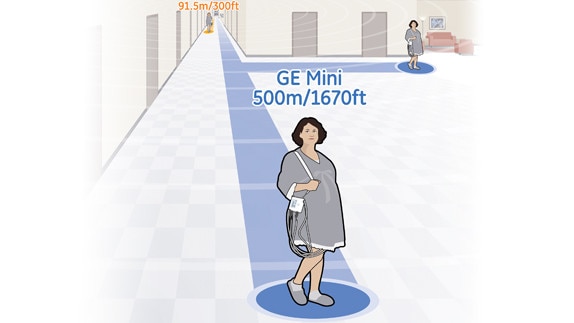

  • Stronger Signal

    Exceptional signal quality with a line of sight antenna range of 500 meters / 1670 feet.

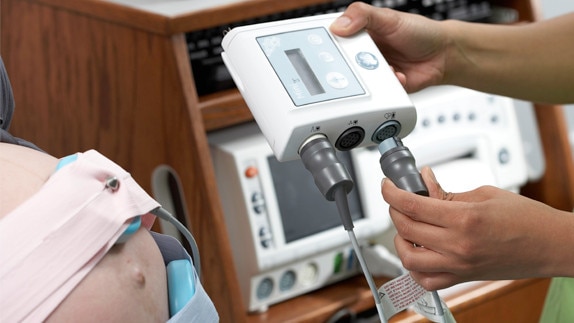

  • Transitions with Ease

    The Mini Telemetry System is compatible with your existing Corometrics* monitors, using the same transducers whether the patient is in bed or mobile. Once you position the transducers on your patient, they can be interchanged with existing Corometrics monitors.
  • Flexible Monitoring

    The 3-port design allows fetal heart rate, uterine activity and ECG monitoring modes, providing the flexibility to use telemetry in multiple monitoring situations. Supports twin monitoring through use of ultrasound and FECG.

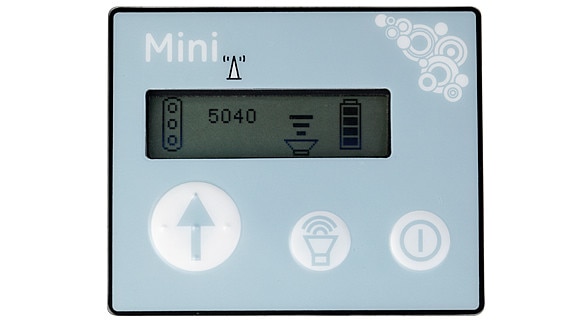

  • Easy to View Display Screen

    The user-friendly backlit display provides many features helpful to both caregiver and patient: - MARK Button for mom to notate fetal movements - Battery Indicator to prompt when power is low - Plug-in Confirmation Indicator displays connection status - Speaker volume control - Channel Number
