AIR™ Image Quality

Consistently superior image quality.

Reconstruction is at the heart of every scan and reducing noise during reconstruction is critical to achieving clear images. AIR™ Image Quality completes the AIR™ family of products with image reconstruction software that helps improve SNR and image sharpness in images without having to overcompensate in your scanning protocol.

AIR™ Recon DL*

Level up your image quality

AIR™ Recon DL is a pioneering, deep-learning based reconstruction algorithm that improves SNR and image sharpness, enabling shorter scan times. It improves image quality at the foundational level by making use of the raw data to remove image noise and ringing.

Conventional (1:59 min.) vs. AIR™ Recon DL (1:18 min.)

See true-to-MR detail

From image noise to ringing, AIR™ Recon DL uses deep learning to prevent artifacts from ever being introduced to your images. The result is TrueFidelity™ MR Images. Images so clear and so sharp, you can be sure there is nothing in between you and what you need to see.

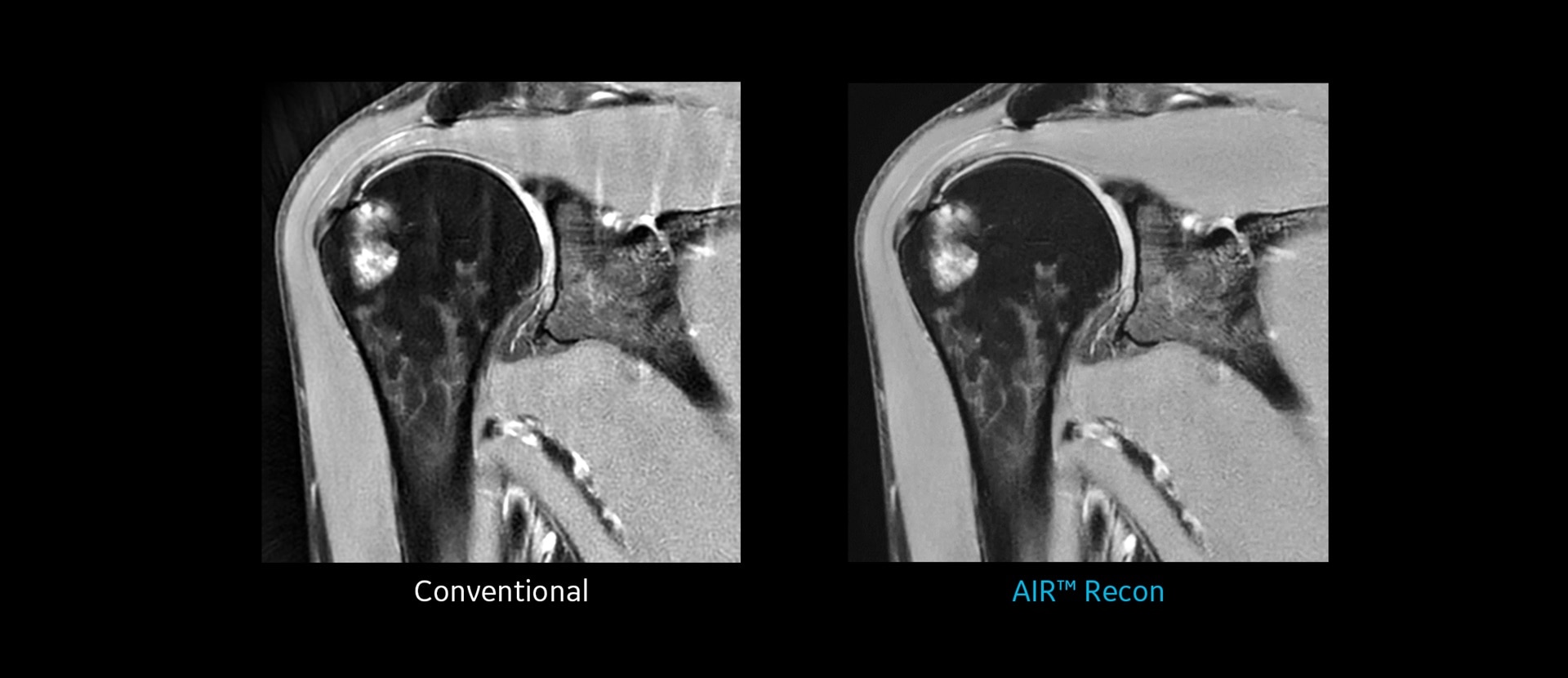

Conventional vs AIR™ Recon

AIR™ Recon

Make no substitutes for image quality

AIR™ Recon is designed to make exceptional image quality in faster scan times the new standard for MR imaging. It reduces background noise and out-of-FOV artifacts for an improved SNR and clearer, crisper images, making it easier for every technologist to consistently achieve the image quality you need in the first scan. It’s an important step in universalizing exceptional image quality and shorter scan times for all.

Conventional (3:33 min) vs. AIR™ Recon (3:33 min)

Clearly consistent images

AIR™ Recon works in the background, collecting image noise data during prescan and using it to elevate the quality of every image. It’s seamless to use, always on and available on the majority of routine clinical scans. With AIR™ Recon, you can expect clearer image quality the first time, so you can be confident that you won’t have to rescan or reschedule your patients.

Left: Conventional, Right: AIR™ Recon DL
0.7 x 0.8 x 4.0 mm, 2:07 min.
Left: Conventional, 2:50 min.
Right: AIR™ Recon DL, 1:28 min.
0.9 x 1.0 x 3.5 mm
Left: Conventional, 2:50 min.
Right: AIR™ Recon DL, 1:18 min.
0.4 x 0.6 x 3.5 mm

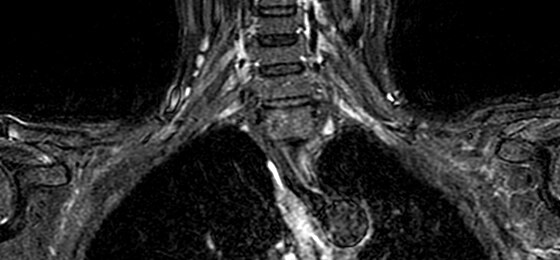

Spine imaging with AIR™ Recon DL
Left: Cervical spine - 0.4 x 0.4 x 3.0 mm
Center: Thoracic spine - 0.7 x 0.9 x 3.0 mm
Right: Lumbar spine - 0.7 x 0.9 x 3.0 mm
Left: Conventional, Right: AIR™ Recon DL
0.2 x 0.2 x 1.6 mm
Left: Conventional, Right: AIR™ Recon DL
0.3 x 0.3 x 1.0 mm
Left: Conventional, 0.9 x 1.2 x 4.0 mm, 2:42 min.
Right: AIR™ Recon DL, 0.7 x 1.0 x 4.0 mm, 2:12 min.
Left: Conventional, 0.4 x 0.6 x 3.5 mm, 1:42 min.
Right: AIR™ Recon DL, 0.4 x 0.6 x 3.5 mm, 1:18 min.
Left: Conventional, 0.5 x 0.6 x 3.5 mm, 2:49 min.
Right: AIR™ Recon DL, 0.4 x 0.6 x 2.5 mm, 2:37 min.
Left: Conventional, 0.4 x 0.6 x 3.0 mm, 2:58 min.
Right: AIR™ Recon DL, 0.3 x 0.5 x 3.0 mm, 2:11 min.
Left: Conventional, 0.6 x 0.7 x 3.0 mm
Right: AIR™ Recon DL, 0.6 x 0.7 x 2.0 mm
AIR™ Recon DL

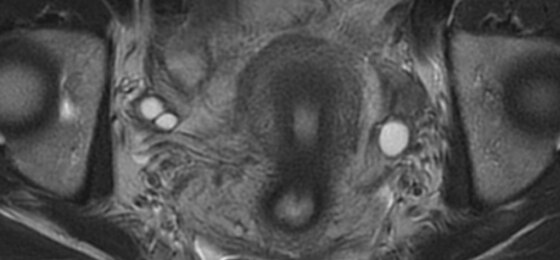

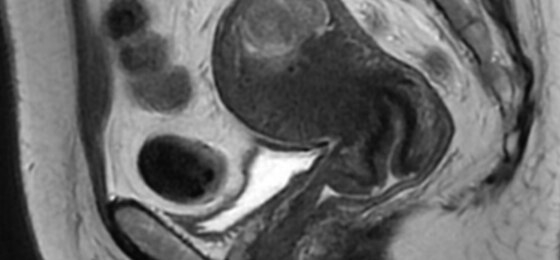

Left: Female pelvis, 0.9 x 1.0 x 3.0 mm

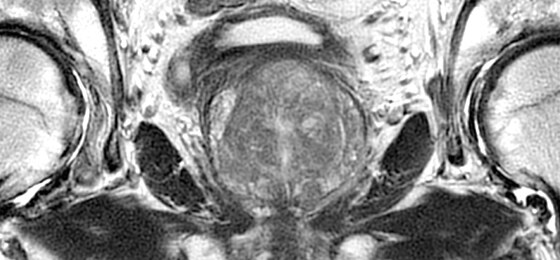

Right: Male pelvis, PI-RADS® protocol, 0.4 x 0.7 x 3.0 mm, 2:43 min.
AIR™ Recon DL
Left: Two station chest, abdomen and pelvis scanned with
AIR™ Coil, 1.0 x 1.3 x 3.0 mm
Center: Axial SSFSE, 1.0 x 1.3 x 3.0 mm
Right: Axial SSFSE with FatSat, 1.0 x 1.3 x 3.0 mm

Video Gallery

AIR™ Behind The Scenes Film
AIR™ Animation
AIR™ First Clinical Impressions Video

Supporting Materials

AIR™ Brochure

Download

SIGNA™ Pulse of MR AIR™ Collection

Download

*Not yet CE marked. Not available for sale in all regions. Currently only available on 3.0T systems.
