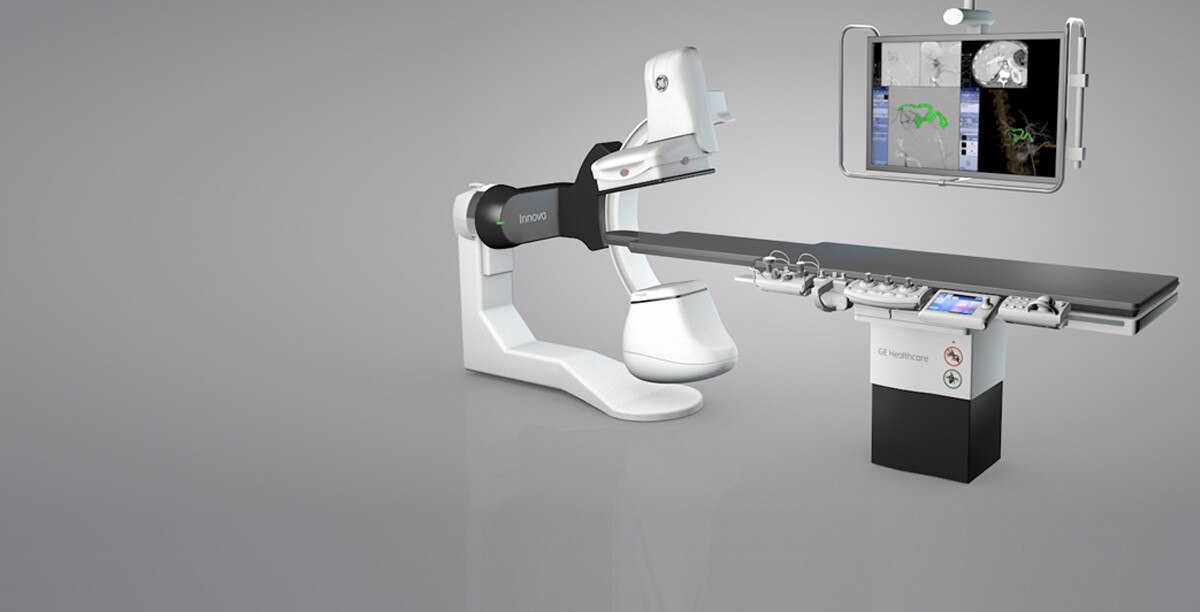

Innova IGS 540

Innova™ IGS 540 is a floor-mounted system that boasts one of the largest fields of view for interventional oncology procedures.
igs-for-interventional-oncology-innova-igs-540-overview

See. Your Way. Clearly.

With its 41 cm (16.1 in) square detector, Innova IGS 540 provides extensive body coverage for peripheral and abdominal procedures.

The Innova IGS 540 was designed from the ground up to provide the image clarity you need while helping you keep dose as low as possible. It includes features like Dose Personalization1, which gives you the tools to choose from up to five2 automatic exposure preferences for your system. You can also modify any of these preferences in any clinical protocol, to enable multi-procedure, multi-user customization, and thus support well-informed decisions.

Powered with dedicated advanced applications, you can plan, guide and assess procedures with confidence.

  • FlightPlan for Liver helps you plan your liver embolization in three intuitive steps and automatically highlight vessels traveling from the catheter tip to the hyper-vascular tumor.

  • Innova TrackVision helps you can plan and guide needle procedures by identifying one or multiple needle trajectories for your case and overlay these virtual trajectories over the live fluoroscopic images - so you know where you are in delicate

Gallery

  • GE Healthcare Innova IGS 540

    GE Healthcare Innova IGS 540

  • Innova IGS 540

    Innova IGS 540

Tour

  • Gantry angulations

    3-axis C-arm makes complex angulations easy to achieve.

  • Head access

    Comfortable access to the head of the patient with the offset C-arm and L-positioner.

  • InnovaBreeze*

    Follow the contrast bolus in real time using variable panning speed control with an easy workflow.

  • Lateral imaging

    Easy transition from AP to lateral using flexible offset C-arm and L-positioner.

  • Off-set C-arm

    Maximum positioning flexibility and excellent patient access for coverage from groin to head.

Benefits

  • Excellent anatomical coverage

    The Innova IGS 540 with its 41 x 41 cm (16.1 in) square flat-panel digital detector boasts one of the largest fields of view for vascular and interventional imaging. It can cover large anatomies, such as both legs simultaneously, designed for fewer runs than smaller detectors, enabling efficient use of contrast and dose.

  • Superb image quality with high Detective Quantum Efficiency (DQE)

    The proprietary angiography flat-panel detector offers one of the industry’s highest ratings for Detective Quantum Efficiency (DQE), a parameter internationally acknowledged as an index of detector performance in contrast- and dose-limited imaging performed in clinical studies. High DQE enables better-quality images at the same dose, or the same quality image at a lower dose.

  • Lower dose by design

    GE designs systems from the ground up with the tried and trusted GE imaging chain, optimized to provide the image clarity you need while keeping dose as low as possible. Our dose-reduction features empower you to easily optimize and personalize dose settings from the tableside, while maintaining clinical details you need to make well-informed decisions. But improving dose management takes a strategy – what we call the GE Blueprint. It includes low-dose imaging technologies for minimally invasive procedures, but also considers the people, culture and processes around them.
    Learn more.

  • Simple, centralized, automated controls

    Control your system and images with integrated, intuitive tableside controls. With simple menus, the Central touchscreen lets you control most system functions, configure the system, modify imaging parameters, control your large display monitor, and manipulate advanced applications – all at the tableside. The comfortable, easy-to-grasp control knob makes it easy to pan the table, position the gantry, and perform procedures.

  • All-in-one large display monitor

    The full-color 142 cm (56 in) diagonal 8 megapixel medical-grade large display lets you view multiple images from multiple sources. Get up to 120 customized layouts, easily changeable at tableside with the Central touchscreen. Zoom in comfortably without loss of detail or pixilation to get the clinical focus you need.

Clinical Applications

Over 20 advanced applications to help you plan, guide and assess complex procedures

GE Healthcare offers a full suite of advanced applications designed to help improve your lab efficiency and enhance clinical confidence to plan, guide and assess complex procedures. They can be used across a full range of interventional procedures whilst being built to answer dedicated challenges. Example of a brilliant innovation in Interventional oncology is FlightPlan for Liver that helps plan TACE procedures by automatically highlighting vessels traveling from the catheter tip to the hypervascular lesion.

GE Healthcare Innova IGS 540 Clinical Application FlightPlan for Liver
FlightPlan for Liver
A breakthrough in liver embolization
 FlightPlan for Liver helps you plan your liver embolization procedures. It automatically highlights vessels traveling from the catheter tip to the vicinity of a hypervascular lesion.
Learn more


GE Healthcare Innova IGS 540 Clinical Application Innova 3D
Innova 3D
3D imaging in the interventional lab
Innova 3D is an acquisition mode that provides 3D imaging from rotational angiography allowing you to clearly visualize complex vasculature in the interventional lab. It provides high-contrast 3D images showing fine spatial resolution through a full range of tissue densities. It is automatically reconstructed using your preferred parameters on the Advantage Workstation to give you access to a full range of analysis tools.
Learn more

GE Healthcare Innova IGS 540 Clinical Application Innova Vision
Innova Vision
Live 3D guidance
Innova Vision overlays 3D prepared datasets from CT, MR or 3D rotational images on live fluoroscopic images in a single click. This 3D roadmapping application helps you guide devices in complex anatomies.
Learn more

GE Healthcare Innova IGS 540 Clinical Application Innova CT
Innova CT
Acquire CT-like images in the vascular lab
Used for clinical applications requiring detailed images with low-contrast resolution, Innova* CT enhances soft-tissue visualization to help you clearly identify suspected lesions. Easy access to CT-like images right in the vascular lab means you may not need to transfer patients to a CT exam room.
Learn more

GE Healthcare Innova IGS 540 Clinical Application Innova TrackVision
Innova TrackVision
Progress with confidence
Innova TrackVision provides live 3D needle guidance during your procedures. It lets you advance the needle down a planned trajectory overlaid on live fluoroscopy, visualizing any deviations from the path.
Learn more

GE Healthcare Innova IGS 540 Clinical Application Integrated Registration
Integrated Registration
Multi-modality image management
Integrated Registration lets you fuse and register two volumetric acquisitions from the same or different acquisition modalities. With it, you can easily compare 3D anatomical images from CT, MR with PET, SPECT, and X-ray angiography3 for a more comprehensive analysis.
Learn more

Procedures

Liver embolization

To deliver therapeutic material to tumors during trans-arterial chemoembolization therapy, it is essential to identify the liver vessels accurately. But the liver's complex vasculature can make precise identification of tumor-feeding vessels in 2D and 3D images a challenge, often requiring significant time, radiation, and contrast media.

GE Healthcare Innova IGS 540 Liver Emobolization

Plan

FlightPlan for Liver helps you plan your liver embolization procedure. It automatically highlights vessels traveling from the catheter tip to the vicinity of a liver hypervascular lesion.

GE Healthcare Innova IGS 540 Liver Emobolization

Guide

Once ready, you can send the FlightPlan for Liver 3D model to Innova Vision with a single click and use it as a 3D roadmap to guide catheters across tortuous vessels and bifurcations, helping you perform the embolization with confidence.

GE Healthcare Innova IGS 540 Liver Emobolization

Assess

A post-operative Innova CT helps you determine the success of the embolization.

Needle procedures

Performing needle procedures in the interventional suite frees up your CT system and provides better access to the patient. However, under fluoroscopic guidance, it may be challenging and time-consuming to find the right entry point and advance the needle while avoiding critical structures.

GE Healthcare Innova IGS 540 Needle Procedures

Plan

With Volume Viewer and Trajectory Planning, you can plan the procedure using outstanding 3D information and determine the optimal skin entry points and needle paths.

GE Healthcare Innova IGS 540 Needle Procedures

Guide

With Innova TrackVision, you can guide your needle along the trajectory that will follow the C-arm angulation and table movement. Plus, a dedicated algorithm overlays the bone anatomy and helps you correct for even small patient motion, helping to facilitate accurate needle trajectory registration at any time during your procedure.

GE Healthcare Innova IGS 540 Needle Procedures

Assess

At the end of the procedure, when the cement has been injected, an Innova CT acquisition will help you see the cement implantation in 3D and thus confirm procedure completion.

Portal Vein Embolization

The objective is to embolize only the branches that correspond to the part of the liver that will be resected. The portal vein has numerous anatomical variations, with many different branches that can be difficult to distinguish one from another on 2D fluoroscopic images. To do this with confidence, you must understand the exact position of the catheter in the anatomy and control the embolization phase in real time.

GE Healthcare Innova IGS 540 Portal Vein Embolization

Plan

With Innova 3D, you can depict the full liver portal system and select the branches to be embolized without being bothered with vessel tortuosity and superimposition issues.

GE Healthcare Innova IGS 540 Portal Vein Embolization

Guide

Using Innova Vision, you can fuse the 3D information on live fluoroscopy in the lab with real-time adjustment of the C-arm angulations and table position, offering virtual support to navigate in the anatomy and control the embolic agent material injection.

GE Healthcare Innova IGS 540 Portal Vein Embolization

Assess

After the procedure, you can use an Innova Subtracted 3D acquisition to visualize embolic material uptake in the branches embolized allowing you to determine whether the patient needs additional branches embolized.

Related Courses

Related Content

Comprehensive solution for liver embolization

Download

Related Products

In clinical use, the results of the application of dose reduction techniques will vary depending on the clinical task, patient size, anatomical location and clinical practice. The Interventional radiologist, assisted by a physicist as necessary has to determine the appropriate settings for each specific clinical task.

1 – Option

2 – Except in following countries: Germany, Switzerland, Austria, New Zealand where that list is limited to 3 preferences

3 - For XA modality series, Integrated Registration currently supports only 3D X-Ray angiography images (stored as CT Image Storage DICOM objects) acquired with GE equipment and reconstructed with the 3DXR application.
