LOGIQ E9 with XDclear

LOGIQ E9 with XDclear

Use expert tools to help achieve extraordinary images and easy workflow with the flagship LOGIQTM E9.

Make every day extraordinary.

The LOGIQ E9 with XDclear is a powerful and versatile general imaging system that helps meet a wide variety of general imaging needs. With its intuitive, advanced capabilities, the LOGIQ E9 with XDclear allows you to make every day extraordinary

LOGIQ E9 with XDclear can help you:

  • Deliver extraordinary image quality on a broad spectrum of patient body types.
  • Visualize blood flow without the limitations of Doppler
  • Enhance your workflow.
  • Integrate real-time ultrasound with previously acquired CT, MR, PET, or ultrasound images.
  • Visually track your position during a scan.

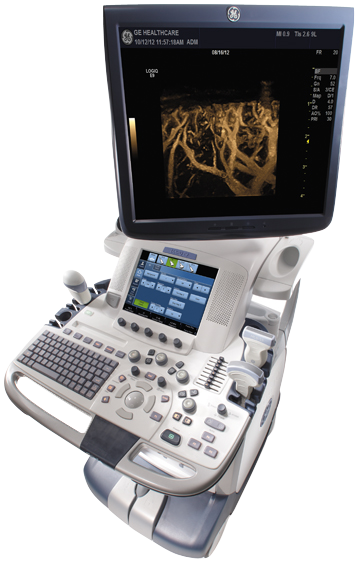

The LOGIQ E9 with XDclear premium ultrasound.

                             The LOGIQ E9 with XDclear premium ultrasound.

Tour

hotspot tours-logiq e9-hotspottour-logiq-e9-extraordinary-images.png
  • Agile Acoustic Architecture

    Agile Acoustic Architecture is a flexible approach built on proprietary clinical models of the human body.

    hotspot tours-logiq e9-agile-acoustic-architecture.jpg
  • Auto Optimization

    Automatic Optimization (AO) helps deliver excellent and consistent image quality in both B-mode and spectral Doppler at the touch of a button.

    hotspot tours-logiq e9-auto-optimization.jpg
  • Coded Harmonic Imaging

    Coded Harmonic Imaging helps enhance near-field resolution for improved small parts imaging as well as far-field penetration compared with typical harmonic imaging.

    hotspot tours-logiq e9-coded-harmonic-imaging.jpg
  • CrossXBeam

    CrossXBeam combines multiple images from different angles into a single, real-time image that allows for better border definition and increased contrast resolution.

    hotspot tours-logiq e9-cross-beam.jpg

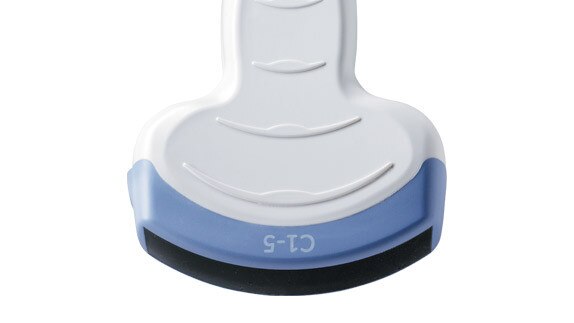

  • E-Series Transducer Technology

    Acoustic Amplifier Technology helps achieve higher sensitivity by recapturing unused acoustic energy. When combined with other E-Series transducer technologies the result is increased penetration on large patients, outstanding spatial resolution and image uniformity from near to far field to help improve diagnostic confidence.

    hotspot tours-logiq e9-e-series-transducer.jpg
  • Speckle Reduction Imaging

    SRI is a real-time algorithm that helps increase contrast resolution by reducing speckle noise while maintaining true tissue appearance.

    hotspot tours-logiq e9-speckle-reduction.jpg
hotspot tours-logiq e9-logiq_02.png
  • Auto IMT

    Automatic edge detection for intima-media thickness (IMT) measuring technology helps reduce the time it takes to evaluate the carotid arterys intima-media thickness and can help increase the consistency and reliability of IMT measurements.

  • Cardiac Tools

    Exceptional imaging and color capabilities together with expert cardiac tools help quantitatively assess systolic and diastolic function. Advanced cardiac assessment can be achieve with Tissue Velocity Imaging (TVI), Tissue Velocity Doppler and Q-Analysis tools.

    hotspot tours-logiq e9-cardiac-tools.jpg
  • Elastography

    Elastography software estimates the strain in the region of interest after compression and creates an elastogram that represents tissue elasticity.

    hotspot tours-logiq e9-elastography.jpg
  • Volume Navigation

    Volume Navigation is an innovative technology onboard the LOGIQ E9 that combines the advantages of volume ultrasound with an advanced navigation system. Fusion, GPS and Needle Tracking capabilities can be used alone or in combination with any other Volume Navigation technology.

    hotspot tours-logiq e9-volume-nav.jpg
  • Volume Ultrasound

    Volume Ultrasound helps you achieve a thorough perspective. It allows you to acquire and construct volumetric images in real time, allowing you to evaluate the data in any plane to see anatomy in ways not seen traditionally. Multiplanar imaging, The C-plane, Tomographic Ultrasound Imaging (TUI) and Volume Calculation (VOCAL) allow the user to achieve a more comprehensive view of anatomy.

    hotspot tours-logiq e9-volume-ultrasound.jpg
hotspot tours-logiq e9-hotspottour-logiq-e9-easy-workflow.png
  • Modality Worklist

    Modality worklist enables the LOGIQ E9 to query patient demographics and study details from the facility''s imaging IT system. Modality Worklist retrieves patient information based on user defined criteria and can help reduce typographic errors and help streamline workflow.

    hotspot tours-logiq e9-modality-worklist.jpg
  • Query Retrieve

    Query Retrieve allows you to bring a previous exam onto the system and view it side-by-side with a real-time ultrasound image to help you quickly find an area of interest.

    hotspot tours-logiq e9-query-retrieve.jpg
  • Raw Data

    Raw data enables you to build a thorough exam while reducing scan time. This GE raw data format captures data earlier in the image processing chain enabling users to make changes to the data during or even after the exam has ended.

    hotspot tours-logiq e9-raw-data.jpg
  • Scan Assistant

    Scan Assistant knows the next step of a scan and helps you to get there more efficiently. Scan Assistant can significantly decrease keystrokes and shorten exam time by doing the little things for you.

    hotspot tours-logiq e9-scan-assistant.jpg
  • Superb Ergonomics

    LOGIQ E9 is designed with efficiency and ergonomics in mind. The intuitive keyboard provides 95% of keys used around the trackball. Motorized adjustments customize keyboard height to user preference. Touchscreen, large 19" monitor, swivel wheels and more make the system easy to use and easy on the user.

    hotspot tours-logiq e9-superb-ergonomics.jpg

Extraordinary Images

Extraordinary images every day.

The LOGIQ E9 with XDclear features advanced technology that gives you the ability to capture extraordinary images on routine to difficult exams. Innovative system architecture provides the foundation for its extraordinary capabilities.

Agile Acoustic Architecture
Agile Acoustic Architecture uses proprietary dynamic models of the human body to help you acquire images on a broad spectrum of patients with minimal system adjustments. LOGIQ E9 helps you:

  • Acquire images quickly and with less keystrokes.1
  • Obtain image uniformity from the near to far field.
  • Achieve deep penetration even on large patients.
  • Help increase exam efficiency.

XDclear transducer technology
XDclear transducers are GE's highest performing transducers featuring advancements in acoustic engineering to help increase penetration1 and deliver high definition resolution. This technology is available on the C1-6 and C2-9 transducers. XDclear transducers are a patented combination of these GE technologies:LOGIQ E9

  • Acoustic Amplifier Technology recycles previously wasted acoustic energy into the transducer's crystal, boosting sensitivity.1
  • Single Crystal Technology increases bandwidth, offering better signal-to-noise ratio and improved axial resolution.1
  • Cool Stack Technology is integrated into the transducer's internal architecture that relieves inherent heat generation that can otherwise reduce sensitivity and penetration.

Learn about XDclear technology.

B-Flow
There is a clinical challenge in using ultrasound to visualize blood flow and the depiction of the hemodynamic profile without unwanted signals from surrounding tissues. B-FlowTM, a GE imaging mode, uses non-Doppler technology to display true hemodynamics and enables direct visualization of blood flow without the limitations of Doppler.

1 All comparisons based upon GE conventional ultrasound versus GE ultrasound featuring the above referenced features.



EasyWorkflow

Enhanced workflow capabilities for your everyday.

The LOGIQ E9 has features designed to help enhance workflow, mobility, and convenience.

Compare Assistant helps clinicians perform ultrasound exams that involve comparisons to prior ultrasound or other modalities. With this feature, clinicians can view a prior study while conducting the current exam via a split screen on the ultrasound monitor.

Compare Assistant helps:

  • Enhance exam preparation
  • Replicate prior views
  • Standardize imaging protocols
  • Interpret with less pre-work, added confidence

Scan Assistant helps reduce keystrokes and performs tasks which can help free you to focus on your patient.

  • Initiates and auto-completes required measurements
  • Automatically steers Color Doppler
  • Sets up imaging controls and modes
  • Inserts comments
  • Automatically reorders images to your preference, independent of acquisition sequence.

A GE-commissioned study performed by an independent third party sonographer revealed a 79% reduction in keystrokes and 54% reduction in exam time.

Breast and Thyroid Productivity Packages  help clinicians label, measure, and describe anatomy quickly and with confidence – and generate DICOMTM SR-compatible summaries.

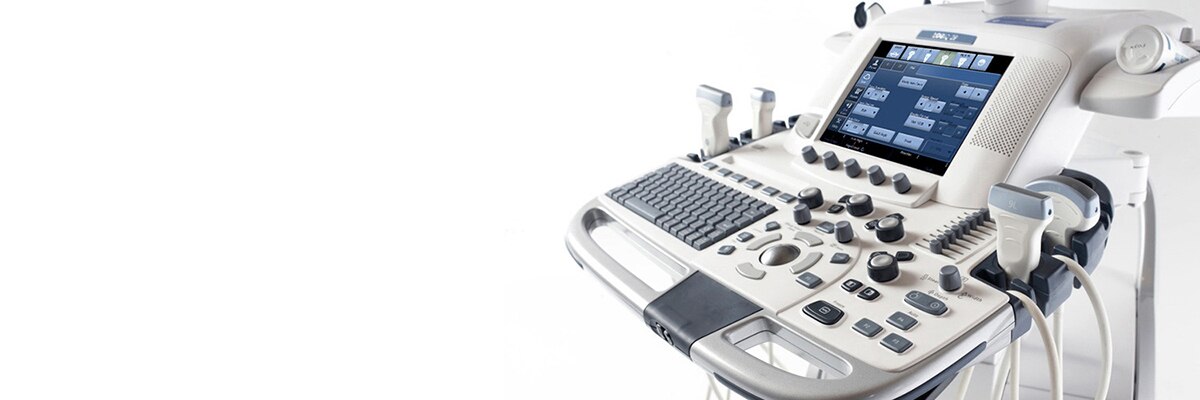

Ergonomics designed for you

The LOGIQ E9 is 20% smaller and 100 pounds lighter than our previous premium ultrasound systems, and offers remarkable mobility.

System design:

  • Highly intuitive user interface, button placements help reduce reaching
  • Full-sized, floating keyboard allows adjustment to personal preference
  • Customizable touch screen panel
  • Large monitor on an extended articulating monitor arm helps improve visibility and comfort during scanning.
  • Motorized adjustable height enables you to fit the system to your needs with the simple touch of a button.
  • Monitor tilts down to lessen obstruction while transporting the system.
  • Front and rear handles help make transport and maneuvering easy.
  • E-Series and XDclear transducers were designed with user input, featuring lighter materials, ridges for improved handling and proper grip, and flexible, lightweight cables.1



1. All comparisons based upon GE conventional ultrasound versus GE ultrasound featuring the above referenced features
DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information.

Expert Tools

Expert Tools.

The advanced technology of the LOGIQ E9 with XDclear was designed to offer extensive functionality beyond conventional ultrasound.1 The system provides an array of expert tools and technologies, including:

Shear Wave elastography provides a non–invasive, quantitative assessment of tissue stiffness in chronic liver disease and lesions in the liver, breast and small parts applications.

  • Color-coded elastogram and quantitative measurements
  • Dual or Single display option
  • Measurements in kPa or m/s
  • User selectable color maps
  • Adjustable color box and ROI depth and size

Volume Navigation technology combines multi-modality imaging with real-time ultrasound or previously acquired ultrasound exams. Volume Navigation is even easier with OmniTRAXTM active tracker which helps reduce registration time for CT/Ultrasound exams through auto-registration. Volume Navigation is even easier to use with new tools and accessories including new hardware, needle sizes, an active tracker and transducers with embedded V Nav sensors.2

Volume Navigation technology combines multi-modality imaging with real-time ultrasound or previously acquired ultrasound exams.



Fusion merges real-time ultrasound with CT, MR, PET or ultrasound images, enabling you to benefit from the strengths of each exam.

GPS helps enable you to visually track your position during a scan from different views, help guide biopsies efficiently and effectively, and simplify the counting of masses, lesions and nodules.

Needle Tracking helps you achieve a high level of accuracy for guided procedures by enhancing precision with a re-usable sensor that displays the exact position of the needle tip.

Additional Expert Tools

Auto-IMT (Intima Media Thickness) helps provide automatic edge detection for intima-media thickness measurements to help reduce the exam time while evaluating the carotid artery’s intima-media thickness.

Elastography helps evaluate tissue stiffness to obtain additional diagnostic information that can aid you in making patient management decisions.  Learn more about elastography.

Volume Ultrasound lets clinicians construct volumetric images in real-time and observe anatomy in any plane.

Multiplanar imaging allows you to view any plane individually or simultaneously with other orthogonal planes.

The C-plane allows you to display areas in an imaging plane parallel to the skin—ordinarily impossible using conventional 2D ultrasound.

Tomographic Ultrasound Imaging (TUI) enables volume data to be viewed in multiple slices, much like CT and MR.

Volume Calculation (VOCAL) helps you evaluate irregular structures by automatically calculating volumes based on automated or manual tracing of the structure.

Cardiac Tools

Tissue Velocity Imaging (TVI), a cardiac tool that measures the myocardial velocities longitudinally, evaluating systolic and diastolic function.

Tissue Velocity Doppler (TVD) measures segmental velocity of the myocardium longitudinally.

Q-Analysis plots the velocity information of discrete points for graphical analysis.



1. All comparisons based upon GE conventional ultrasound versus GE ultrasound featuring the above referenced features
2. Option only available with XDclear upgrade
