AngioViz facilitates understanding of vascular flow by displaying a DSA series in a single color-coded image of:
- Peak opacification: Shows the peak intensity reached by each pixel over time. Shows arterial and venous anatomy and flow together or separately.
- Time to peak: Displays the time at which each pixel reaches its peak intensity.

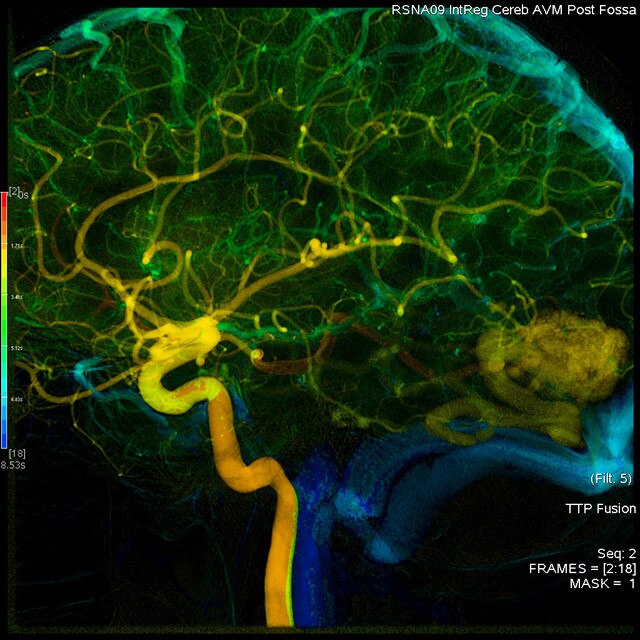

- Time to peak fusion: Combines time to peak and peak opacification parameters. Colors indicate time to peak; intensity indicates peak opacification. Demonstrates both vascular flow and opacification level in a single image.

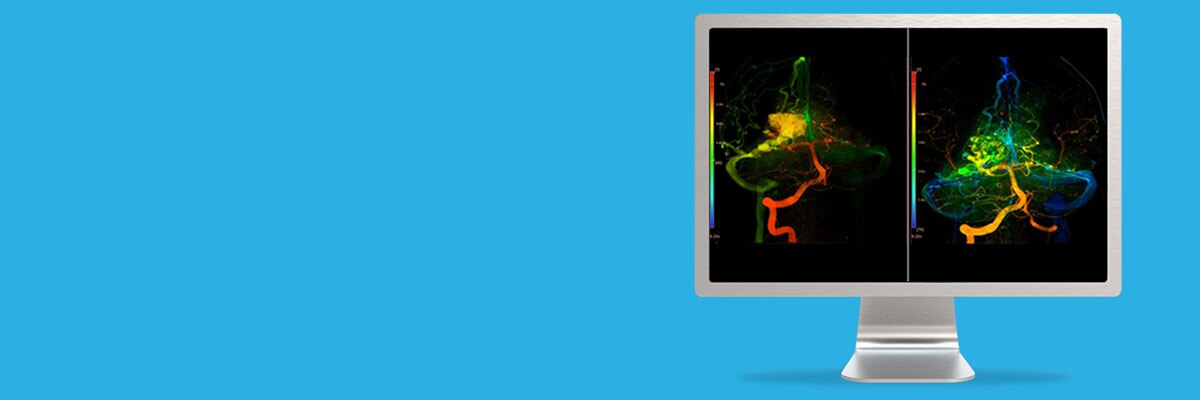

AngioViz automatically synchronizes different DAS series for flow comparison of pre- and post-interventional runs.
AngioViz’s intuitive interface lets you analyze complex flow patterns of several anatomical regions in a single click.
- AW VolumeShare 5 or higher
AngioViz is an application which produces from a DSA series parametric images representing maximum opacification, time to peak and combinations of those, to enable the user to more easily visualize characteristics related to vascular flow.
The AngioViz application can be used to process DSA image data from any location in the human body for which DSA imaging is used.
