Diagnostic ECG/MAC™ 5 Lite Resting ECG
delimiter
Diagnostic ECG/MAC™ 5 Lite Resting ECG
MAC 5 Lite Resting ECGPortable, lightweight MAC 5 Lite Resting ECG
MAC 5 Lite Resting ECG in use with patient
+4
MAC 5 Lite Resting ECG

MAC™ 5 Lite Resting ECG

  • Portable resting ECG machine with large, 8.9" touchscreen
  • Compact design with an integrated carrying handle. Does not include a printer
  • Smart Lead technology automatically detects when a lead has become disconnected
  • Industry-leading 12SL algorithm delivers precise measurements and accurate ECG waveform interpretations
  • MUSE™ cardiology information system integrates seamlessly with your systems and third-party devices for bidirectional HL7 and DICOM communication. May require a gateway
MAC 5 Lite Resting ECG with Self-Paced TrainingRequired
MAC 5 Lite Resting ECG with Self-Paced Training$4,550.00
MAC 5 Lite has all the same features of the MAC 5, excluding printer, streamlining your workflows so you can focus on delivering the best possible care. The base package includes: the MAC 5 Resting ECG, patient cable, lead wires with banana connectors, widemouth adapters, and self-paced training course. The MAC 5 Clinical User Learning (Online) provides self-paced clinical education access for a single MAC 5 user. This offering grants the student access to the online content for 12 months from the date of purchase.
MAC 5 Lite has all the same features of the MAC 5, excluding printer, streamlining your workflows so you can focus on delivering the best possible care. The base package includes: the MAC 5 Resting ECG, patient cable, lead wires with banana connectors, widemouth adapters, and self-paced training course. The MAC 5 Clinical User Learning (Online) provides self-paced clinical education access for a single MAC 5 user. This offering grants the student access to the online content for 12 months from the date of purchase.
Extended WarrantiesOptional
select up to 1
1 -Year Extended Warranty. Includes parts and labor
Extended warranty includes: expert GE HealthCare labor, on-site support for corrective repairs, 24x7 remote technical support with 40%+ faster response time for tech support for contract customers, full OEM parts coverage with free, next- day shipping and no purchase orders required for 1 year.
$340.00
2-Year Extended Warranty. Includes parts and labor
Extended warranty includes: expert GE HealthCare labor, on-site support for corrective repairs, 24x7 remote technical support with 40%+ faster response time for tech support for contract customers, full OEM parts coverage with free, next- day shipping and no purchase orders required for 2 years.
$644.00
AccessoriesOptional
select up to 5
Resting ECG TAB Electrode, Solid Gel, Adult, 500/Box
Adhesive-free peel-off aids that allow clean removal of the electrodes from the patient. Not made with rubber latex, DEHP, BPA, or phthalates. Bags are easy to open; resealable by folding after opening
$25.00
MAC 5 Lite Compact Trolley
A high-performance, mobile solution designed to enhance the functionality and portability of the MAC Resting ECG systems. Built for modern healthcare environments, this compact trolley offers exceptional convenience, durability, and ease of use, enabling efficient ECG workflows in clinical settings.
$400.00
Trolley Bottom Storage Bin
A thoughtfully designed accessory that enhances the functionality of the MAC 5 trolley. Built for efficiency and organization, this durable storage bin provides a convenient space for storing essential supplies and accessories
$100.00
Line Hook
A practical and durable accessory designed to improve the organization and efficiency of ECG workflows. Engineered to securely hold ECG lead wires, cables, and accessories. This line hook can streamline functionality in various clinical environments
$30.00
Simple Arm for Trolley
This simple arm provides a flexible mounting solution, allowing for seamless adjustment and positioning of ECG components during patient assessments
$60.00
TrainingOptional
select up to 3
Clinical eLearning Extra License (Self-paced, Online)
This self-paced online course provides clinical education for a single MAC 5 user (12-month access). Participants will learn key functions including hardware overview, acquisition and patient information screens, ECG recording, rhythm and full disclosure, and managing orders, files, and queues lists. The training includes interactive modules, access to 3D/Augmented Reality resources, and a knowledge check assessment.
$250.00
1-hour Clinical Applications Training (Instructor-Led, Remote)
This one-hour instructor-led remote training lab will cover the essential features and functions of the MAC 5, including its user-friendly interface, precise ECG acquisition, and secure data management. Participants will learn how to operate the device efficiently, ensuring accurate and reliable cardiac assessments with minimal training.
$250.00
4-hour Technical Service Training (Self-paced, Remote)
This four-hour self-paced technical training will cover hardware installation and system setup of the MAC5, as well as basic operation and configuration, network workflows including integration with MUSE systems, planned and corrective maintenance. Participants will learn how to perform essential setup procedures, navigate the MAC5 interface, configure network settings, and apply troubleshooting techniques to ensure optimal system performance.
$500.00
$4,550.00
Est. shipping: 09/23/2026|
Need help? Call us at (800) 558-7044
This purchase includes a self-paced training course. Please note that any accessories purchased with the MAC 5 Lite may lengthen the estimated shipping time.

What's in the box?

MAC 5 Lite Resting ECG

MAC 5 Lite Resting ECG

MaximizeIcon

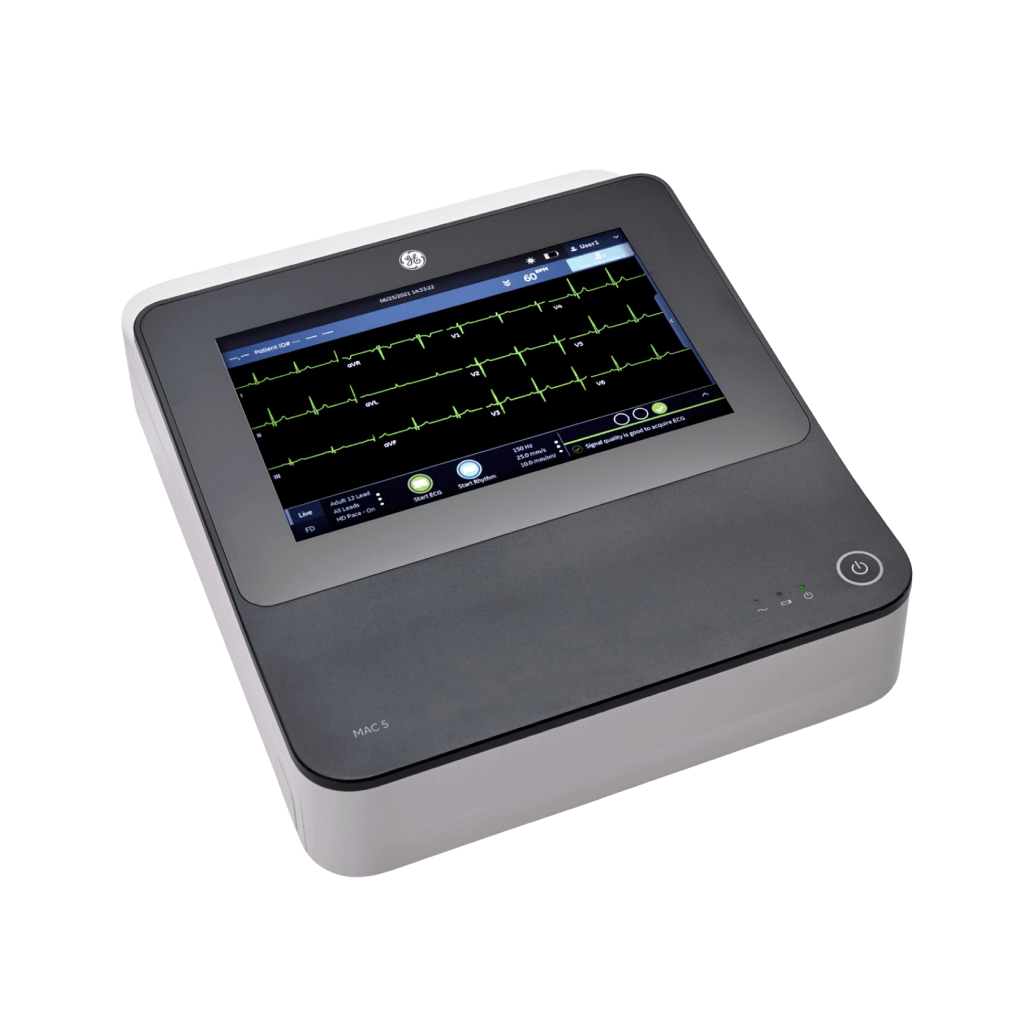

MAC 5 Lite Resting ECGZoom Icon

MAC 5 Lite Resting ECG

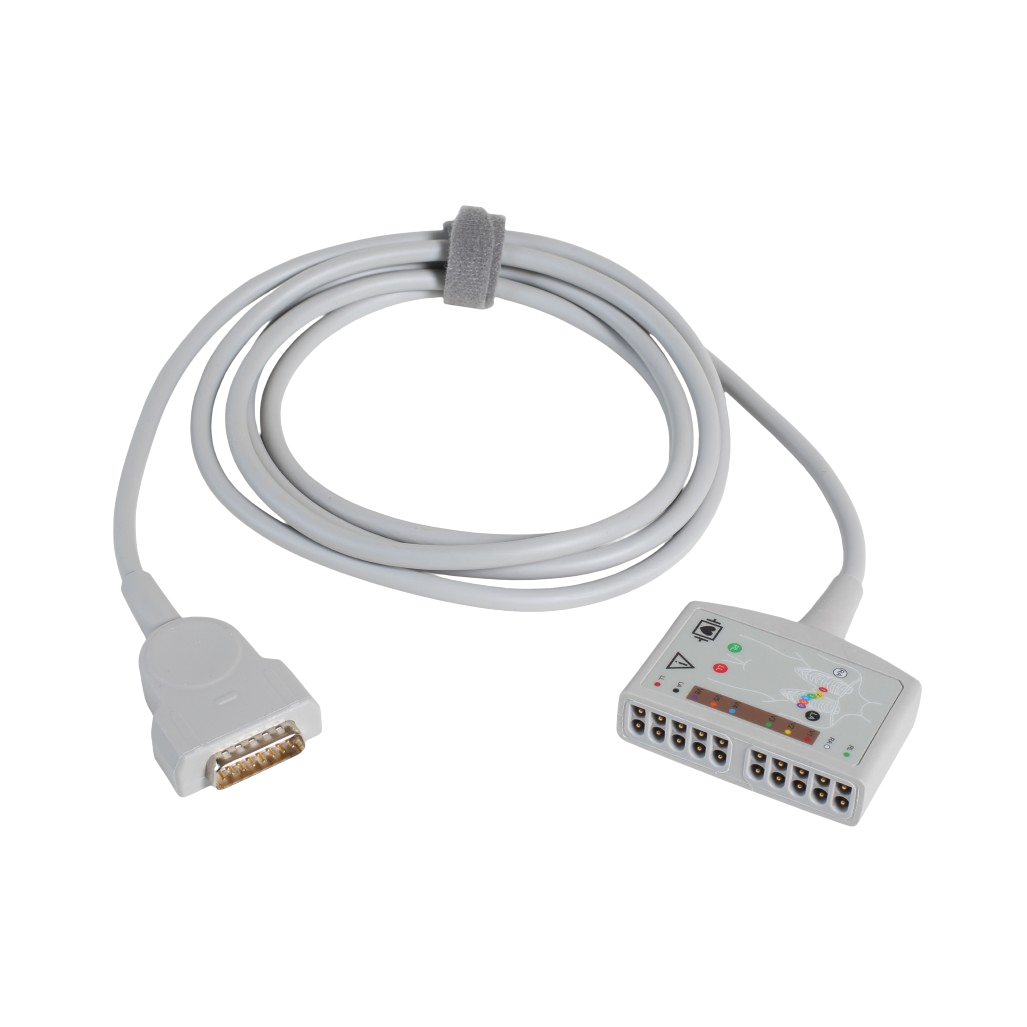

Patient CableZoom Icon

Patient Cable

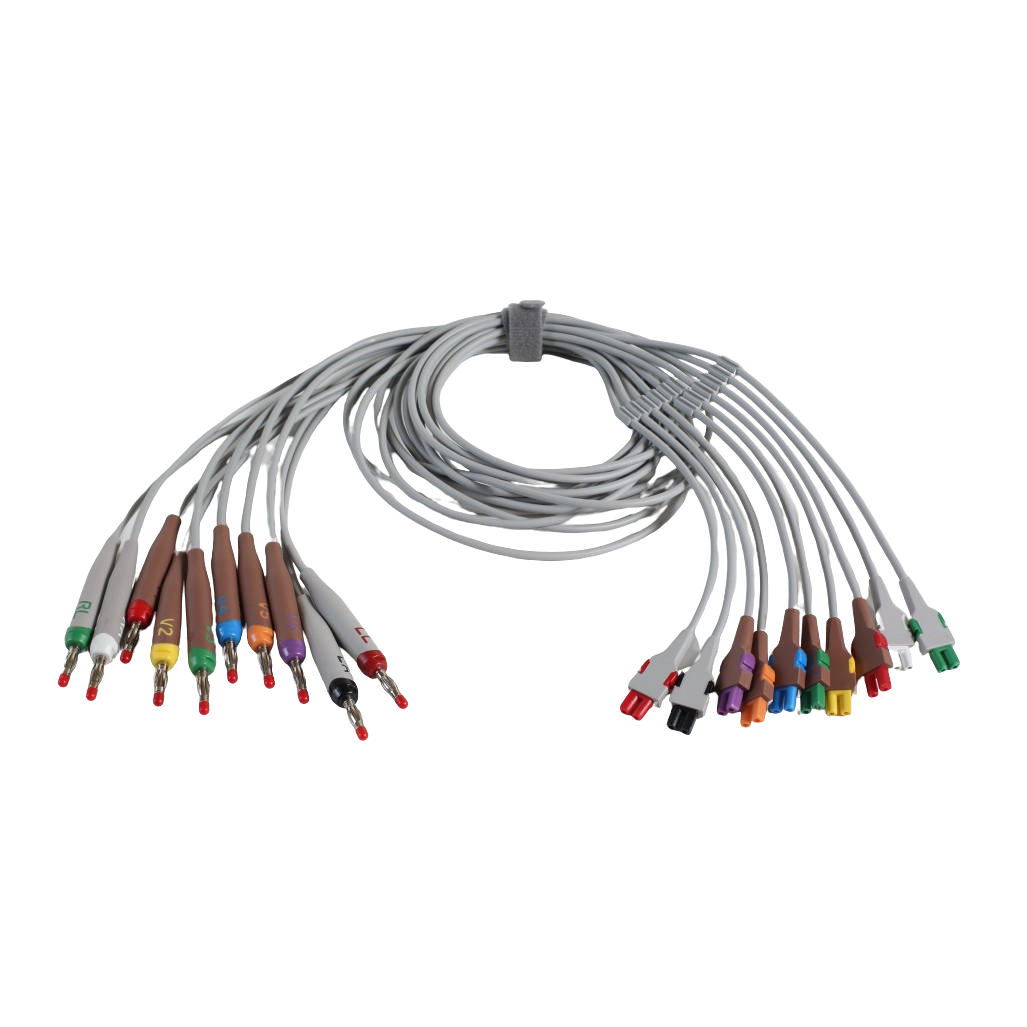

Leadwires with Banana ConnectorsZoom Icon

Leadwires with Banana Connectors

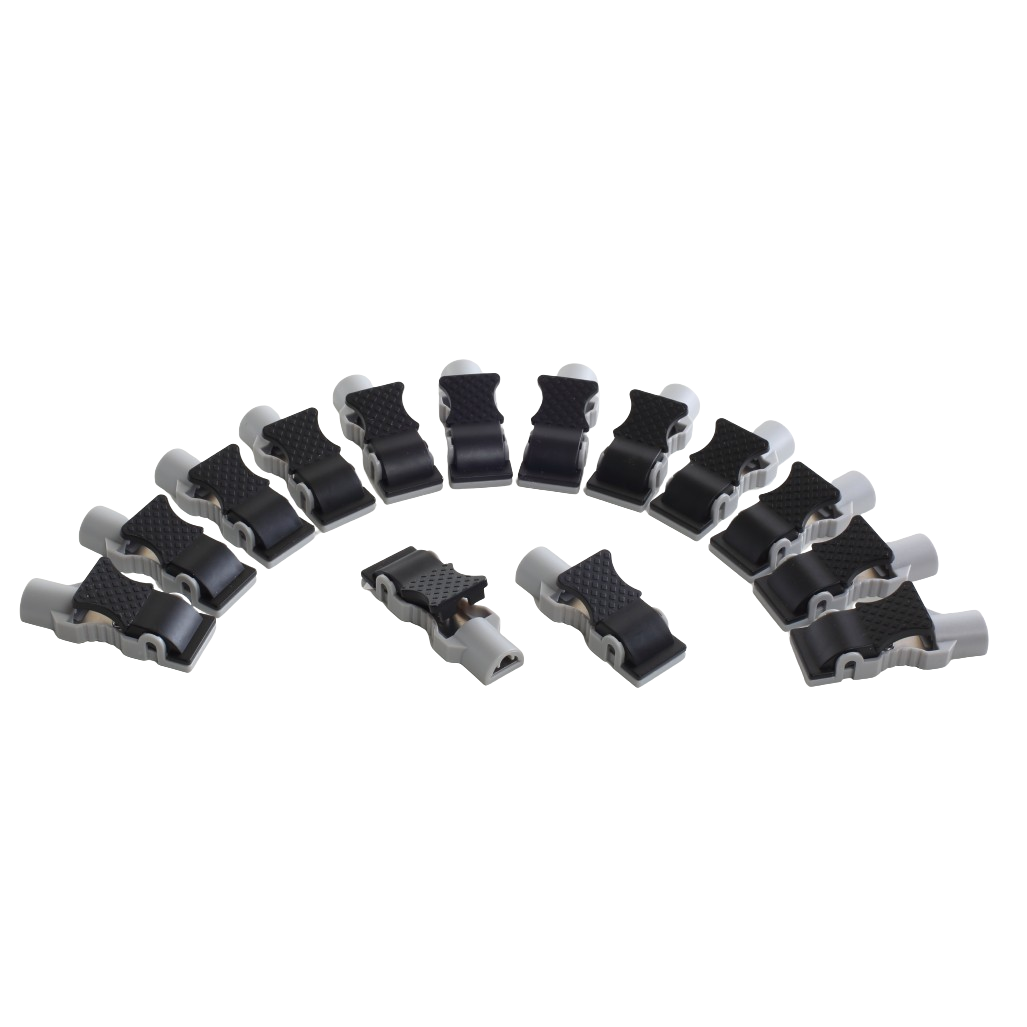

Widemouth AdaptersZoom Icon

Widemouth Adapters

Product Specifications

MaximizeIcon
Specifications
General Instrument Type
Microprocessor augmented automatic electrocardiograph; 10-lead wire acquisition with programmable lead configuration
ECG Interpretation
Marquette™ 12SL™ ECG analysis program for adults and pediatrics Computerized 12-lead analysis includes measurements
Heart Rate Meter
30 to 300 BPM ±10% or 5 BPM, whichever is greater — heart rates outside this range will not be displayed
ECG Data Formats
GE Hi-Fidelity ECG, XML
External Archiving
USB removable media
Pre-acquisition
Provides 10 seconds of instantaneous ECG acquisition
Digital Rhythm
Up to 5 minutes of continuous rhythm storage (exportable as a PDF)
Full Disclosure
Review up to 5 minutes of 12 Lead ECG, ability to select 10 second Resting ECG records, ability to generate 5 minute single lead full disclosure report
Storage
300 records consisting of 10 second Resting ECG and rhythm records; 200 minutes Digital Rhythm or Full Disclosure records
Dynamic Range
AC differential ± 10 mV DC offset ±600 mV Common mode >125 dB (>100 dB with AC filter disabled) rejection Input impedance >50MΩ @ 10 Hz Defibrillation Per IEC 60601-2-25:2011 protection Patient leakage <10 µA
Specifications for Digital Acquisition and Analysis of Waveforms
Analog to Digital Conversion
24-bit analog to digital conversion resolution Over sampled rate: 512 ksps Down sampled ECG Bandwidth: 0.04 to 300 Hz* waveform Sample rate: 2 ksps Resolution: 1.22 µV Input to 12SL Bandwidth: 0.04, 0.56 ZPD to 300 Hz* Sample rate: 1 ksps Resolution: 4.88 µV Additional report 20 Hz, 40 Hz, 100 Hz, 150 Hz or 300 Hz* filters
Specifications for Stored/Transmitted Waveforms
Digital Rhythm Waveform
Bandwidth: 0.04, 0.56 ZPD to 300 Hz* Sample rate: 1000 sps Resolution: 4.88 µV
12-lead ECG Waveform
Bandwidth: 0.04, 0.56 ZPD to 300 Hz* Sample rate: 500 and 1000 sps Resolution: 4.88 µV
Representative Complex
Sample rate: 500 and 1000 sps (median) Resolution: 4.88 µV
Pace Detection
Pacemaker Waveform
Sample rate: 75 ksps Duration: 0.2 ms to 2.1 ms Amplitude: 2 mV to 700 mV Separation: 1 ms or greater Pace annotation: Dedicated pace channel on display and printed reports (configurable)
Communications
ECG Management Systems Connectivity
MUSE™ Cardiology Information System compatible (v8 or later)
DICOM Modality Worklist/Orders
Supported via GE HealthCare MUSE (v8 or higher) and DICOM Gateway with bi-directional orders support
EMR Connectivity
Via MUSE cardiology information system (v8 or later) with EMR Gateway
Data export
Export of Resting ECG (in PDF or XML format), Digital Rhythm and Full Disclosure reports (in PDF format) over SFTP or to a Shared folder
Wireless
802.11 a/b/g/n wireless connectivity (2.4 GHz/5GHz)
Network Connectivity
802.3 Ethernet interface via RJ45 connector
Display
Display Characteristics
8.9” diagonal, LED backlit, 892 x 558 pixels resolution Projected Capacitive (PCAP) multipoint touch input that works while wearing medical exam gloves Display data Heart rate, patient name, patient ID, date, clock, battery power indicator, scrolling waveforms, lead labels, speed, gain and filter settings, warning messages, prompts, hookup advisor and help messages
Writer
Network Printer Support
Support printing to network printer
Electrical
Power Supply
AC mains or battery operation Input voltage 100-240 VAC + 10% Input frequency 50-60 Hz + 3 Hz
Battery Type
Replaceable and rechargeable internal battery
Battery Capacity
Minimum 180 minutes with acquiring and printing a single page ECG report every 15 mins (with five minutes auto standby enabled and all accessories connected, except KISS)
Battery Charge Time
Approximately 240 minutes from total discharge when device is off or standby
Security and Privacy
Encryption
All files containing PHI, local users and passwords
Login Authentication
Network: LDAP/Active directory Local: User database
User Management
Customizable roles for limiting system access by user groups for Admin, Clinical, Service, Biomed, and user defined up to 10 customized roles
Audit Trail
All user logins, logouts and login failures, file deletions, file changes, file views, file acquisitions, file transmissions, file printouts, system configuration changes
PHI Access
Controlled by customizable roles with configurable advanced strict PHI access rules
Emergency Access (STAT Mode)
Allows access without login credentials for emergency tasks
USB Lockout
Software controls to disable USB ports/connections
Physical Specifications
Weight and Dimensions
Max weight 2.3 kg, max height 95 mm, max width 320 mm, max length 270mm
Environmental Specifications
Operating temperature: 50° to 104° F (10° to 40° C) Transport/Storage temperature: –4° to 140° F (–20° to 60° C) Operating humidity: 20% to 95% RH non-condensing Transport/Storage humidity: 15% to 95% RH non-condensing Operating pressure: 70 to 106 kPa Transport/Storage pressure: 50 to 106 kPa
Input Devices
Keyboard
Touch keyboard
Touchscreen
8.9”, 892 x 558 pixels projected Capacitive (PCAP) multipoint touch input
Barcode
External barcode scanner (optional)
Mouse
Supported but not included
Cleaning
Approved Cleaning Agents
Soap and water solution, Sodium hypochlorite (NaOCl) 5% solution, Ethanol (ethyl alcohol) 96% (v/v), Isopropyl alcohol 70% (m/m), Hydrogen peroxide 20% (v/v), Phenol 2% (V/V), FDA cleaning agent Super Sani-Cloths
Certification
Certification Marks
cTUVus
Standards Complied With
EN 60601-1:2006/A1:2013, EN 60601-1-2:2007 +AC 2010, EN 60601-1-2:2015, EN 60601-2-25:2015, IEC 62366-1:2015, EN 62304:2006+A1:2015
Ordering Information
Available User Interface Languages
Chinese, Danish, Dutch, English, French, Finnish, German, Italian, Norwegian, Swedish, Korean, Japanese, Russian, Spanish, Portuguese, Brazilian Portuguese, Polish

Specifications

Specifications for Digital Acquisition and Analysis of Waveforms

Specifications for Stored/Transmitted Waveforms

Pace Detection

Communications

Display

Writer

Electrical

Security and Privacy

Physical Specifications

Input Devices

Cleaning

Certification

Ordering Information

MaximizeIcon

Warranty promise

The MAC 5 Lite includes a 3-year warranty. During this period, if a repair is needed, services will be performed at the GE HealthCare Repair Operations Center. Phone support is available Monday through Friday, from 7am to 5pm CST, at 800-558-7044.
