Definium™ Pace Select ST

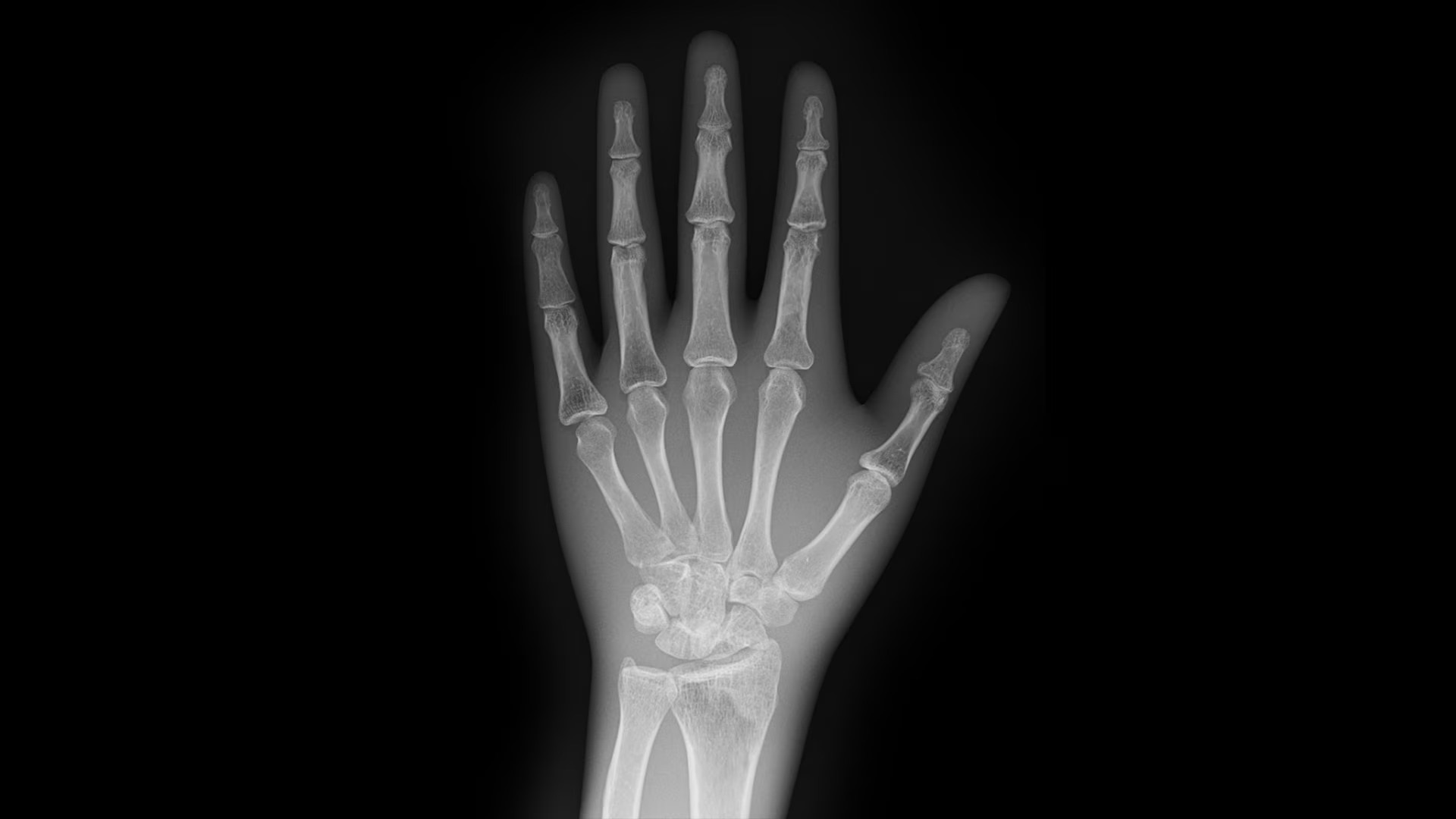

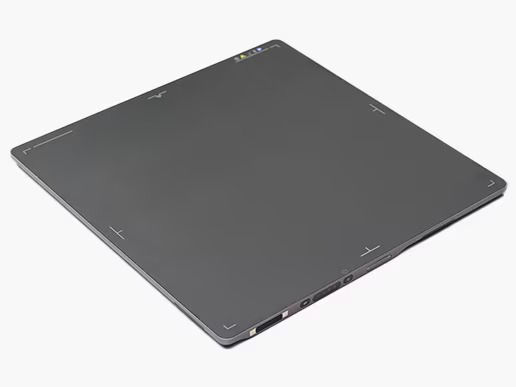

At 100 micron pixels, the FlashPad Select detector provides 4x higher resolution than 200 micron pixel detectors, helping to distinguish fine structures.

• Exceptional dose efficiency with 73.4% DQE at 0 lp/mm.
• Large size: 17 x 17 inch (43 x 43 cm) for excellent patient coverage.
• Automatically connects wirelessly to registered systems with automatic channel switching to improve image transfer and avoid wireless interference.

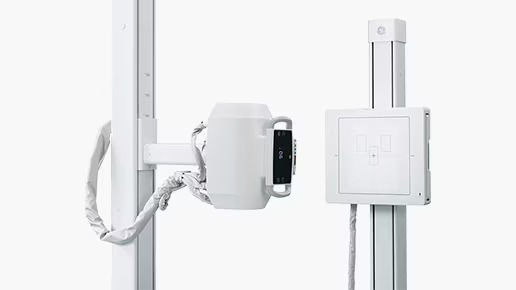

The power of the X-ray generator determines how well the X-rays can penetrate the object to be imaged. Objects that are denser need a higher power X-ray generator so X-rays can penetrate through those objects. Without enough power image quality will be degraded. Definium Pace Select ST offers a generator with 50kW or 65kW nominal output and a tube heat dissipation capacity of 667 HU/s to meet your needs.

• AI-driven Automated Brightness and Contrast (AIBC) delivers improved consistency despite variations in exposure technique and challenging conditions.
• Detail Preserving Noise Reduction Filter (DPNR) delivers significant noise reduction, while minimizing the effect on fine details.

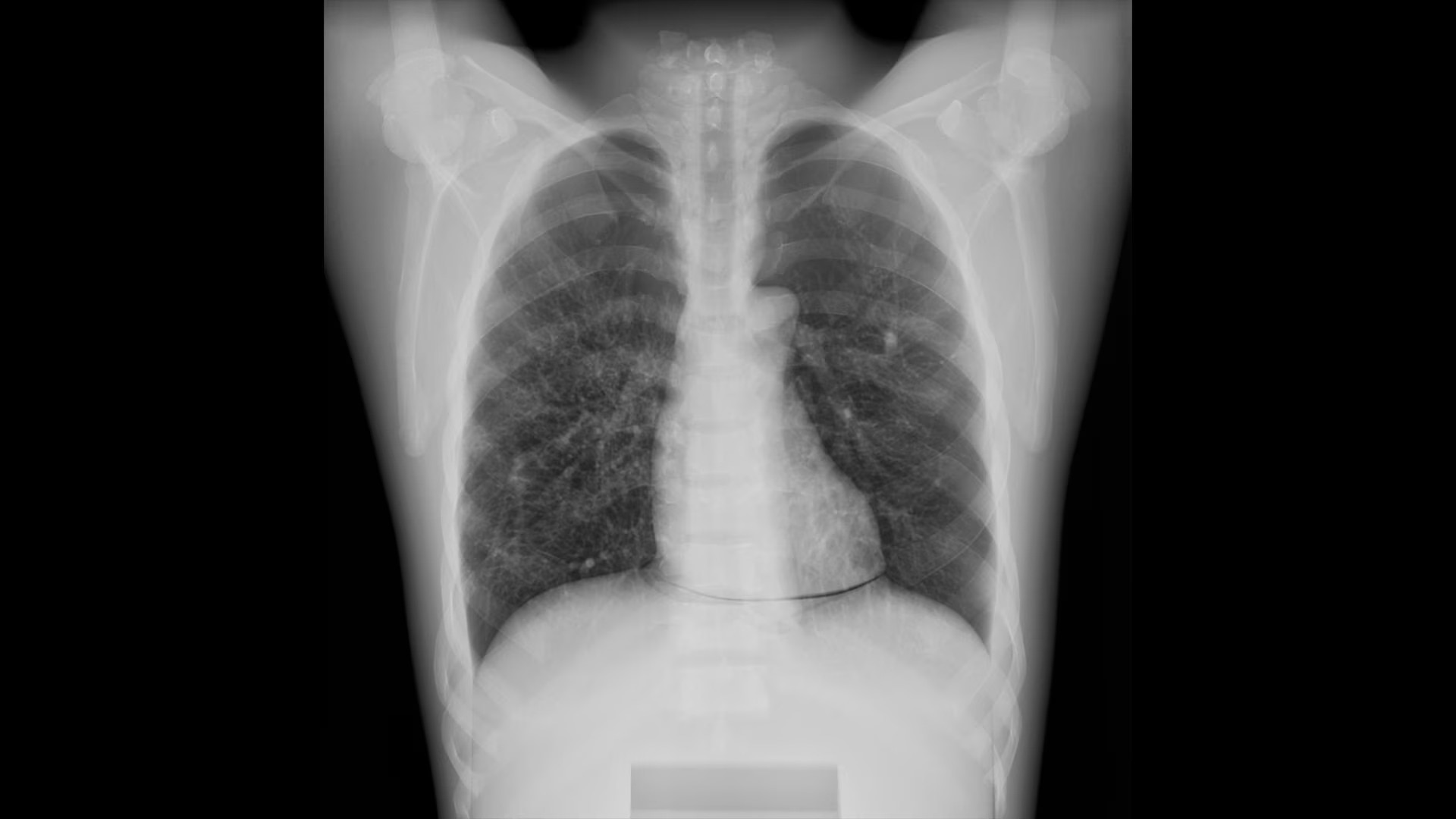

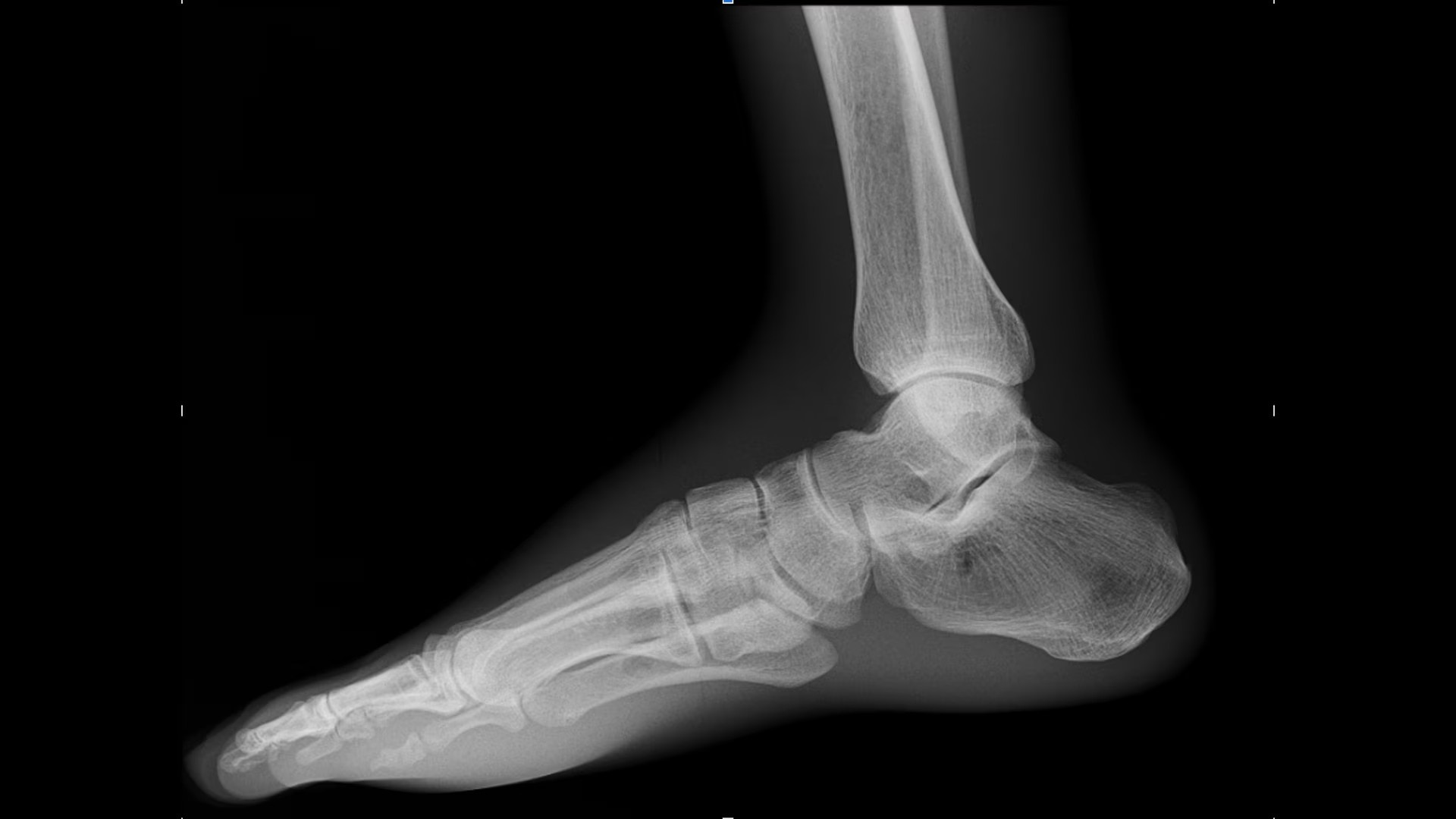

• Local Contrast Enhancement (LCE) delivers improved contrast for chest, ankle joint, foot, and patella images.

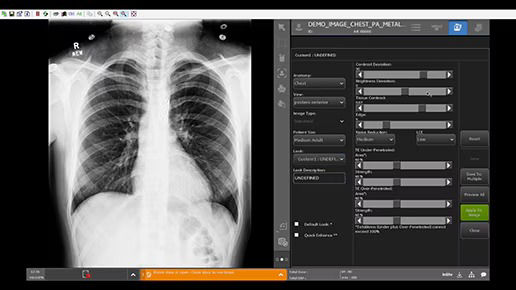

• Real-time IP Looks – Allows for faster and easier fine-tuned customizations. Custom IP Looks can be set as the default look, or the look achieved with the QuickEnhance tool.
• IQ Compare – Allows for simultaneous viewing of the standard and customized looks to simplify comparisons between the different options.
• QuickEnhance – Provides one-touch reprocessing of images with a custom look.

• No manual selection of imaging protocol. The system automatically sets exposure factors for the technologist.
• Uses the best exposure factors to get the highest quality image and helps keep image quality consistent between different patients and different technologists by consistently using appropriate exposure factors.
• Reduces the physical and mental workload with fewer buttons to push.

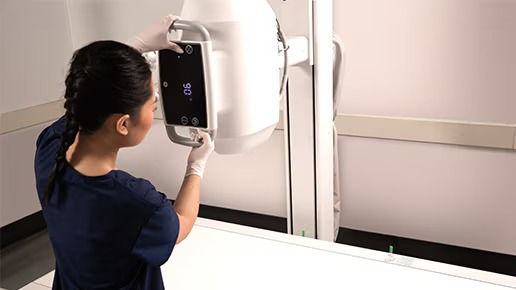

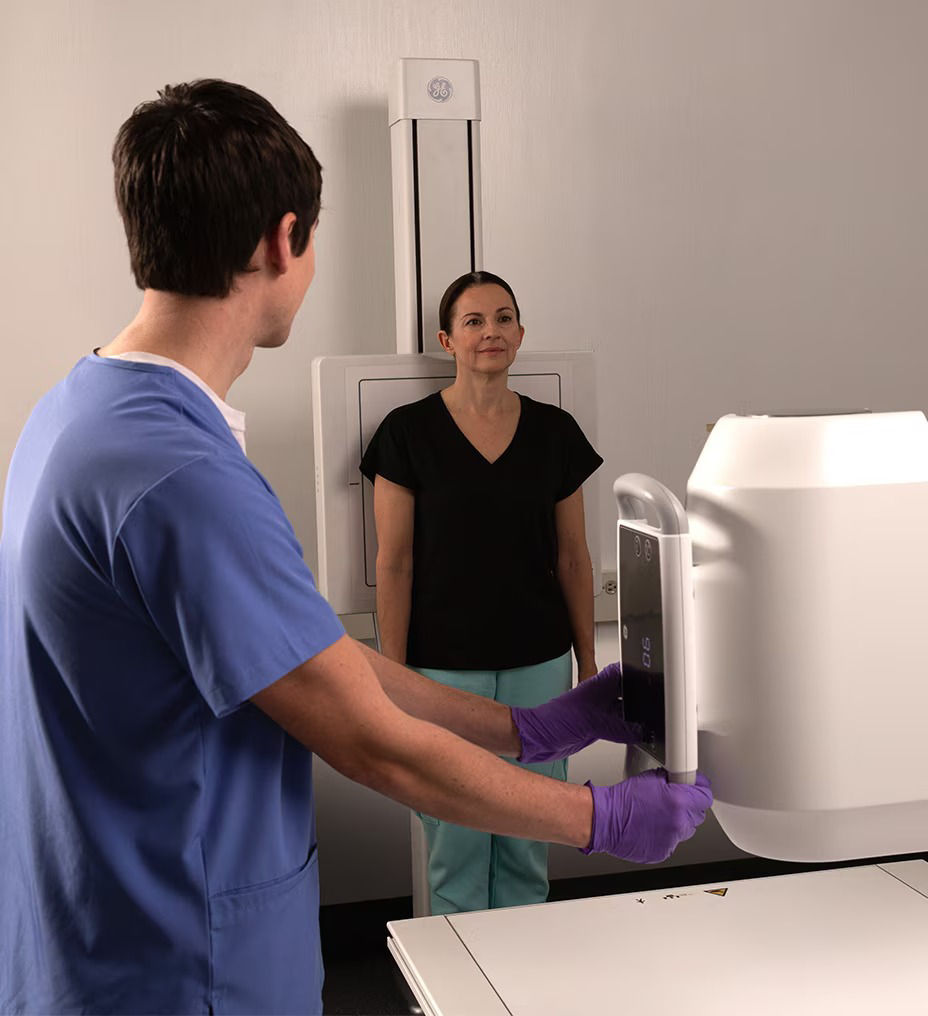

The following visual indicators assist the technologist to get the imaging conditions to match those required by the protocol.

• SID indication on tube stand column to show SID with table receptor.
• Two indicators of 180 cm and 150 cm SID to facilitate position with wall stand receptor.

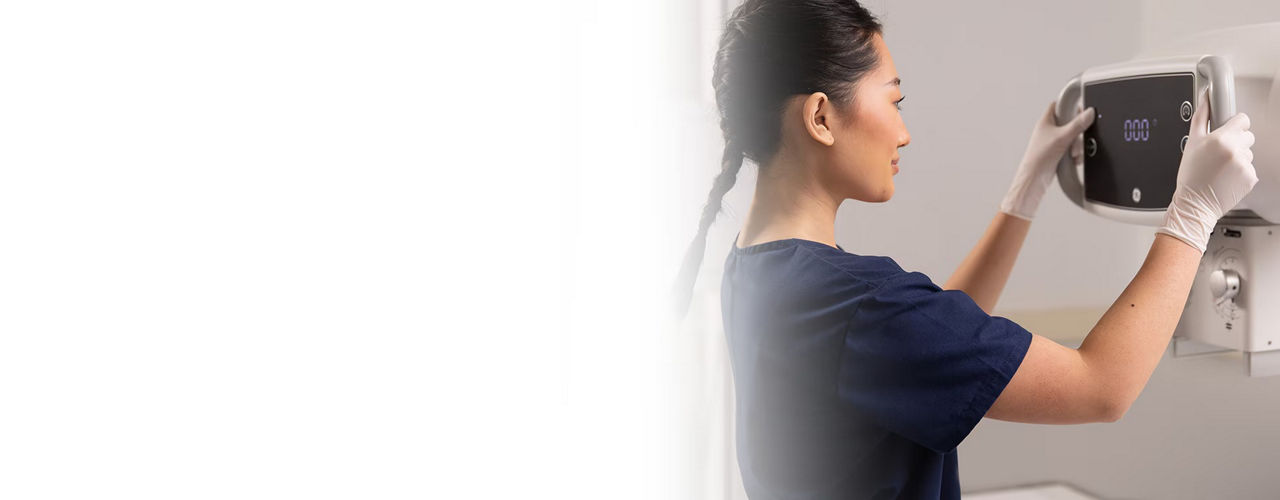

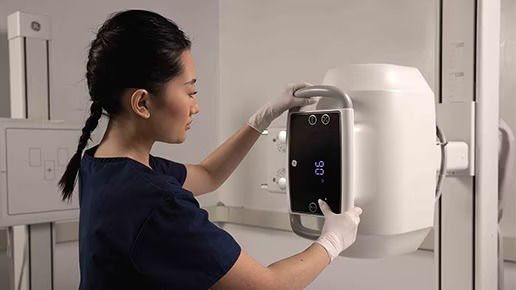

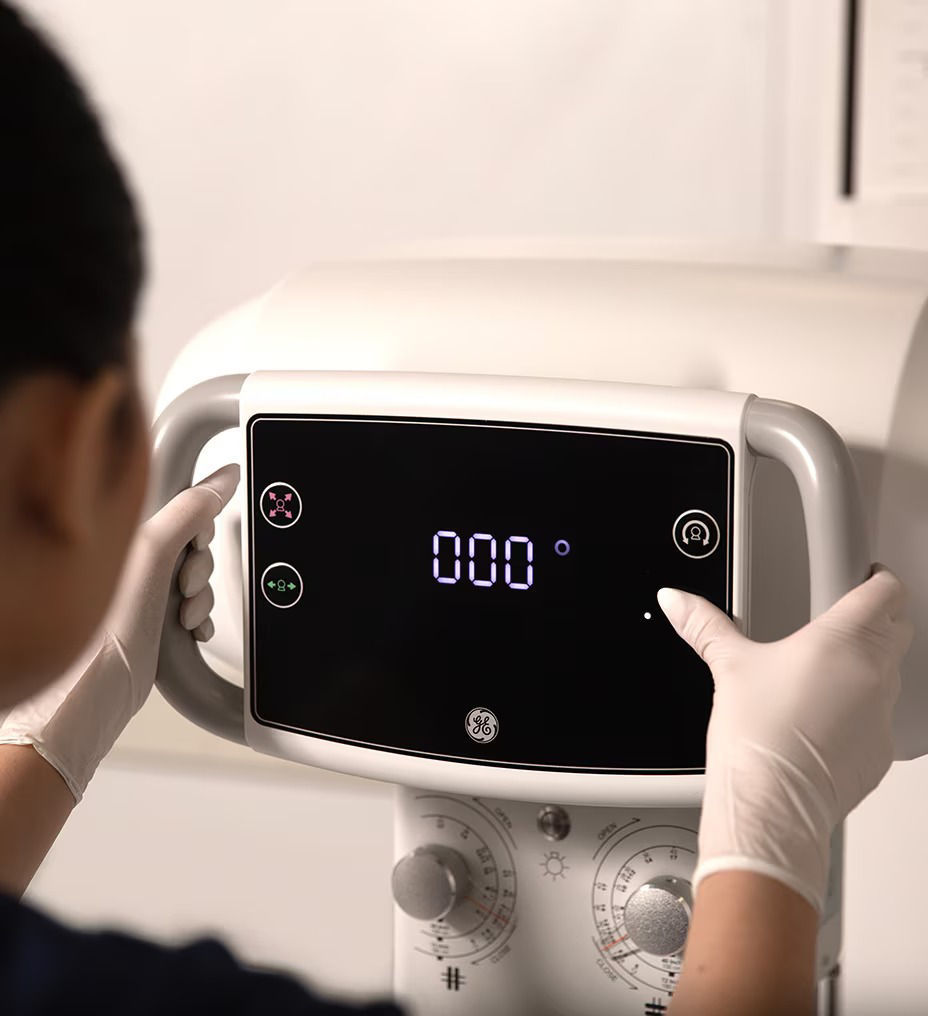

• A digital angle display on the tube head console to show the angle of the tube.

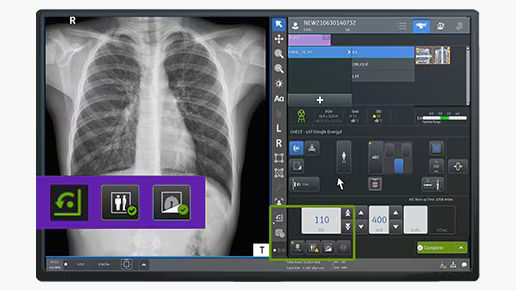

• Intelligent Auto Rotate – Automatically rotates images that are hung the wrong way.
• Intelligent Protocol Check – Conducts an automated quality check to detect errors on the acquisition system, such as improper protocol used.
• Intelligent Field of View – Detects when a lung field is clipped in a frontal chest X-ray and allows technologists to determine if a repeat is required before sending the image to PACS.

The complete system is tested to safeguard seamless operation of all software and hardware components together.

• Individual component testing – Components are tested for structural stability and operational functionality under demanding conditions that exceed weight, force, and repetitive operational requirements that the equipment would face over the expected product lifetime.

We are committed to safeguarding Protected Health Information (PHI) and Personal Information (PI) on medical devices by helping provide barriers to unauthorized access with multiple levels of protection:

• System protection: Antivirus and intrusion detection
• Information protection
• Audit logging
• Identification and authentication

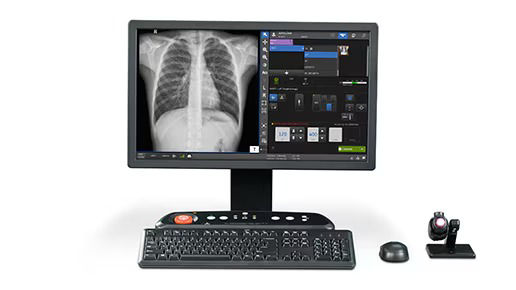

Drawing on decades of research, commercial development, user testing and feedback, the Definium Pace Select ST uses the same user interface design as other GE HealthCare fixed OTS and mobile X-ray systems. Proven to be easy to learn and use, our UI allows for quick setup and helps technologists easily move between different GE HealthCare X-rays systems.

Our digital solutions provide data-driven insights to increase asset availability, expedite repairs, ensure compliance, optimize utilization and reduce operating costs. Our network includes:

• 8,000+ service engineers
• 1,200 applications specialists
• 6,000+ spare parts shipped daily
