Carestation™ 650 Anesthesia Delivery System

At a glance

Sleek integrated design

Slim, compact frame designed for constrained environments.

Simple user interface

Checks a range of conditions each time the unit is turned on

Scalable tools and technology

Versatile for diverse patient acuities

Elegantly engineered and appointed with ergonomic touches and software driven time-savers, the Carestation 600 series can help enhance workflows, optimize precious OR time and help hospitals bend the cost curve.

Easy to use and economical to operate, the Carestation 650 is a hybrid of digital technology and classic performance that puts affordable innovation within reach.

Download brochure

Features

High touch precision. Low flow performance.

Ensuring quick patient response to changes in fresh gas and anesthetic agent may positively impact anesthetic costs and improve induction and emergence - optimizing time in the OR.

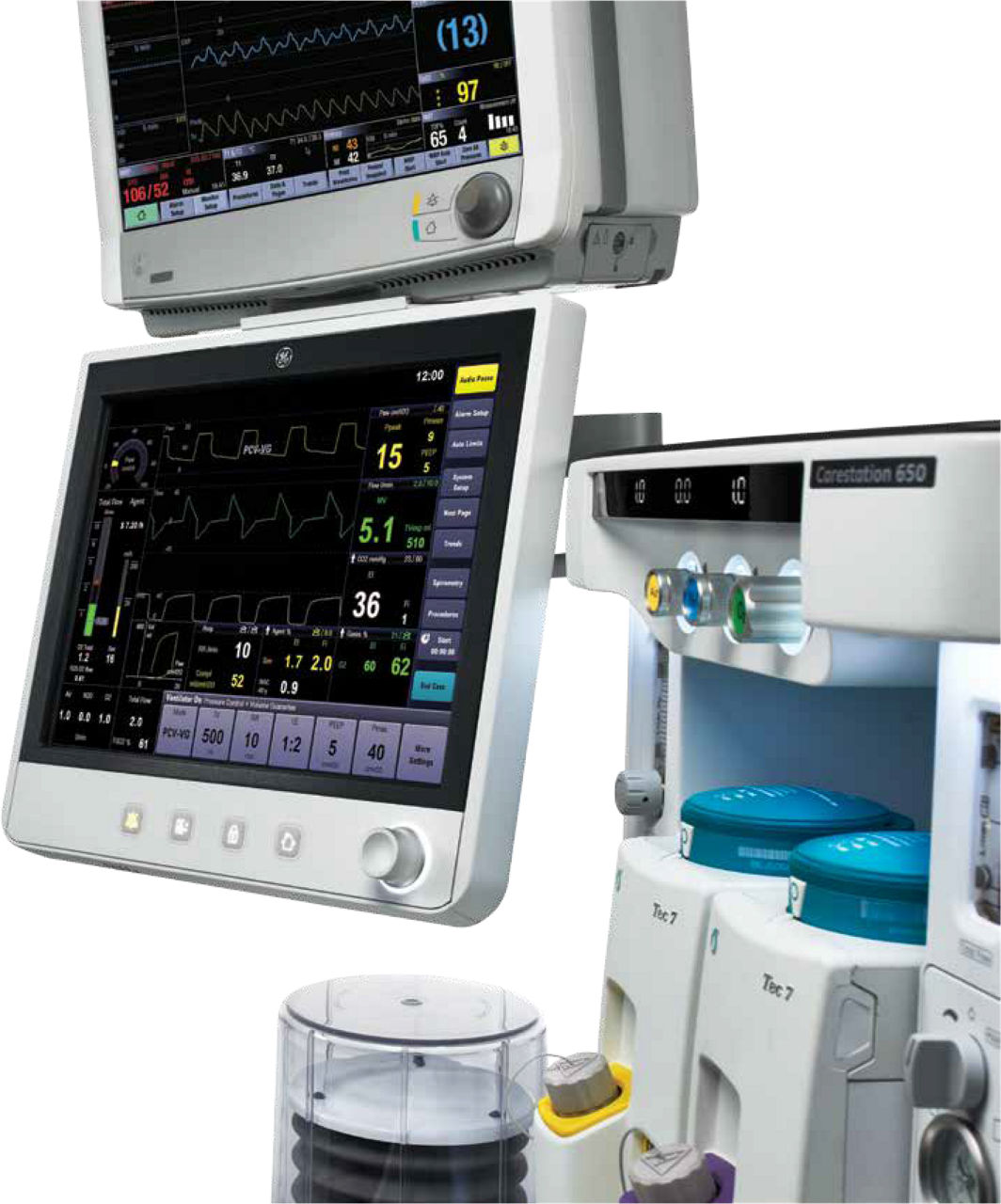

Classic GE HealthCare performance and an intuitively familiar user experience

• Small footprint: mobility & rugged durability
• Intuitive flat menu UI & ergonomic touches
• Advanced ventilation & automated procedures¹
• ecoFLOW Option & Pause Gas Control¹
• Easy disassembly & cleaning

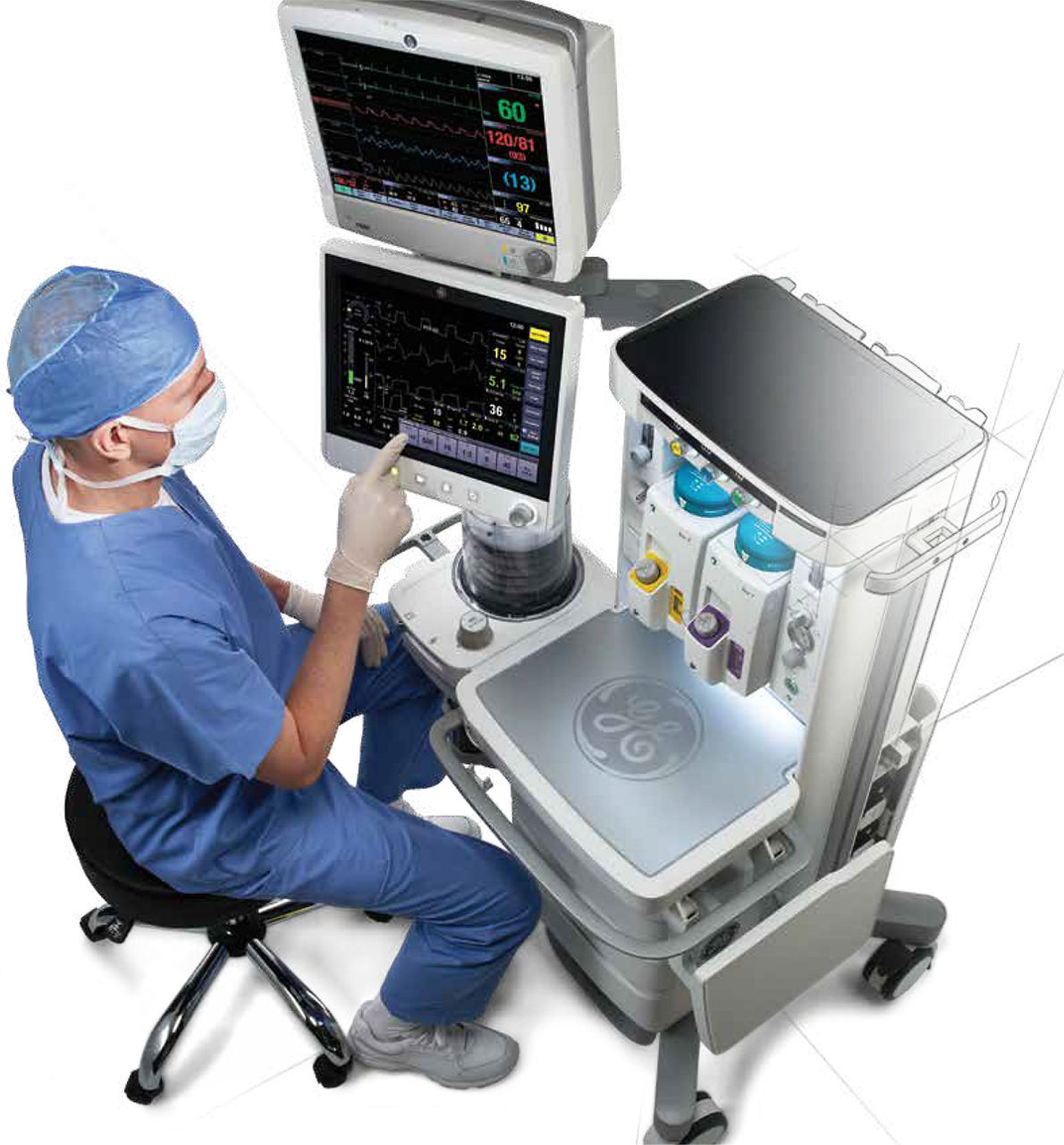

Advanced Procedures

Vital Capacity & Cycling Procedures:

Automated bag squeeze and adjustable PEEP sustain open lung ²,³
Clinician-configured ventilation with programmable PEEP levels

Uncompromised Ventilation – Pediatric to Adult Low Tidal Volume Delivery:

Tidal Volumes as low as 5 ml to the patient1
Sampling flow down to 120 ml/min
Lung Capacity and FRC
Compliance Measurement and Spirometry
Smart Agent Settings Design
Circuit Compliance Compensation ensures that what you set is what you get, precisely showing what is delivered to the patient and taking into account volume in the patient circuit.
Monitors and responds to changes in the patient’s airway pressure or respiratory efforts up to 250 times per second.
Precision volume and pressure delivery to the patient Y-piece, breath by breath, help reduce the challenges in managing pediatric patients.

carestation-650-sticky-advanced-procedures-ci-en

Clincal Images

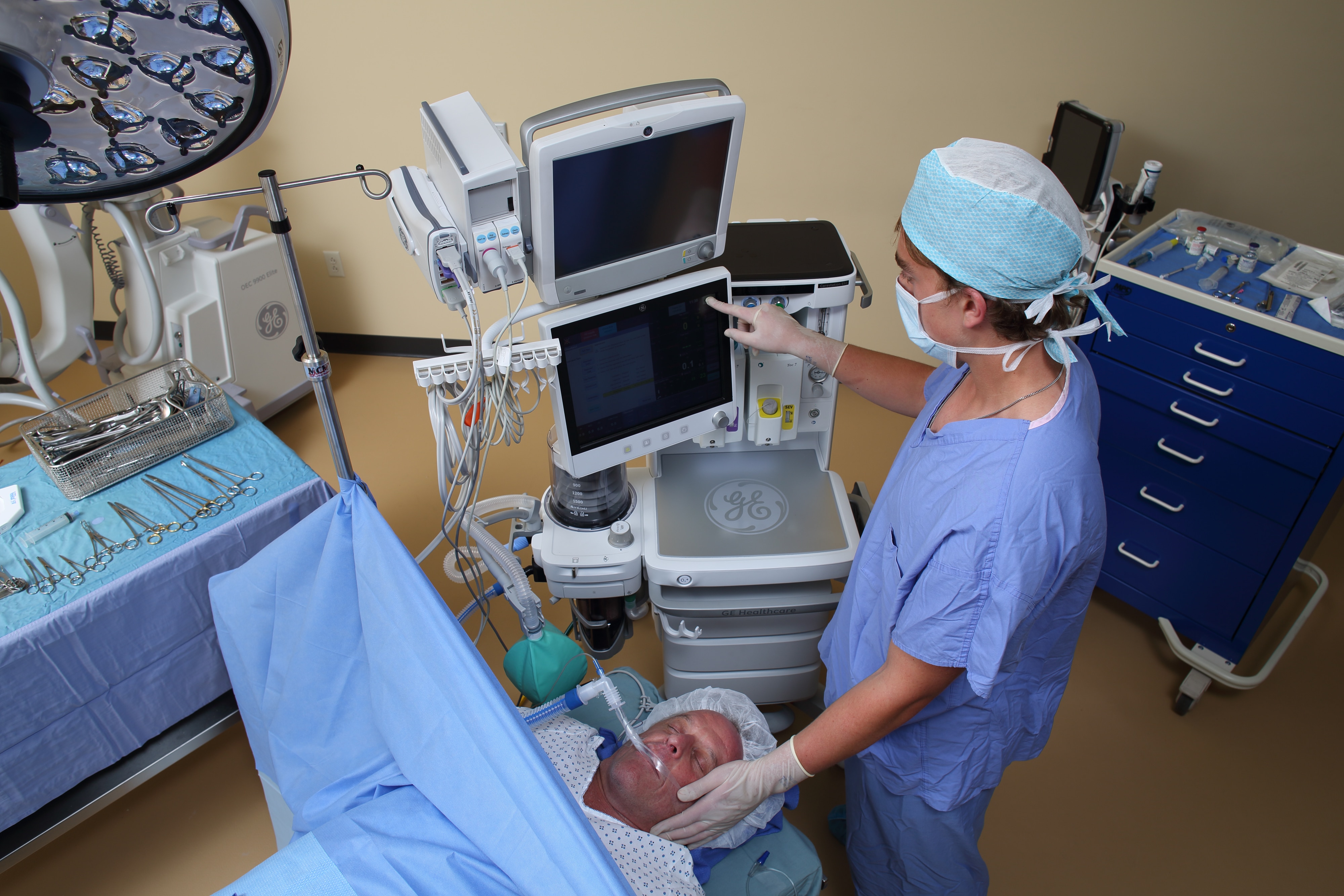

The Carestation 600 Series is a compact, versatile, and easy to use anesthesia platform

Elegantly engineered and appointed with ergonomic touches and software driven time-savers, the Carestation 600 series can help enhance workflows, optimize precious OR time and help hospitals bend the cost curve.

Introducing Carestation 600 Series

Compact, integrated airway gas modules for low sample flow and a service friendly modular technical design

CARESCAPE Modular Respiratory Monitoring

Designed with modular components for ease of use, long service life for low cost of ownership

Service friendly design

Efficient clinical workspace with accessible touchpoints for close patient care.

Controls within reach

Modern, compact design, with intuitive CARESCAPE* inspired interface, for clinical efficiency in tight spaces.

Sleek design

Intuitive interface with quick access to common procedures supports fast, individualized care delivery.

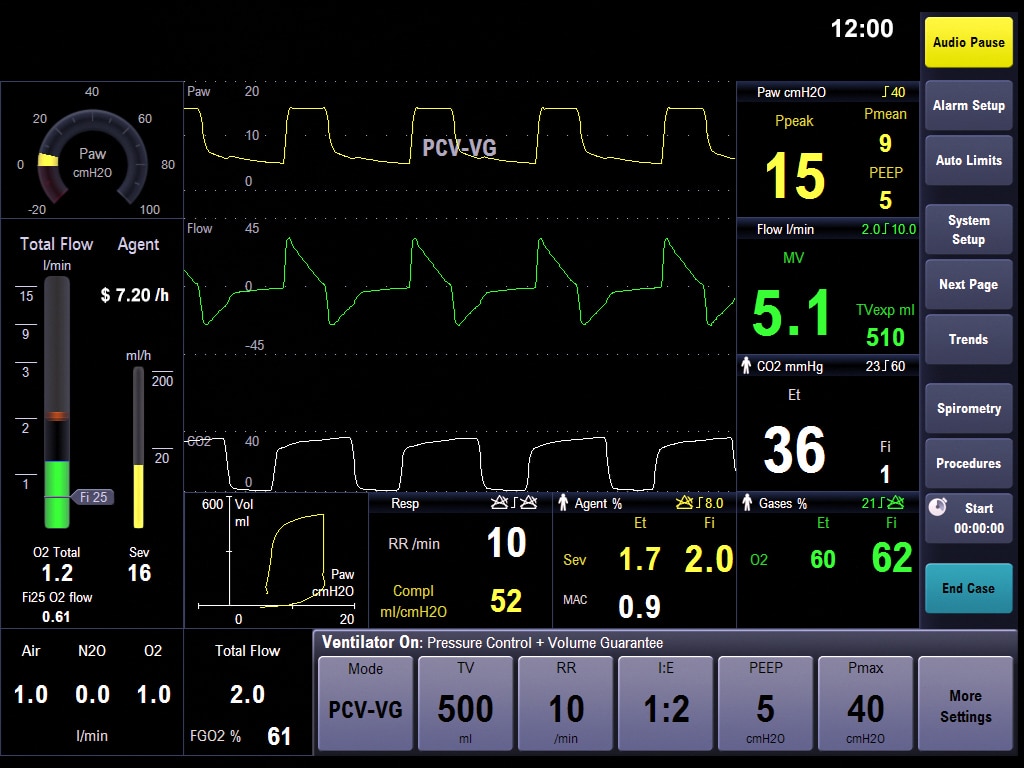

15" Touchscreen

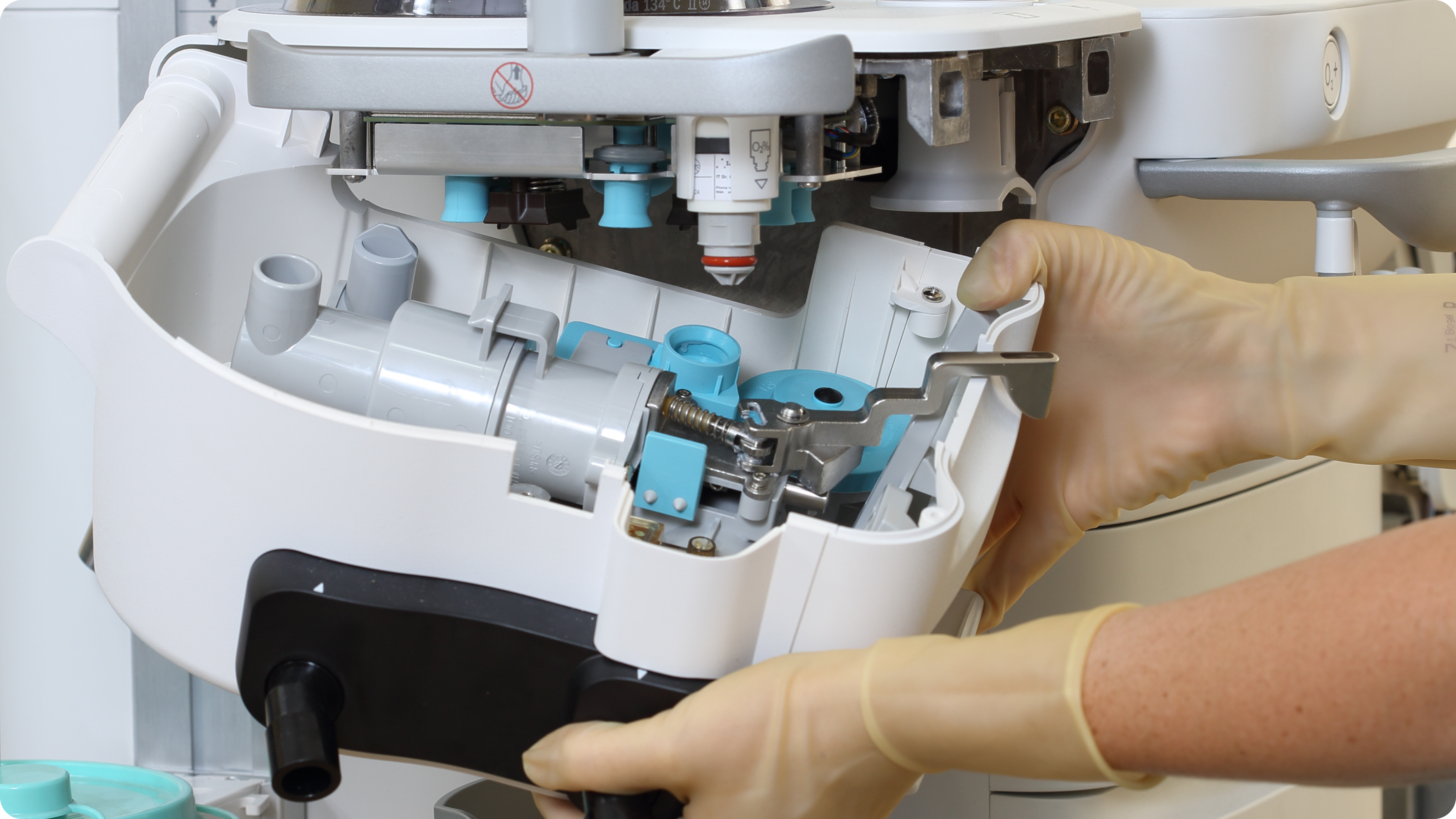

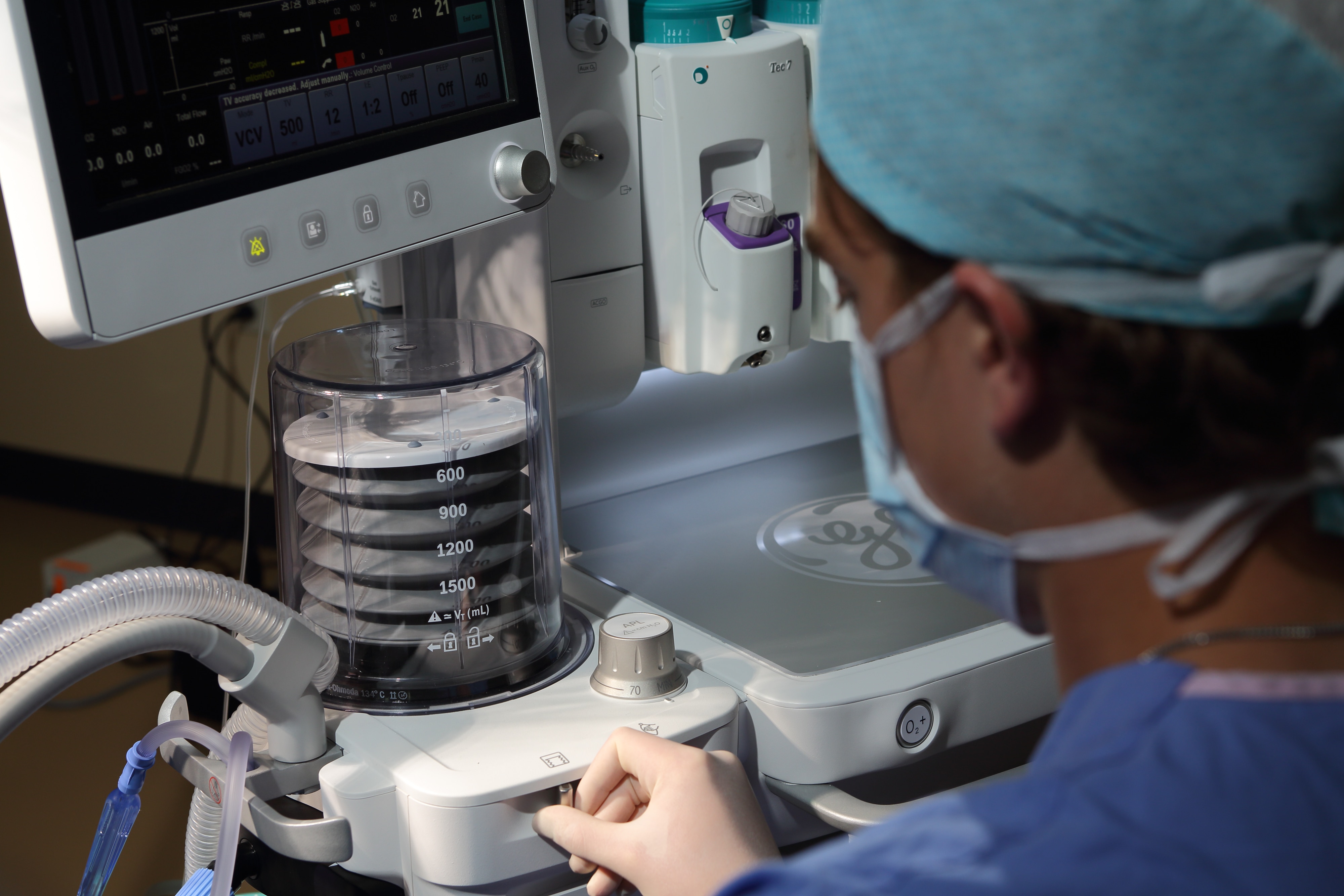

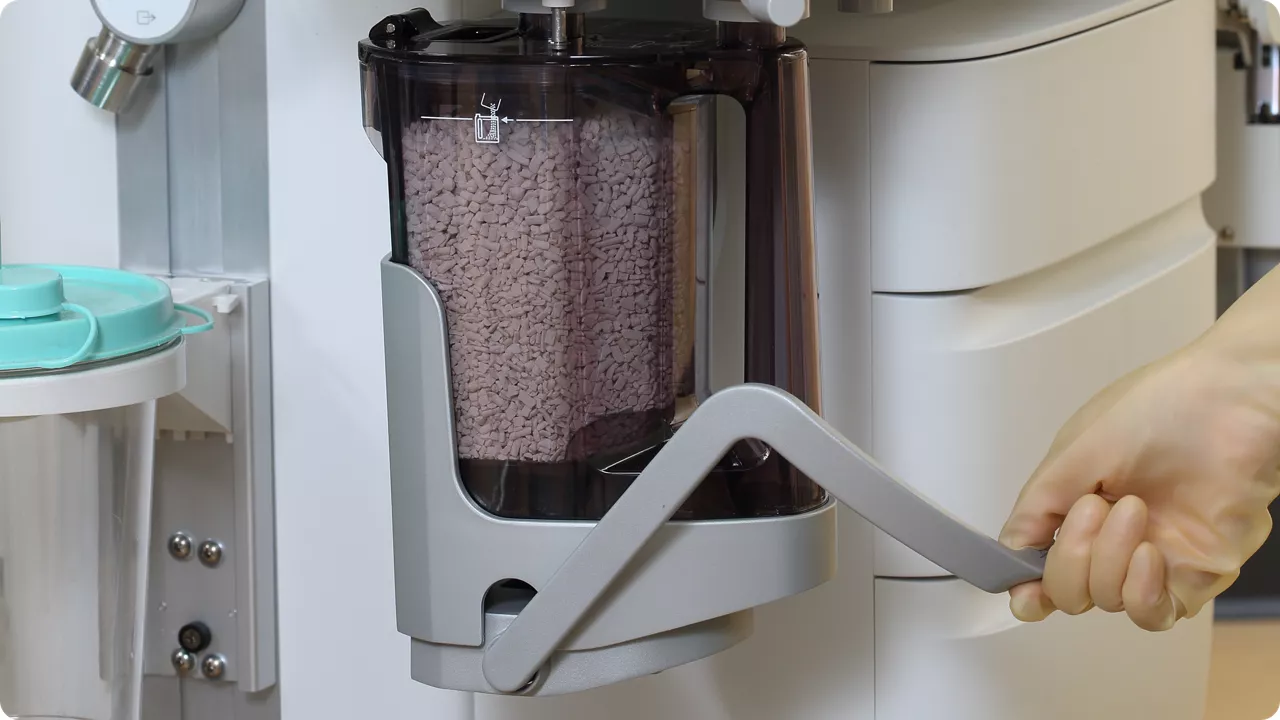

Compact and modular system designed for low flow anesthesia and easy disassembly and cleaning.

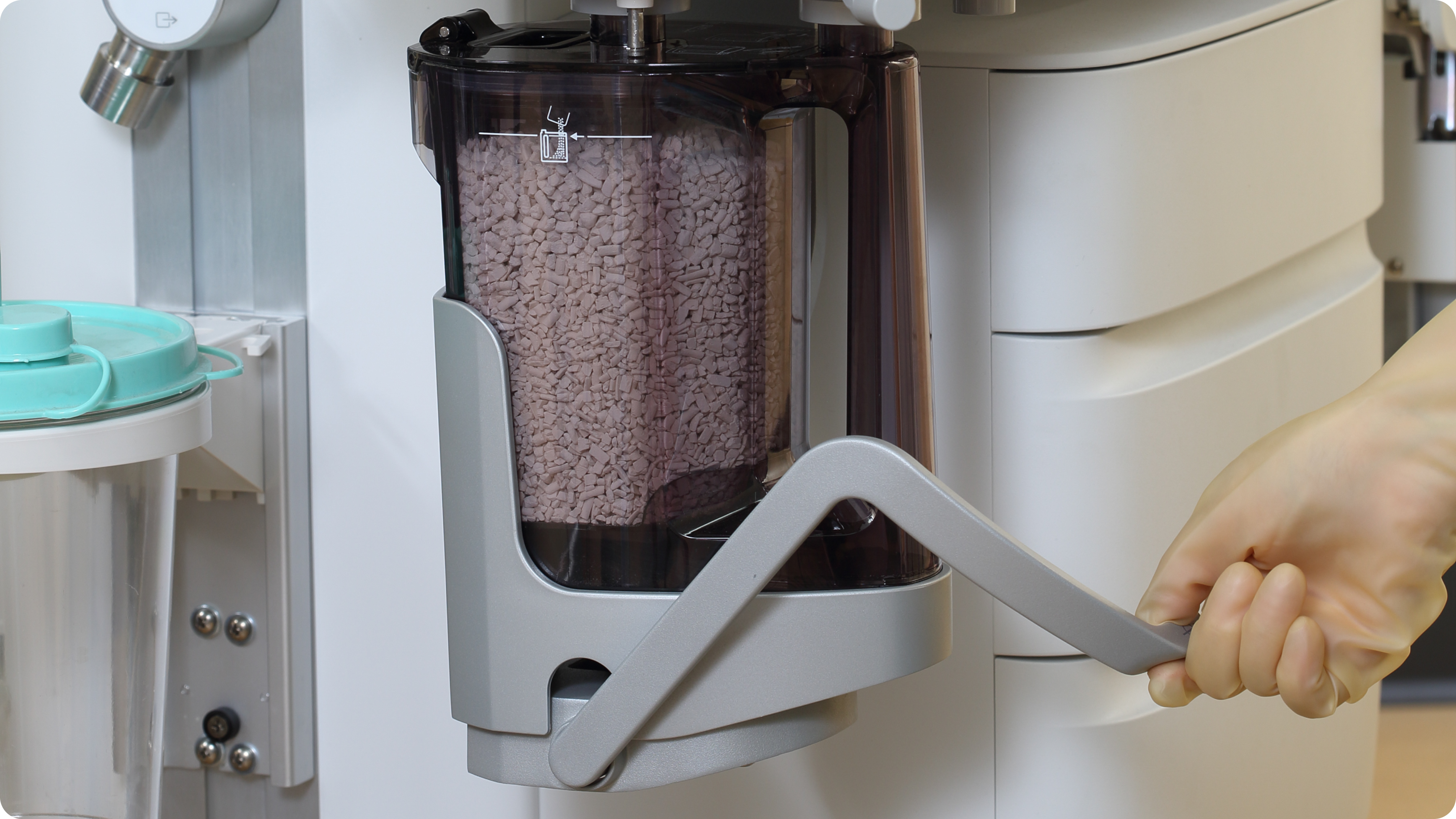

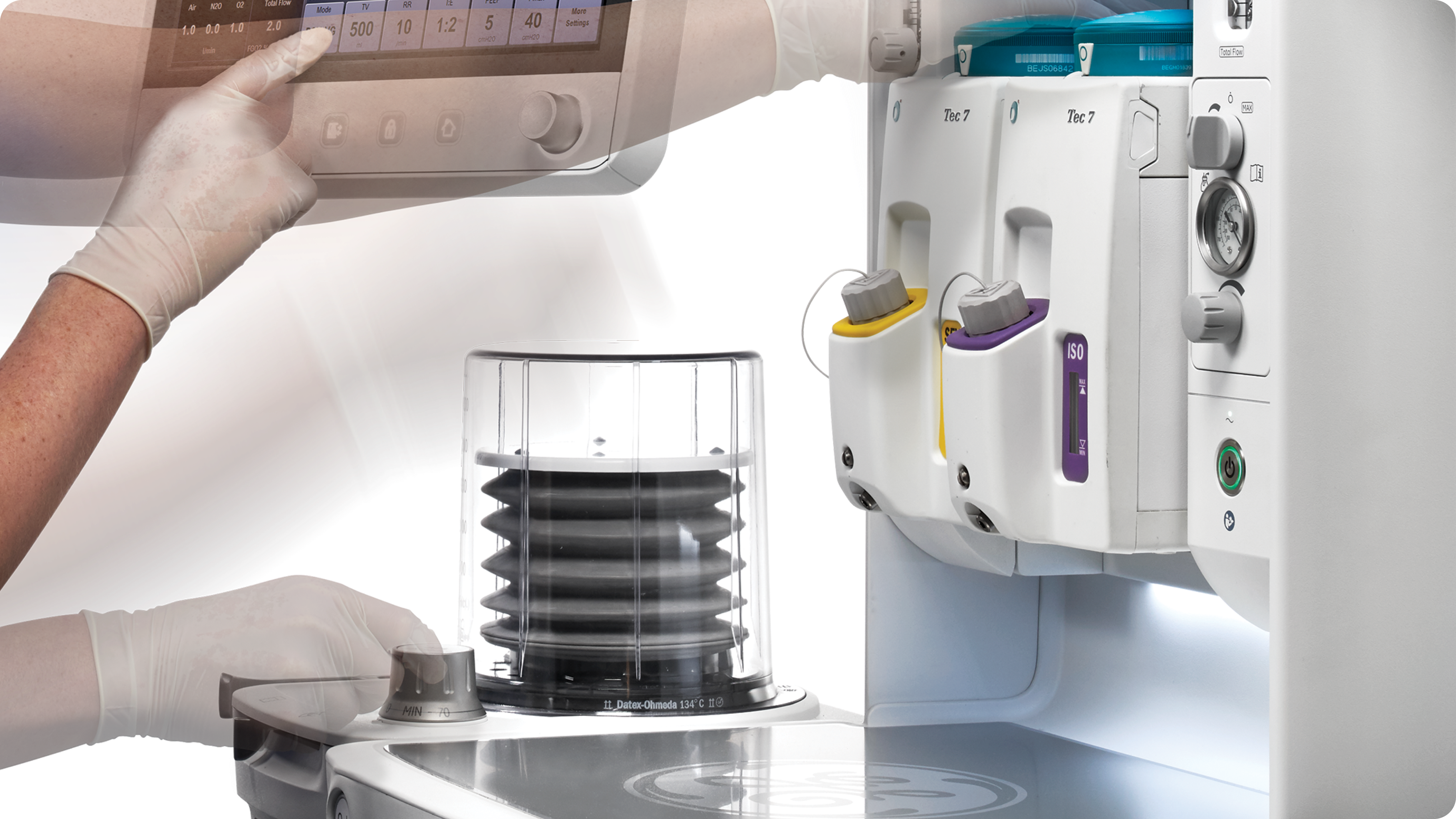

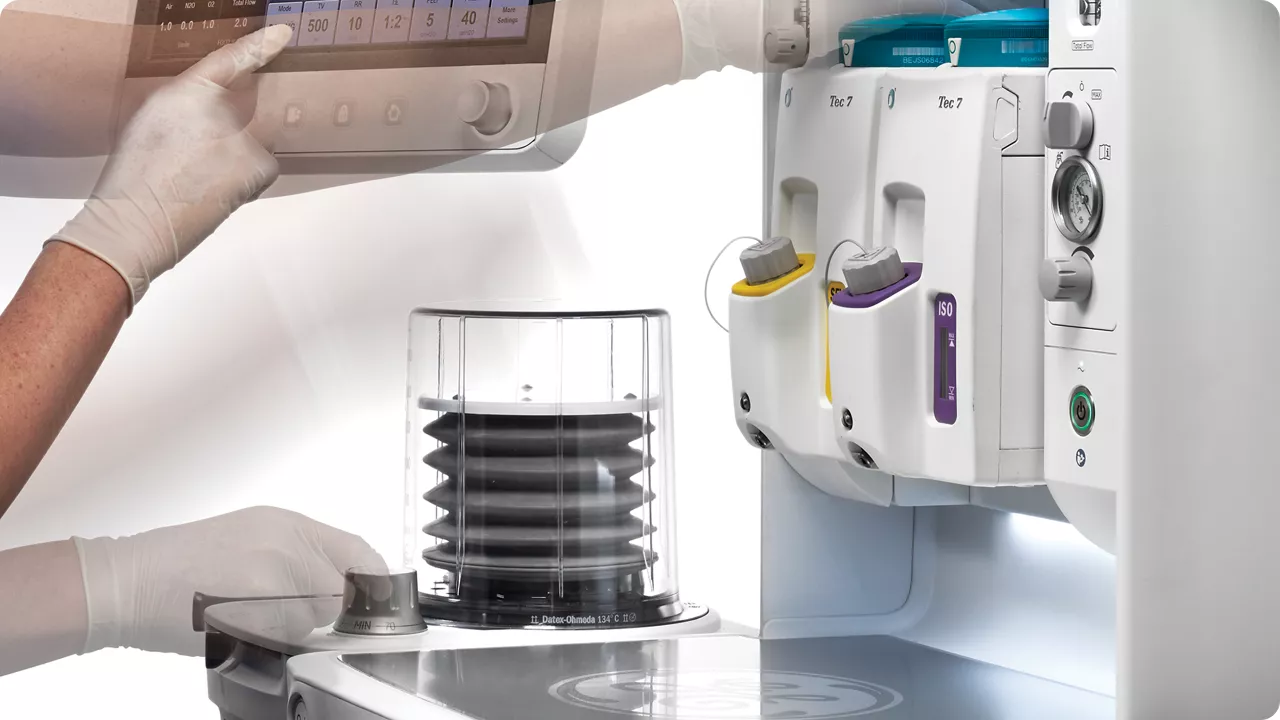

Compact Breathing System

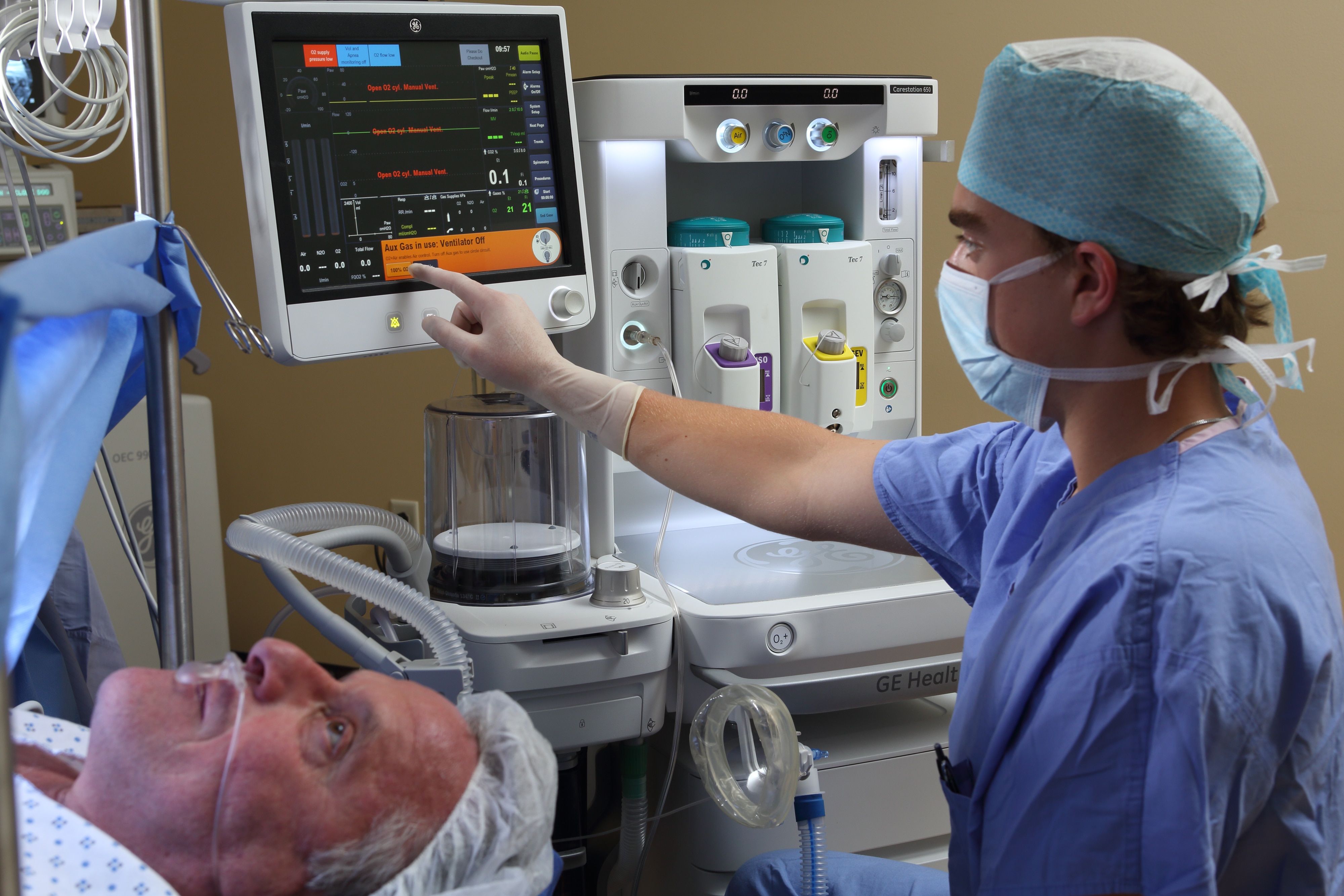

Clear on-screen indicators help clinicians confidently navigate the system and alert them when flows are paused.

Intelligent Display

Lighting shows active flow controls, the main screen highlights the flow status when auxiliary ports are in use.

Intelligent lighting controls

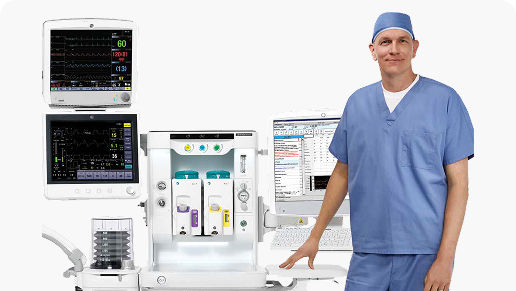

Carestation Advantage

Only available on the Carestation 650 and 650c

Carestation Advantage

Scalable solution that connects devices in a single, integrated system. The digital platform supports upgradeability so your investments keep pace with technology advances.

Innovative parameters and advanced tools intelligently packaged
User interface specifically designed to improve access to core functions
Simplified patient transport and data transfer

carestation-650-feature-carestation-advantage-ci-en

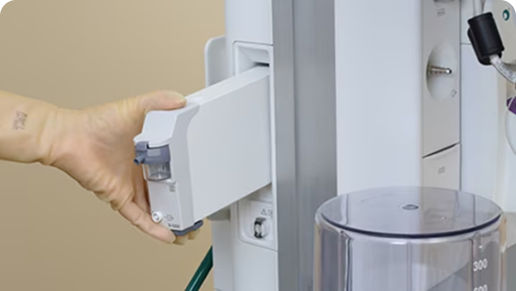

Integrated CARESCAPE Respiratory Module

Single-width modularity
40% reduced sample flow
67% increase in Respiration Rate (RR)  measurement range
100% increase CO2 & O2 measurement accuracy  RR range
40% increase in RR range with Pediatric  Spirometry/Pedi-lite sensor
67% decrease in TV lower range with  Pediatric Spirometry/Pedi-lite sensor
Enhanced environmentally friendly  water trap design

carestation-650-feature-integrated-carespace-ci-en

Features

Additional features of the Carestation 650

Time-saving software

15" touchscreen unites ventilation & monitoring controls for seamless Carestation experience with easy operation

Predicted Body Weight (PBW) calculator

Combat alarm fatigue: Adjust CO2 & MV/TV limits in real-time with Auto Alarm Limits software

Pause gas flow

Simplify circuit disconnects: One button stops gas, suspends alarms, agent, ventilation for 1 min

Fast checkout

Complete the checkout in as fast as three minutes using the clear, step-by-step on-screen guidance

Advanced ventilation – neonate to adult

Familiar, tactile and easy to use controls are comfortably within reach to help eliminate stretching and awkward positions

Intelligent lighting controls

Smart lighting highlights flow controls; ventilation screen reinforces status during port use

Products

Discover the Carestation 600 Series Anesthesia Delivery Systems

The CarestationTM 600 Series (620/650/650c) is a suite of compact, versatile and easy to use anesthesia systems designed to help solve today’s toughest challenges.

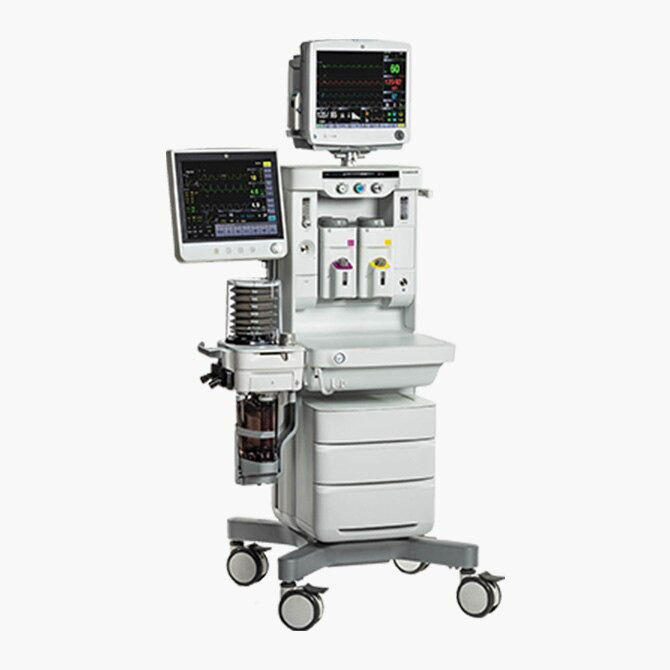

Carestation 620
Anesthesia Delivery System

The Carestation 620 anesthesia delivery system is a compact, affordable and easy to use anesthesia system that features a sleek integrated design suited for constrained environments and simple user interface for improved workflows.

View product

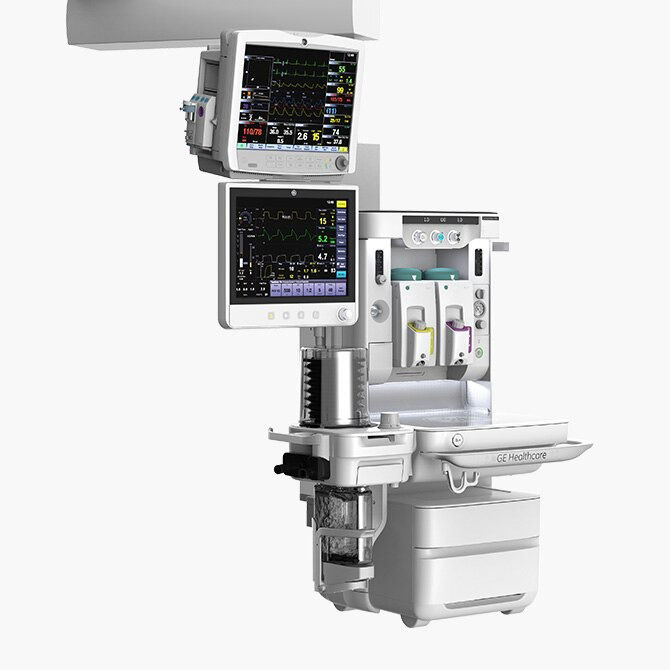

Carestation 650c Anesthesia Delivery System

The Carestation 650c is a compact anesthesia system designed for pendent or wall mount; an ideal solution for induction rooms where floor space is limited.

View product

References:

1. Only available on the Carestation 650 and 650c

2. Tusman, G., Bohm, S. H., Tempra, A., Melkun, F., Garcia, E., Turchetto, E., . . . Lachmann, B. (2003). Effects of recruitment maneuver on atelectasis in anesthetized children. Anesthesiology, 98(1), 14-22.

3. Reinius, H., Jonsson, L., Gustafsson, S., Sundbom, M., Duvernoy, O., Pelosi, P., . . . Freden, F. (2009). Prevention of atelectasis in morbidly obese patients during general anesthesia and paralysis: a computerized tomography study. Anesthesiology, 111(5), 979-987.

4. GE benchmark studies from 2011: GE Healthcare PCV to Tidal Volume Data Collection Test Results. Actual results may vary and are dependent on the patient. DOC0933949/DOC0970424
