Optima™ IGS 320 with AutoRight™

Cardiovascular imaging within your reach

Advanced Visualization for Your Evolving Practice.

As an Interventionalist, you want to perform procedures easily & efficiently with Superior Image Quality although it is challenging to have the best IQ with minimized dose and contrast media. To ensure successful procedures for best patient comfort, safety and recovery, Optima IGS 3 with Autoright² can uniquely deliver Neural-Network-based premium image chain resulting in automatically optimized image and dose parameters for you, in real time, at a reasonable price and get access to advanced solutions such as advanced cardiac visualization.

System

Superb image quality with high Detective Quantum Efficiency (DQE)

The proprietary angiography flat-panel detector offers one of the industry’s highest ratings for Detective Quantum Efficiency (DQE), a parameter internationally acknowledged as an index of detector performance in contrast-and dose-limited imaging performed in clinical studies. High DQE enables better-quality images at the same dose, or the same quality image at a lower dose.

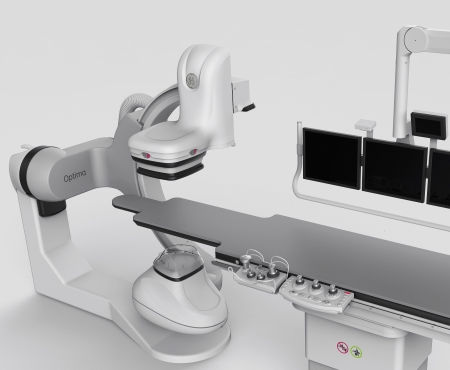

Dedicated imaging for cardiac procedures

The Optima IGS 320 includes a 20.5 cm (8 in) square detector dedicated to cardiac imaging that offers 34% greater coverage than 17 cm (6.7 in) square detectors. It provides excellent coverage for performing coronary interventions from simple left coronary stenting to complex bifurcation cases or long CTO procedures and electrophysiology studies.

Offset C-arm

With its unique offset C-Arm, the Optima IGS 320 enables improved access to patient head in complex interventions and helps cover head to groin without moving the gantry.

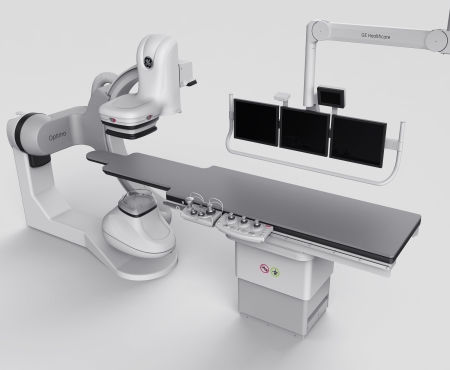

Clear access to patients during interventions

Thanks to the exclusive design of the C-arm, you get unrestricted access to the patient’s head for anesthesia and nursing. In addition, the C-arm design allows you to perform 3D rotational acquisitions of the spine and torso as well as patients’ head while intubated.

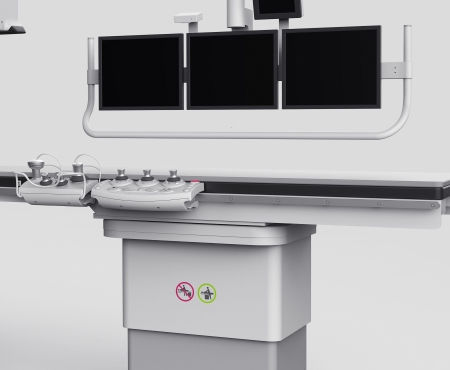

Simple, centralized, automated controls

Control your system and images with integrated, intuitive tableside controls. With simple menus, the Central touchscreen lets you control most system functions, configure the system, modify imaging parameters, control images displayed on your monitors, and manipulate advanced applications –all at the tableside. The comfortable, easy-to-grasp control knob makes it easy to pan the table, position the gantry, and perform procedures.

Imaging

Automatic Exposure Control

Intelligent AutoEx & automatically selects the X-ray parameters to achieve the optimal balance of IQ/dose based on clinical needs and users preferences.

Watch Video

Applications

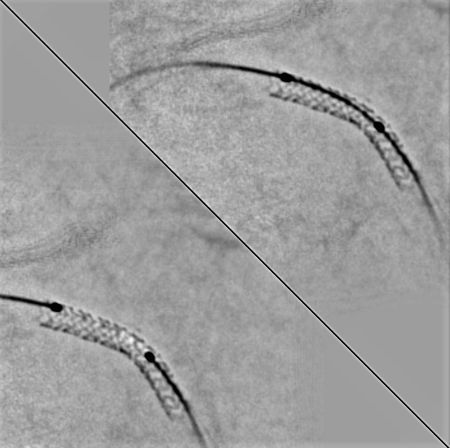

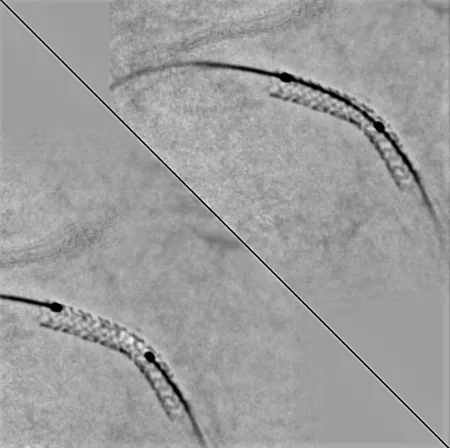

StentViz

Quick and accurate visualization of the 2 stents to get the optimal overlap. Also helps in assessing the deployment, the apposition and the overlap.

InnovaSpin

The offset C-arm permits fast-spin rotational angiography over a maximum range of 200° at variable speeds from 20° to 40°/sec (maximum speed of 30°/s from LAO to RAO) with flexible cranio/caudal oblique angulations. The enhanced InnovaSpin^TM trajectories are not constrained to a single transverse plane and can be used at oblique angulations within physical constraints. ²

Watch Video

Our innovative Optima IGS 320 with AutoRight™2 raises the bar in technology with features including the first Neural-Network-based image chain and remarkable PCI ASSIST3. It helps to deliver exceptional image quality and enhanced patient comfort by providing access to advanced solutions such as advanced cardiac visualization. The platform is powered with a comprehensive set of advanced interventional imaging software. You can expand your clinical versatility and plan, guide & assess increasingly sophisticated procedures with greater precision and dose efficiency.

References

Modification of preferences by requesting it to your entity responsible for the servicing of your equipment
Option may not be available in all countries, nor all systems, check with your local representative.
Features included in Blueprint may differ based on platform. check with your local representative
Option sold separately. Includes 3DXR. Requires AW workstation and Volume Viewer.
