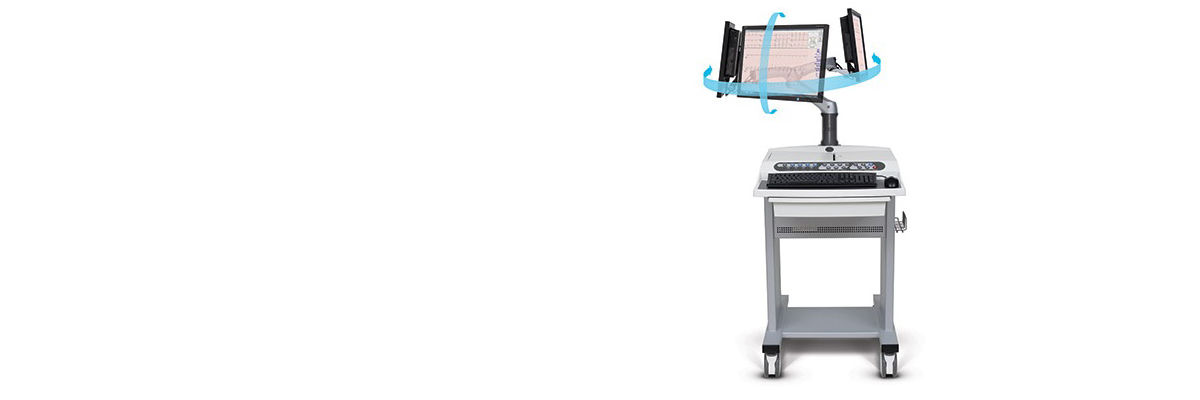

CASE Exercise Testing System
1800-102-2977

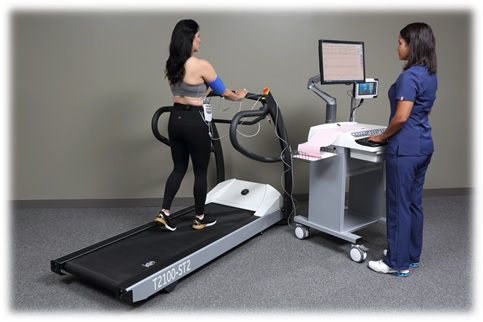

The CASE™ Exercise Testing System is a stand-alone, highly scalable exercise testing solution helps physicians quickly and easily assess cardiac function during exercise.
Get proven clinical excellence.
Assess cardiac function conveniently during exercise.
Innovative algorithms offer great diagnostic confidence.
Maximize efficiency and enhance productivity.
Connect your CASE system to a Local Area Network (LAN), and store patient data and test results to a central database.
Physicians can review, edit and print data remotely, so the stress lab can concentrate on testing.
Expand your networking options.
Enhance your digital workflow with connectivity to EMR, MUSE™ Cardiology Information System and PACS.
Whether you use a standalone system, a group of workstations or a complete enterprise solution, we have the scalable solution that fits your needs today and tomorrow.

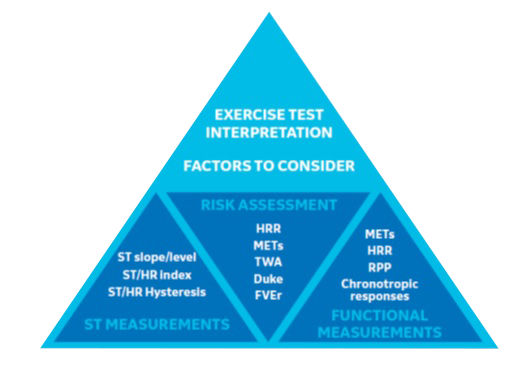

Analysis Programs
A broader view. Insight enhanced.
The CASE Cardiac Assessment System for Exercise Testing goes beyond conventional ST segment assessment to enable advanced analysis of patient risk, functional response, and ST changes. .
Spectrum of decision support data
Identifying Coronary Artery Disease (CAD) in women
Assessing risk of sudden cardiac death
Exercise capacity as an indicator of mortality
Workflow
Workflow simplified. Productivity elevated.
The CASE system’s streamlined workflow and digital connectivity help speed patient care and increase staff productivity.

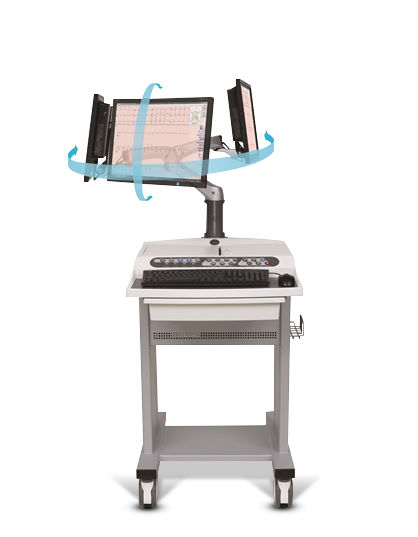

- Adjustable monitor for comfort and productivity
- Proven clinical quality
- Eliminate manual measurements
- Remote review
- Fast access to results
- Streamlined paperwork
Performance
Investment protected. Confidence assured.
The CASE system puts the renowned performance and reliability of GE technology in your hands.
- Advanced security and compliance
- Open system architecture
- Scalable and flexible based on your facility’s IT and clinical needs
- Technical support services you can count on

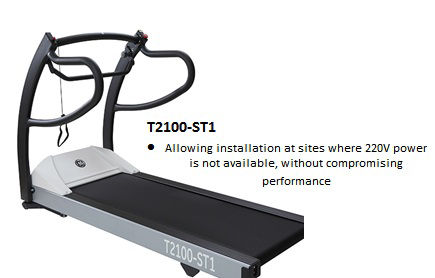

Treadmill
Advanced performance and reliability in exercise testing
Feature highlights
- Smooth, quiet, zero-start , 4 HP(6 HP peak) hi-torque drive
- Smooth, quiet linear actuator elevation system
- Low-to-the floor, cushioned deck for patient comfort and safety.
- Provides defined workload22'' x 63’’ (56 cm x 160 cm) running belt and handrails
- All steel chassis with powder coat finish
- Patented MasterTrack® belt alignment system eliminates off-center running belts
- Exceptionally accurate, self-calibrating speed and elevation
- Prominent emergency stop button and patient safety tether can be installed on either the left or right treadmill handle
- Minimum maintenance
- Optional height adjustable front handrail
eBike Ergometer
GE Healthcare ergometry equipment is being expanded with the adaptable and high-performance eBike series of bicycle ergometers.
eBikes are rounds-per-minute, independent bicycle ergometers for load ranges between 6 and 999 watts. The robust mechanical construction ensures reliable function even when in constant use. The ergonomic design offers a seating position that is optimal for almost all body sizes, and allows for easy mounting and dismounting, even for those with restricted movement-especially those who cannot use a treadmill.
The connection between GE Healthcare stress-testing systems and eBike allows for easy control of the entire examination. eBike is available in two versions-eBike basic and eBike comfort-with different characteristic features.

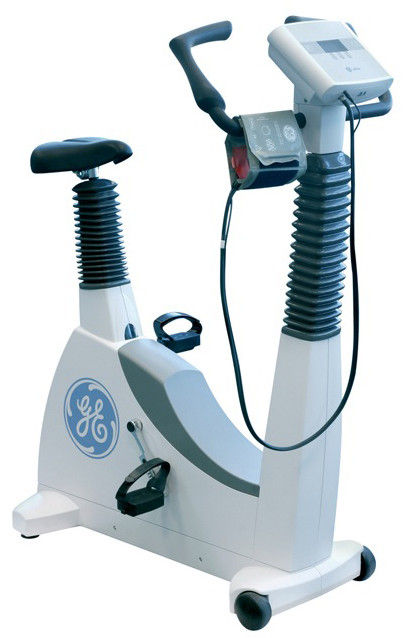

eBike Basic Ergometer features include:
- Revolutions per minute-independent load
- Load accuracy according to DIN VDE 0750-0238
- Continuously variable seat height adjustment
- Handlebar adjustment
- Digital and analog interfaces to GE Healthcare stress-testing systems
eBike Comfort Ergometer features include:
- Rounds per minute-independent load
- Load accuracy according to DIN VDE 0750-0238
- Electrical, non-graduated seat height adjustment
- Digital display of saddle height
- Dual handlebar adjustment (height and angle)
- Multiple expansion options
- Digital and analog interfaces to ECGs and PC-ECGs
Learn more about the capabilities of eBike Basic Ergometer and eBike Comfort Ergometer. Download the eBike Ergometer brochure.
Built for patient comfort and safety,the eBike L and eBike EL tilt-table design offers stability and comfortable patient positioning during stress exercise testing procedures. Ergonomic features include adjustable, padded surfaces, headrest and seat, and arm rest. The ergometers are height-adjustable to fit most any patient size.

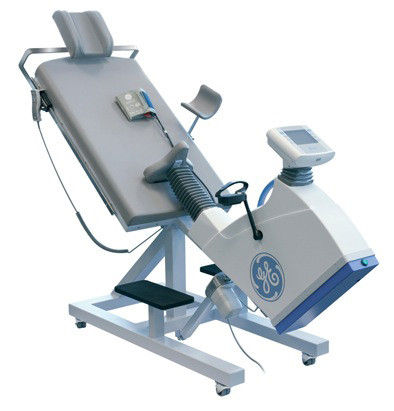

eBike L Ergometer features include:
- Provides a stress-testing mechanism for patients with limited mobility or who have trouble walking
- Features a stable exercise platform that helps reduce upper‑body motion for less muscle artifact
- Reduced system noise - less interference with manual blood pressure acquisition
- Provides defined workload
- Supports both standard and customizable exercise protocols

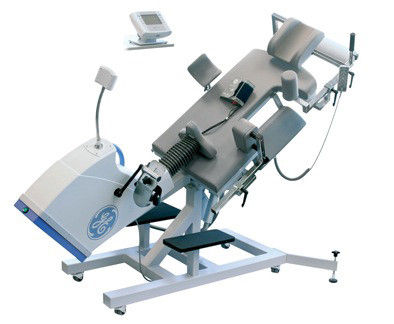

eBike EL Ergometer features include:
- Provides a stress-testing mechanism for patients with limited mobility or who have trouble walking
- Enables ultrasound image acquisition without moving patient from exercise platform
- Patient can transition to recovery phase directly on exercise platform - no dismount or walking to a recovery station
- Side drop-out piece provides unencumbered access to the imaging region of interest
- Provides stable and comfortable patient positioning for stress-echo procedure
Disclaimer
The official name of the product is CASE T2100ST2, authorized by Wipro GE HealthCare Pvt. Ltd., located at No 4, Kadugodi Industrial Area, Whitefield, Bangalore, Karnataka – 560067. The system is intended for use by trained healthcare professionals familiar with relevant clinical workflows and equipment operation. For safe and effective operation, users must verify system calibration, ensure correct supply and connectivity, and confirm settings appropriate to the patient’s clinical condition. Continuous monitoring of patient vitals and system performance is essential throughout use. This system must not be used in environments containing explosive gases or on patients with contraindications to its intended clinical use. Operators must follow all institutional protocols, manufacturer instructions, and established clinical guidelines. This material was created and reviewed on 22nd December 2025, and additional product and safety information is available upon request.
JB01113IN December 2022
