Innova CT HD

Next-generation 3D imaging.

Interventional procedures are becoming increasingly complex and clear 3D visualization of soft tissue, anatomical structure, and small interventional devices is crucial. CT-like imaging made available for interventional procedures has the potential to address even the most formidable challenges.

InnovaTM CT HD provides exceptional fine image details and quality on cross-sections to help you clearly visualize soft tissues, bones and small devices during your interventional procedures.

Highlights

Less streak artifacts without increasing dose1
Uniform images for soft tissue visualization
High spatial resolution for improved visualization of micrometric devices2

1. Compared to Innova CT using default protocol settings, except for "Soft Tissues" protocol.
2. Compared to Innova CT using small fields of view.

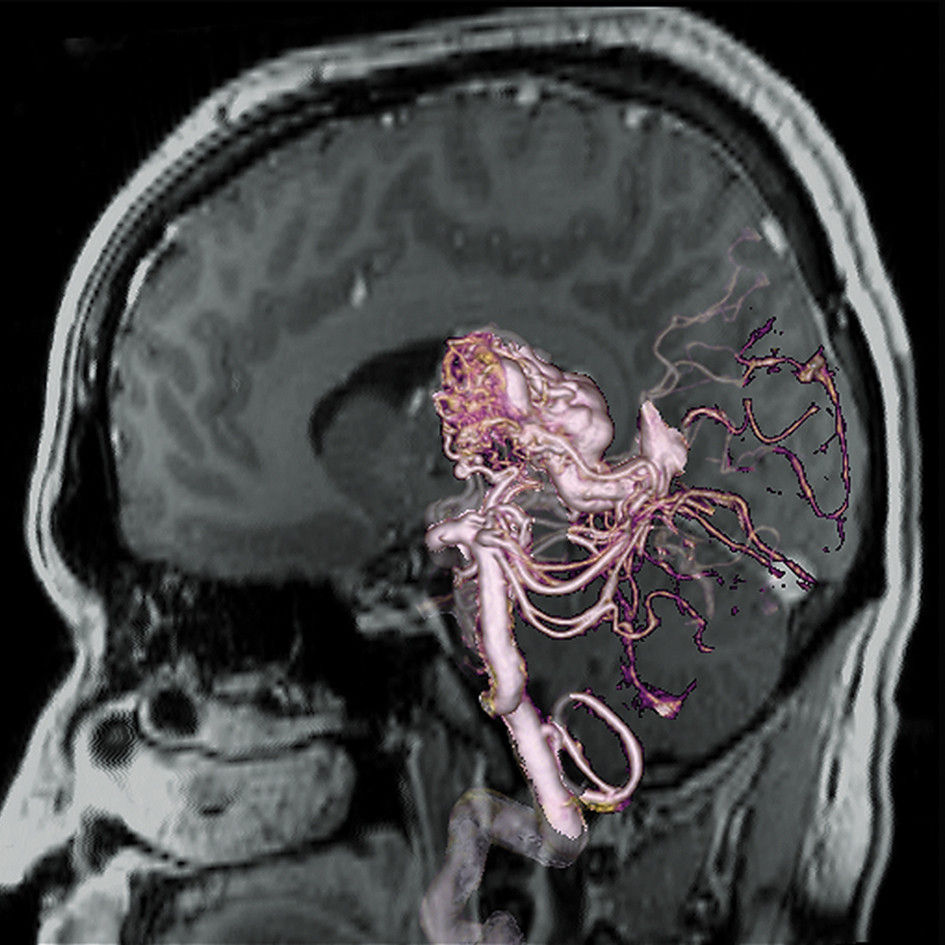

do-not-clone-advanced-visualization-applications-innova-ct-hd-aw-innova-ct-hd-overview.jpg

Apply

Gallery

Features

Innova CT HD provides exceptional fine image details and quality on cross-sections to help you clearly visualize soft tissues, bones and small devices.

High frame rate (50 fps) reduces streak artifacts and improves visualization of bones and soft tissues
Uniform images for soft tissue visualization with dedicated scatter reduction algorithm
High resolution protocol increases spatial resolution for better device visualization in small fields of view (FOV)
Three rotations speeds are available
- 40°/s (approx. 250 views in 5 s)
- 28°/s (approx. 350 views in 7 s)
- 16°/s (approx. 600 views in 12 s)
Wide range of fields of views available to fit visualization preferences
3D models can be analyzed with a wide range of tools available in Volume Viewer on AW

System Requirements

Innova CT HD application is available on the AW Workstation and AW Server platforms.

Intended Use

Innova 3D and Innova CT are software options, which reconstruct 3D volumes from Rotational Fluoroscopy acquisition to provide images that assist the physician in diagnosis, surgical planning, Interventional procedures and treatment follow-up. Innova CT is intended for imaging bone and soft tissues as well as other internal body structures. Innova 3D and Innova CT are not intended for mammography applications.
