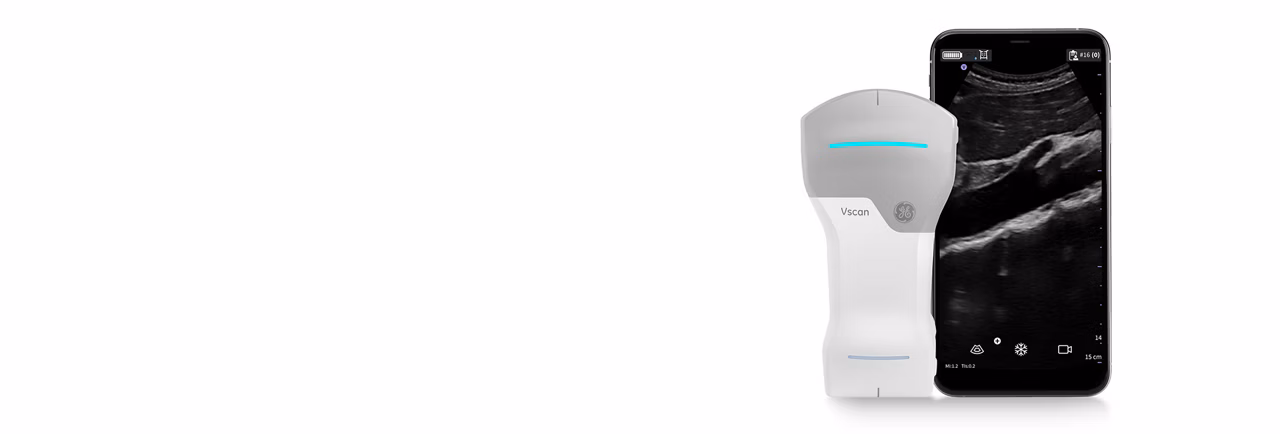

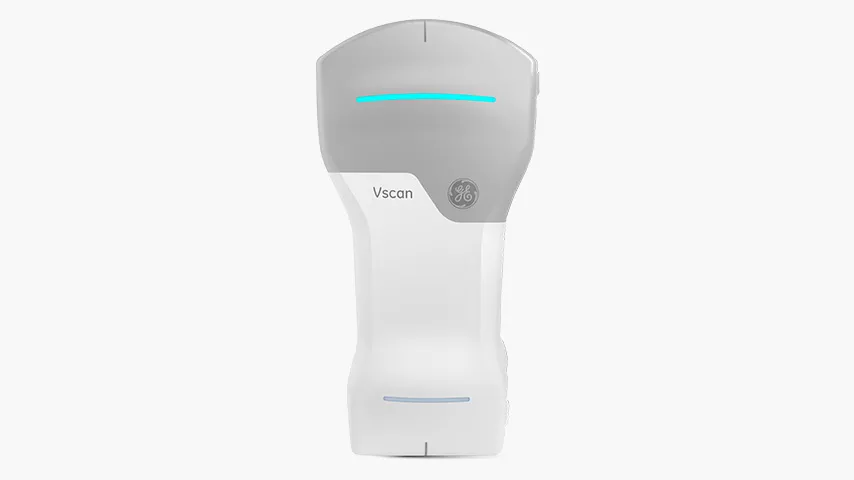

Vscan Air CL offers curved array and linear array transducers in a dual-probe configuration. The curved transducer is well suited for abdominal imaging, obstetric assessments and more, and the linear array is well suited for vascular, MSK, lungs and more. Complete both shallow and deep scans with one device without compromising image quality.

Curved array: Abdominal (Adult/Pediatrics), Urology (Adult/Pediatrics), OB/GYN, Lung/Thoracic (Adult/Pediatrics), Cardiac and hemodynamic assessment, Musculoskeletal (Conventional) (Adult/Pediatrics, Procedure guidance (Adult/Pediatrics).

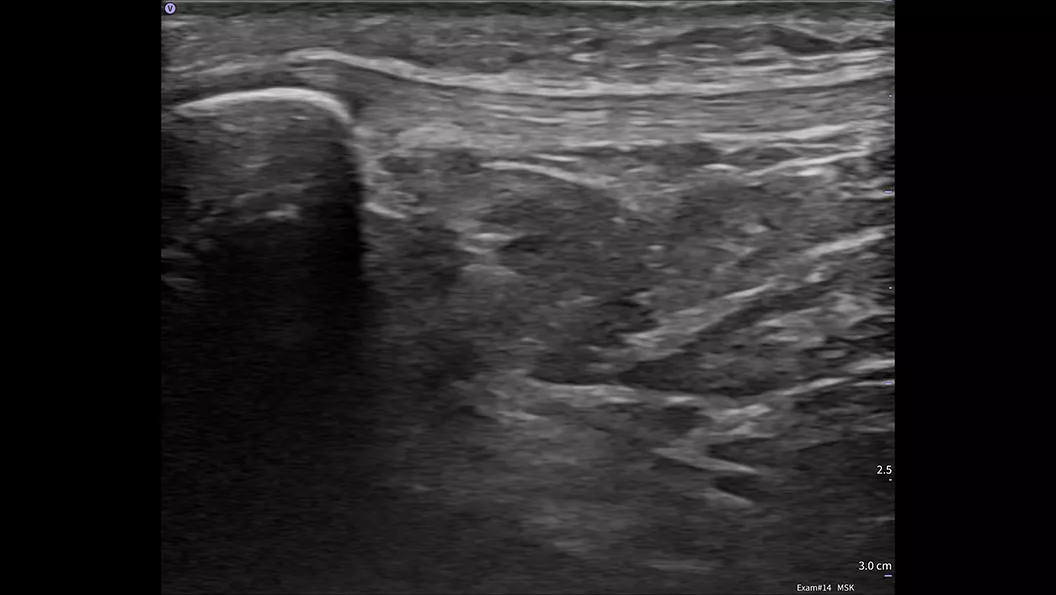

Linear array: Peripheral Vascular, Lung/Thoracic (Adult /Pediatric), Small organs (Adult/Pediatric), Musculoskeletal—(Superficial and conventional) (Adult/Pediatrics), Nerves (Adult/Pediatrics), Neck and airway (Adult /Pediatric), Procedural guidance (Adult/Pediatrics), Ophthalmic*, Cephalic (Neonatal) and Aesthetics**.

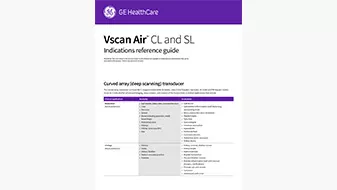

Check out our Indications for Use to see various exams that you can perform with Vscan Air.

*Ophthalmic is not available in Japan and China.
**Optional, not available in all markets.

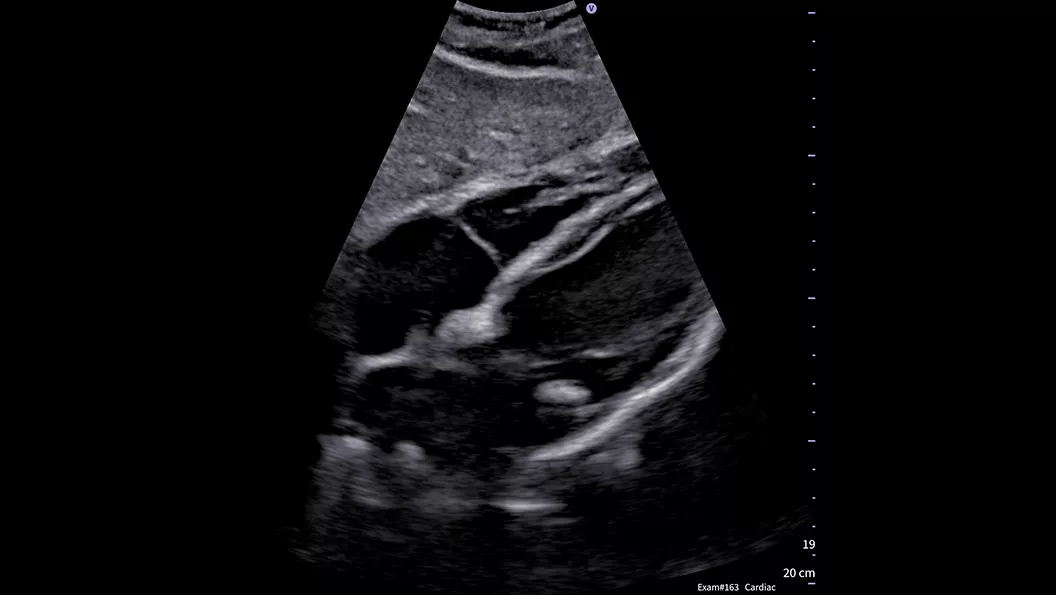

B-mode: Black and white mode for displaying anatomy in two dimensions in real time

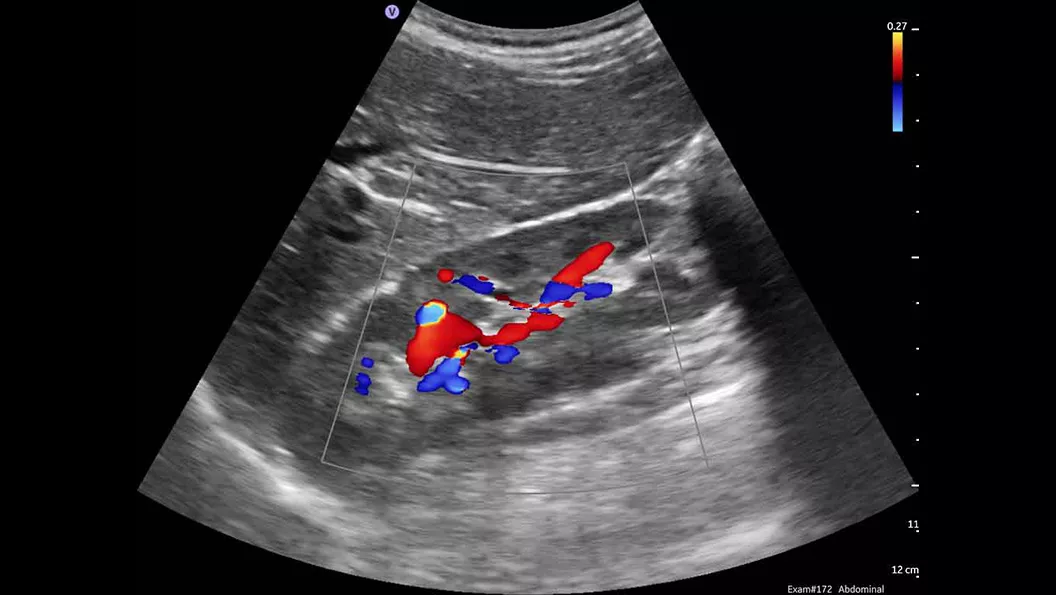

Color Doppler: Color flow – color-coded overlay for real-time blood flow imaging

PW: Pulsed wave spectral Doppler – displays speed and direction of blood flow allowing velocity measurements

M-mode: Motion mode – displays tissue motion over time (along one direction as indicated by M-mode cursor)

Vscan Air CL supports 50 mins continuous scan time (with new and fully charged battery, using 80% grey scale and 20% color imaging). Recharge battery from 10% to 90% capacity in 75 minutes.

Yes, you can preview the app by downloading the Vscan Air app through Apple® App Store or Google Play™ store.

* Google Play is a trademark of Google LLC. App Store is a registered trademark of Apple ® Inc.

Vscan Air is designed with privacy and security protections integrated into the core design. Patient data is protected through user authentication, device-level security, automatic sign-out, Secure Data Access (SDA) and encryption. The patient database is encrypted using AES-256, FIPS 140-3 compliant encryption, and exam data is accessible only to authenticated users. Data communication between the probe and application is encrypted using WPA2 during scanning, and Vscan Air supports secure data exchange standards including DICOM TLS and HTTPS.
