Discovery IGS 7 for Hybrid OR

Rediscover space and movement.

The Discovery™ IGS 7 angiography system brings both extremely high-quality imaging and complete workspace freedom to the hybrid operating room.

Its unique mobile platform brings all the power of a fixed imaging system to the table, yet it can be moved aside, so multi-disciplinary teams can complete procedures comfortably, with unobstructed access to patients.

High-end fluoroscopy image guidance, advanced applications, 3D image fusion – it all comes on a sophisticated gantry that travels on predefined paths with laser-guided precision.

With a choice of optimal mid size 31 cm and largest field of view 41 cm detectors to accommodate a wide range of endovascular, hybrid and open surgical procedures, free of interference from fixed floor or ceiling system structures.

With the Discovery IGS 7:

• Rethink your possibilities with predictable motion and patient access
• Reinvent the way you work with high-precision imaging
• Re-evaluate your options with flexible room layouts

Rethink your possibilities.

With the Discovery™ IGS 7 gantry, nothing on the floor or ceiling obstructs your work or limits your mobility - your freedom is nearly absolute. An untethered, laser-guided gantry carries the imaging C-arm. You can move it to the table to image any part of the anatomy, then power it back, out of the way, to precise pre-chosen positions.

Movable gantry puts clinicians in control.

The Discovery IGS 7 provides full flexibility in your clinical space. Controls available at tableside and at the back of the gantry let you maneuver the system easily and conveniently. When in position for imaging, the gantry swivels around the table on a defined path, with precise laser guidance. Combined gantry and GE OR table movement enables you to stop and image at any point for coverage from head to toe.

One-touch back-in and back-out means fully flexible procedures.

With the Discovery IGS 7, you can truly have it both ways: Move the gantry to the table for imaging, move it aside when needed - and all at the touch of a button. From the imaging positions at the table, you can back the gantry out to up to eleven predefined locations¹. Back-out distances are customizable to suit different room sizes.

Teams work better with nothing in their way.

The Discovery IGS 7 gives physicians, nurses, anesthesiologists and technologists ample space to work together effectively. Clinicians can position on either side of the patient, according to preference. With the offset C-arm, the anesthesiologist can work comfortably at the patient's head.

Customized parking provides the maximum freedom.

When it's not needed for imaging, you can move the gantry aside completely, allowing complete patient access at the table and enabling easy room cleaning. You can pre-configure two parking spaces to suit your room size and shape.

A wide-bore C-arm expands your options

With a full 129 cm (50 in) of space between the tube and the detector, the Discovery IGS 7 features one of the largest bore among major angiography providers. It provides collision-free 3D imaging to let you image large patients easily and perform cone-beam CT acquisition even for patients with arms down and intubated⁹.

Offset C-arm

With its unique offset C-Arm, the Discovery IGS 7 enables improved access to patient head in complex interventions and helps cover head to groin without moving the gantry.

Optimal detector size adds clinical versatility

With the 31 x 31 cm (12.2 in.) detector, the Discovery IGS 7 is designed for a wide range of cardiovascular and interventional procedures. You can perform steep angulations for cardiac procedures, without compromising detector coverage for peripheral vascular procedures.
With its broad 41 x 41 cm (16.1 in.) detector, the Discovery IGS 7 system boasts one of the largest fields of view for interventional imaging.

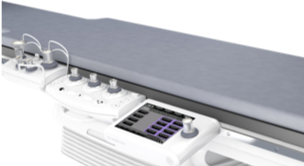

Simple, centralized, automated controls

Control your system and images with integrated, intuitive tableside controls. With simple menus, the Central touchscreen lets you control most system functions, configure the system, modify imaging parameters, control your large display monitor3, and manipulate advanced applications – all at the tableside. The comfortable, easy-to-grasp control knob makes it easy to pan the table, position the gantry, and perform procedures.

Re-evaluate your options

Use precious space well with flexible room designs. Build your room into a new fully functional hybrid OR, re-configure a small room, or re-purpose an existing room. You can install the Discovery IGS 7 in rooms as small as 35 square meters (377 square feet).⁶ You'll have the potential to increase the procedure mix in your OR with exceptional equipment for minimally invasive procedures.

Suspension-free design removes a source of contamination

The mobile gantry leaves the room ceiling suspension-free, helping prevent contamination from airborne agents. It allows laminar flow above the surgical field even when in position for imaging, helping to meet the criteria for ISO 5 classification.⁷

Sterile draping adds protection

The detector and tube can be easily fitted with sterile covers specially designed not to interfere with any gantry or detector motion. Sterile drapes attach quickly and easily inside the C-arm using four simple side-mounted clasps.³

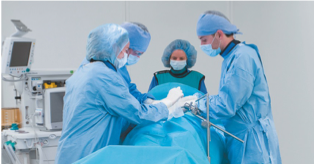

GE OR table for endovascular and open procedures

A long free-floating tabletop (333 cm) with power-assisted motion facilitates panning for heavy patients with up to 170 cm of longitudinal table travel and accommodates long catheters. The OR Table with covers and tableside user interfaces is specifically designed to reach the IPX4 level. Removable rails can be installed during the procedure by sliding the sleeve onto the table to accommodate retractors and other surgical or comfort accessories.³
