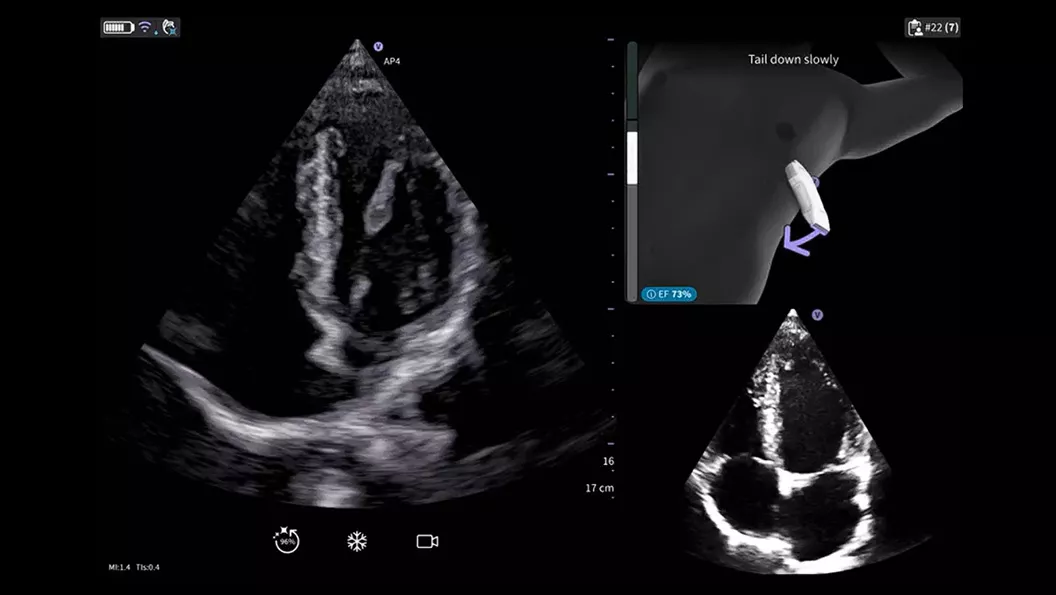

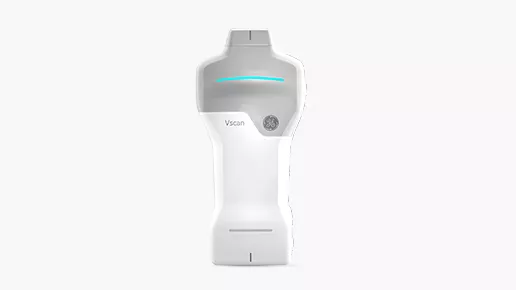

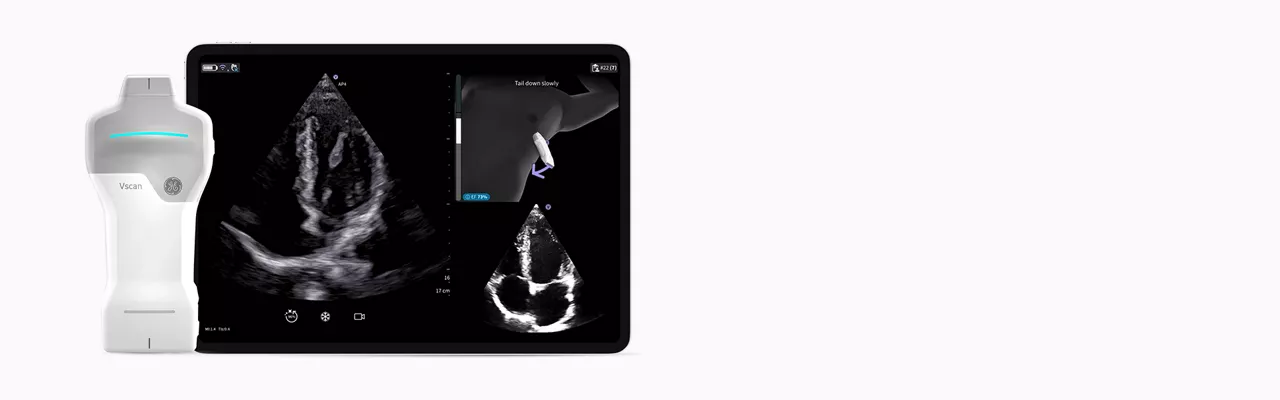

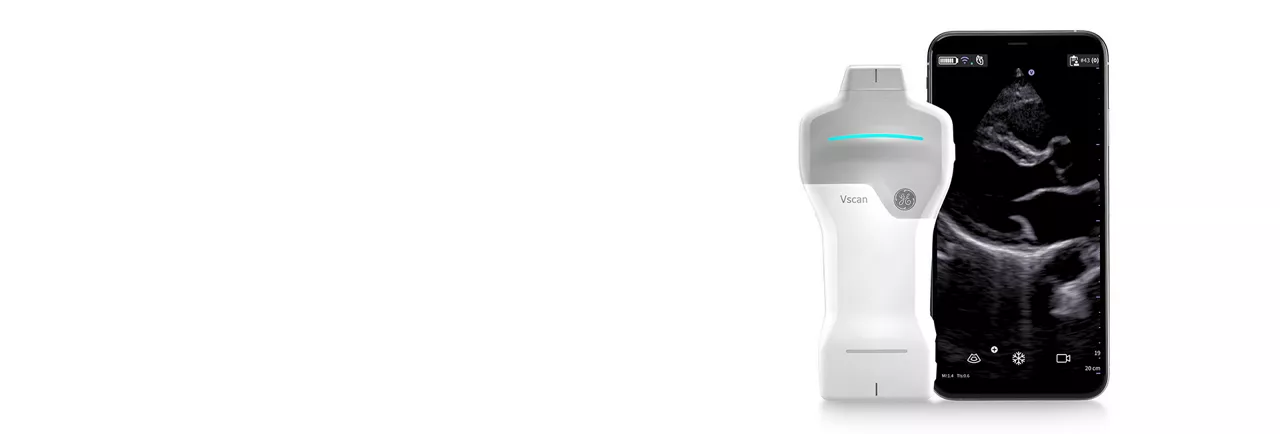

Vscan Air SL offers sector and linear transducers in a dual-probe configuration. Its sector transducer is well suited for rapid cardiac assessments. The opposite side of the probe has a linear array, so you won’t miss a beat when moving from a cardiac to a vascular assessment.

Linear array: Peripheral Vascular, Lung/Thoracic (Adult /Pediatric), Small organs (Adult/Pediatric), Musculoskeletal — (Superficial and conventional) (Adult/Pediatrics), Nerves (Adult/Pediatrics), Neck and airway (Adult /Pediatric), Procedural guidance (Adult/Pediatrics), Ophthalmic*, Cephalic (Neonatal) and Aesthetics**.

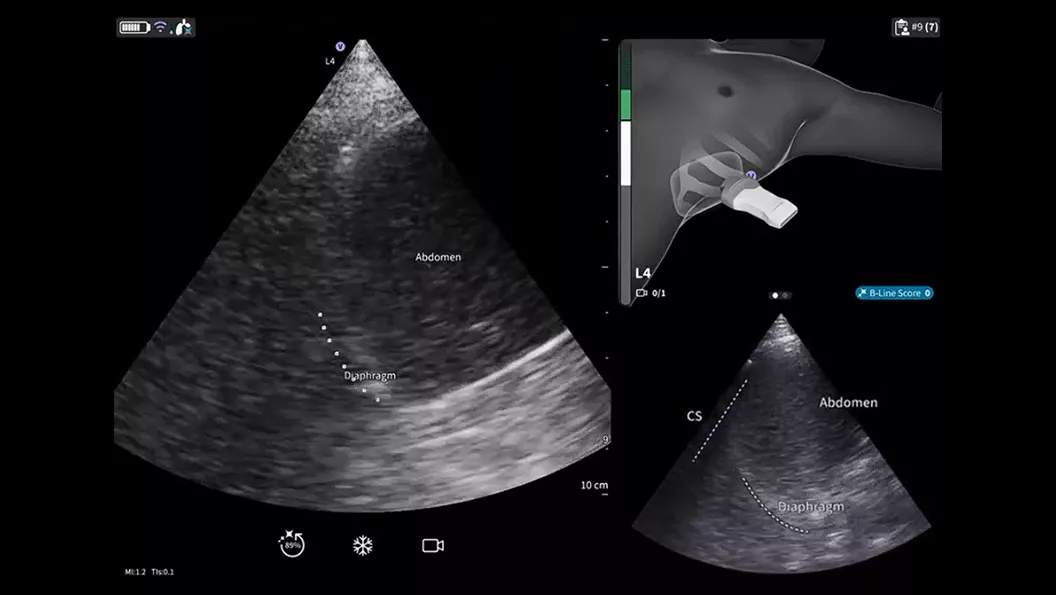

Sector array: Abdominal (Adult/Pediatrics), Urology (Adult/Pediatrics), OB/GYN, Lung/Thoracic (Adult/Pediatrics), Cardiac and hemodynamic assessment, Adult cephalic/Transcranial doppler, procedure guidance (Adult/Pediatrics).

*Ophthalmic is not available in Japan and China.

**Optional, not available in all markets.

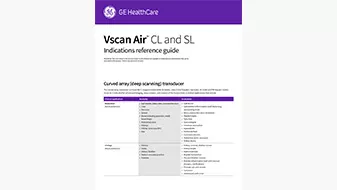

Check out our Indications for Use to see various exams that you can perform with Vscan Air.

B-mode: Black and white mode for displaying anatomy in two dimensions in real time

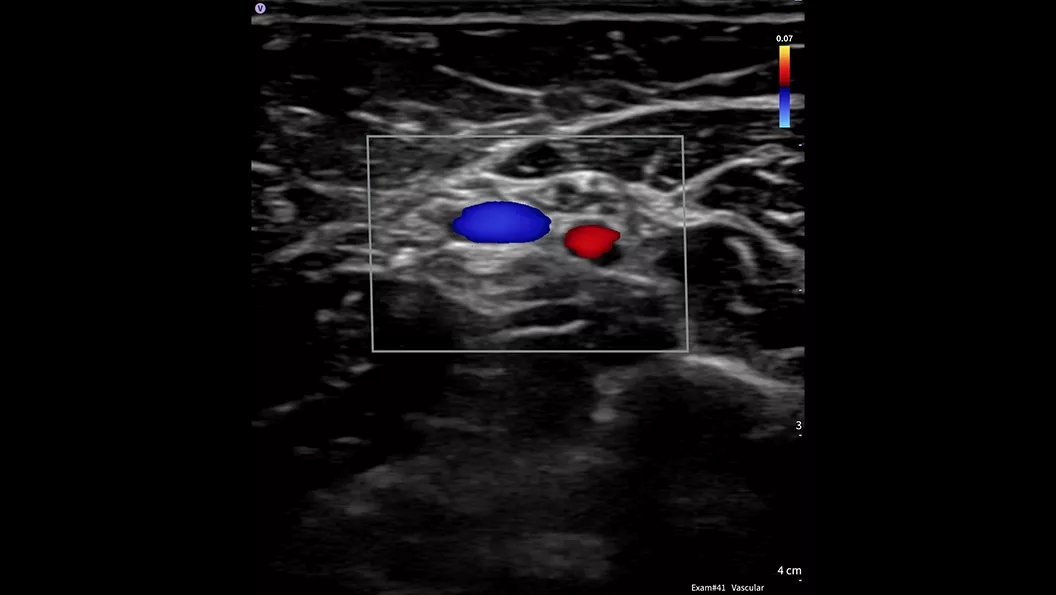

Color Doppler: Color flow – color-coded overlay for real-time blood flow imaging

PW: Pulsed wave spectral Doppler – displays speed and direction of blood flow allowing velocity measurements

M-mode: Motion mode – displays tissue motion over time (along one direction as indicated by M-mode cursor)

Vscan Air SL supports 50 mins continuous scan time (with new and fully charged battery, using 80% grey scale and 20% color imaging). Recharge battery from 10% to 90% capacity in 75 minutes.

Your Vscan Air handheld ultrasound comes with a 3-year standard warranty and the product is backed with local reliable service, education tools and online resources.

Yes, you can preview the app by downloading the Vscan Air app through Apple ® App Store or Google Play™ store. Sector images are not currently available in preview mode. For a full product demonstration, please contact your local sales representative.

* Google Play is a trademark of Google LLC. App Store is a registered trademark of Apple ® Inc.

Vscan Air is designed with privacy and security protections integrated into the core design. Patient data is protected through user authentication, device-level security, automatic sign-out, Secure Data Access (SDA) and encryption. The patient database is encrypted using AES-256, FIPS 140-3 compliant encryption, and exam data is accessible only to authenticated users. Data communication between the probe and application is encrypted using WPA2 during scanning, and Vscan Air supports secure data exchange standards including DICOM TLS and HTTPS.
