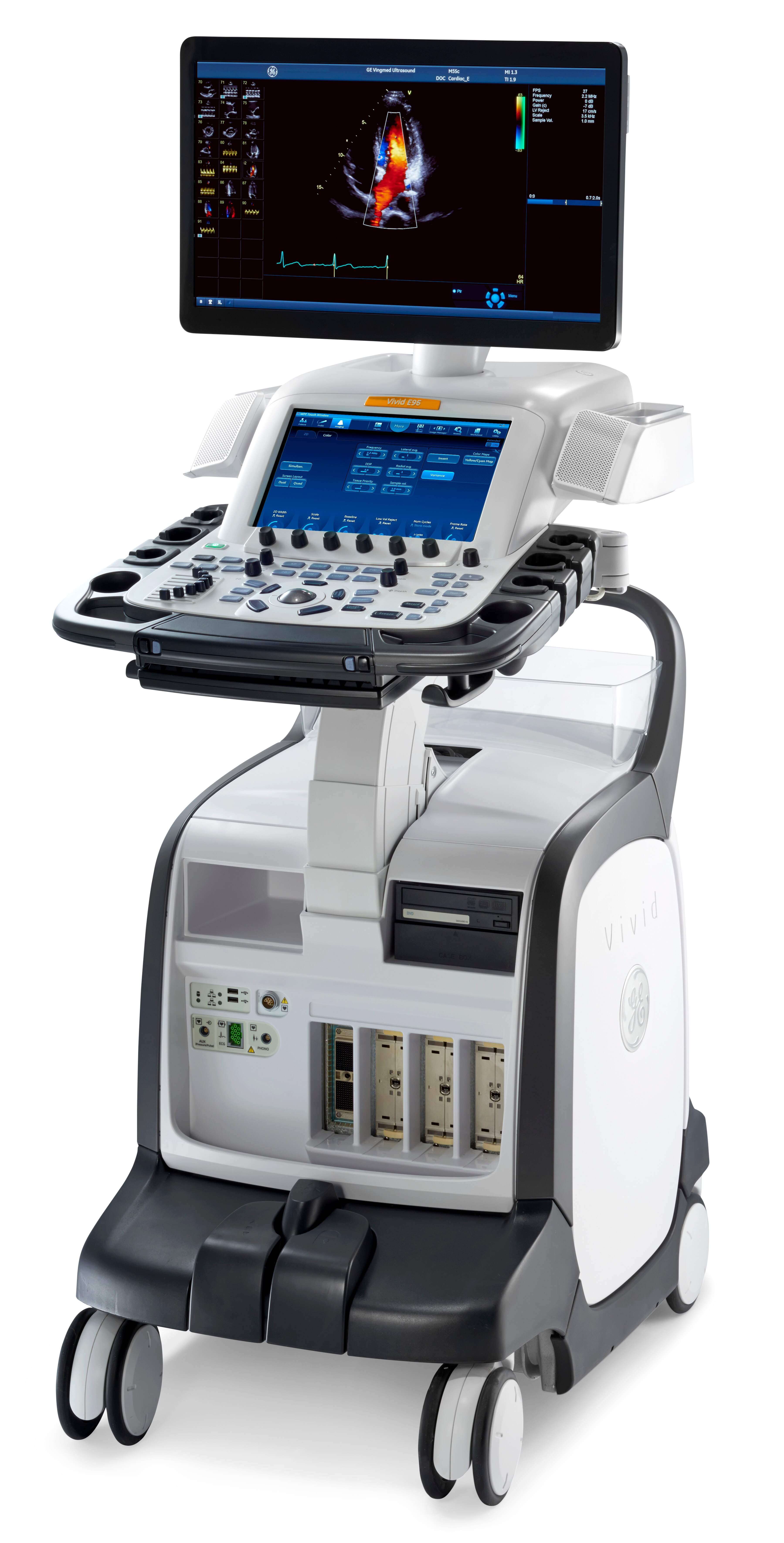

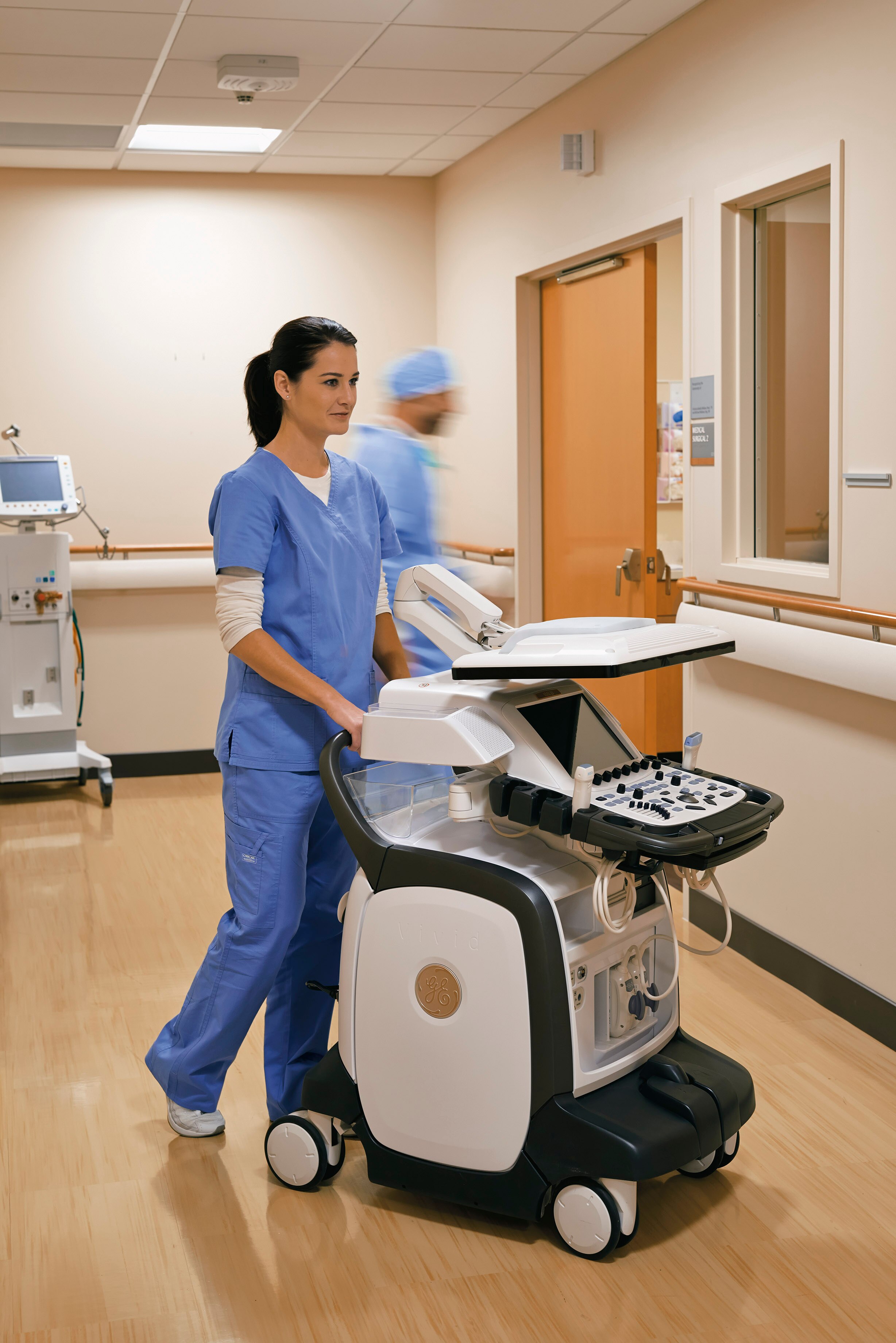

Vivid E95

The VividTM E95 is a premium 4D cardiovascular ultrasound system designed to help you reach
new heights of care efficiency and effectiveness.

Patient Care. Elevated.

Empowered. Expanded... Artificial Intelligence.

At GE Healthcare, we’re committed to support the vital work you do with patients every day. Using the extraordinary processing power of our breakthrough software beamformer platform – cSound™ 3.0 – as a catalyst, we’ve developed an array of innovative algorithms and applications to help you keep elevating patient care.



As a result, now you can empower your care team with the expanded advantages and artificial intelligence of the Vivid™ E95 cardiovascular ultrasound system. Diagnose more confidently with the help of enhanced 2D and color image quality. Accelerate exams via extended automatic Doppler measurements for TEE and TTE. Gain reproducible results with advanced capabilities for quantifying heart function and ejection fraction. All so you can make every moment count with patients – seeing problems clearly and quickly, performing procedures with great precision … and providing Patient Care. Elevated.

cSound

Faced with diverse body types and complex medical issues, many conventional ultrasound systems too often yield non-diagnostic exams that may hinder the efficiency of coordinated care. Recognizing this challenge, GE has taken cardiovascular ultrasound to a higher level with a new imaging platform called cSoundTM.

Echo Lab

Visualization

One patient, one probe The new one-probe adult 4D TTE solution on the Vivid™ E95 provides an excellent ergonomic workflow solution with uncompromised 2D, 4D, color and Doppler image quality performance at ultra-high volume rates - all with a single probe. This allows for complete and comprehensive diagnosis with one probe and avoids switching of probes, thereby reducing exam time and helping you move swiftly through your work with minimal muscular stress and strain on the operator.

*Optional

  • TCI and ACE

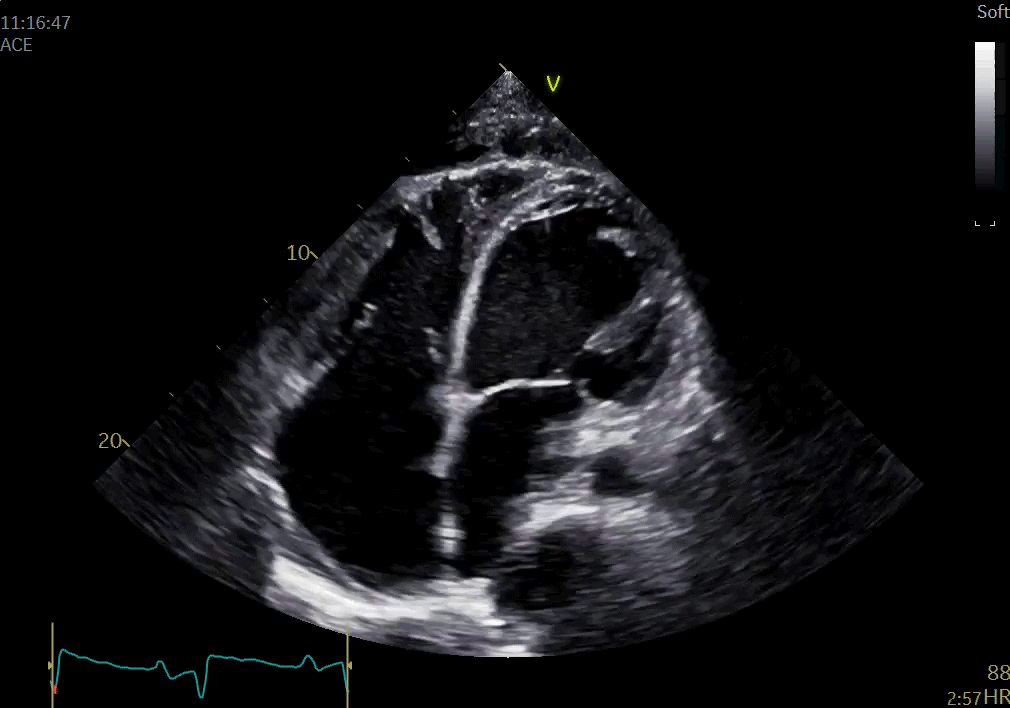

    TCI and ACE

    Observe the spatial, temporal and contrast resolution in the 2D image obtained with this new 4Vc-D probe.

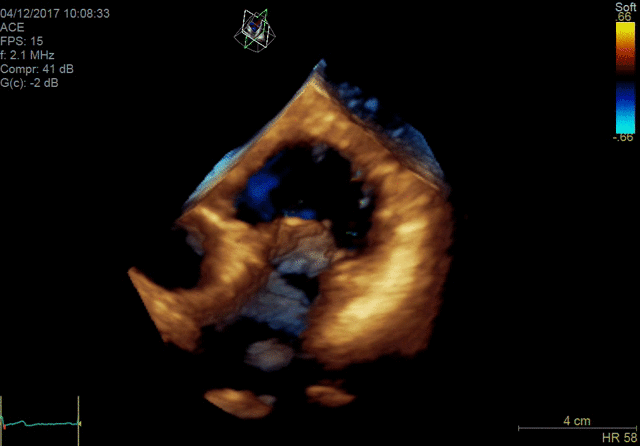

  • 4D color imaging with the 4Vc-D probe

    4D color imaging with the 4Vc-D probe

    This mitral valve regurgitation at 15 fps shows the E95’s high volume rates with excellent spatial resolution in single beat acquisition.
  • Color Flow

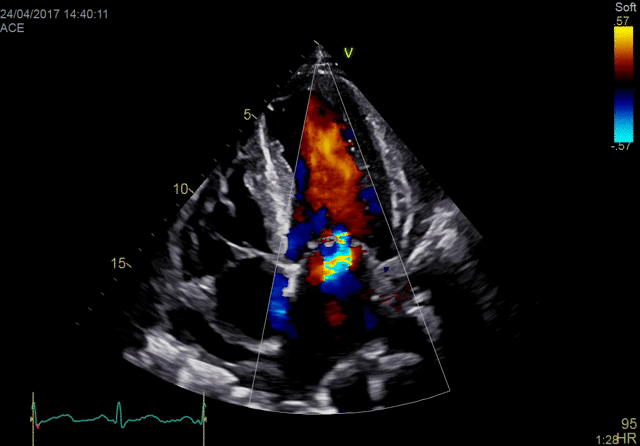

    Color Flow

    XDclear transducer technology provides excellent color sensitivity, contrast resolution and spectral crispness.

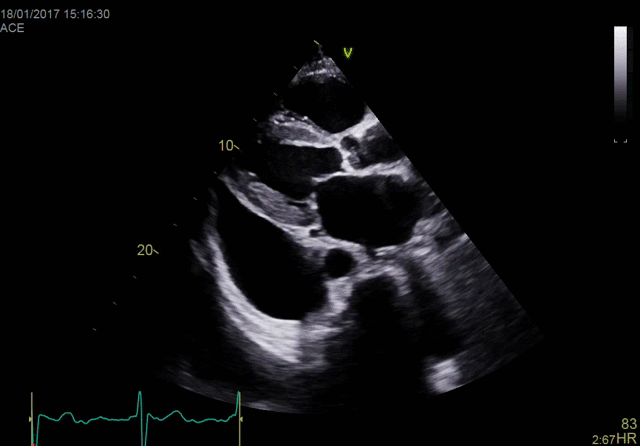

  • True Confocal Imaging

    True Confocal Imaging

    Introduces uniform focusing, combined with increased contrast resolution throughout the field of view at high frame rates.

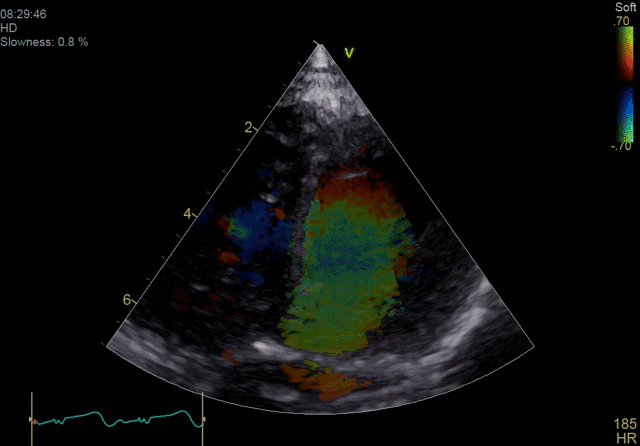

  • Blood Speckle Imaging (BSI)*

    Blood Speckle Imaging (BSI)*

    Available for pediatrics as well as transesophageal echo (6VT-D only), BSI, which reduces the angle dependency and aliasing issues of conventional color flow, provides a graphical representation of the trajectories of the blood cells.
  • Virtual Apex

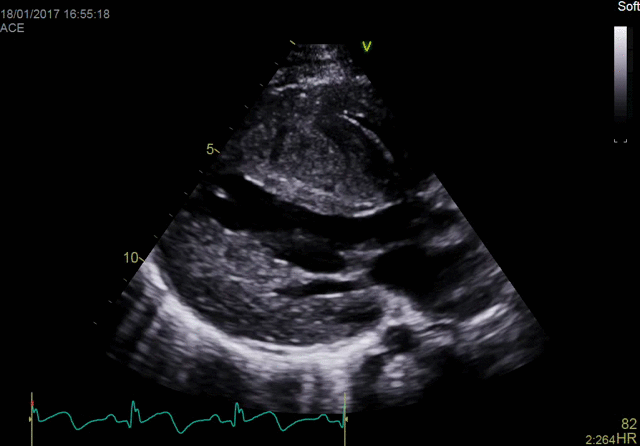

    Virtual Apex

    Phased array probes provide a wide field of view for enhanced visualization of structures at the sides of the sector.
Quantification

Define the care path Quantification with Vivid E95 is all about helping providers evaluate problems and pursue the path forward. Count on a full suite of intuitive tools to make your work easy and efficient. Quickly, accurately and thoroughly quantify left and right ventricular wall motion and other key functions.

*Optional

  • Auto EF 2.0**

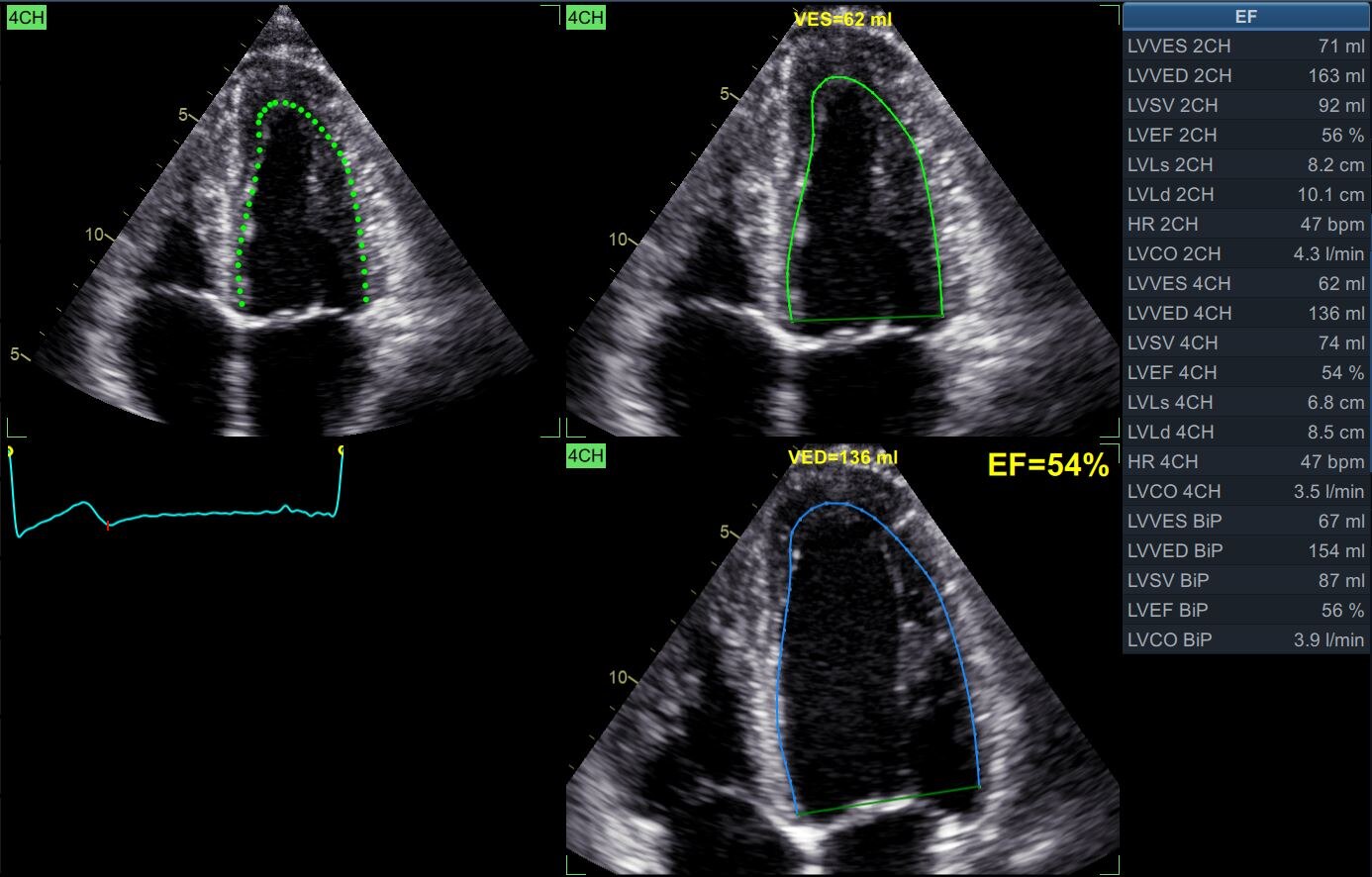

    Auto EF 2.0**

    Based on a 2D speckle-tracking algorithm and Simpson’s rule, this second-generation tool now offers View Recognition enabled by artificial intelligence. It automatically selects the most appropriate images to speed quantification and workflow.
  • Automated Function Imaging (AFI) 2.0*

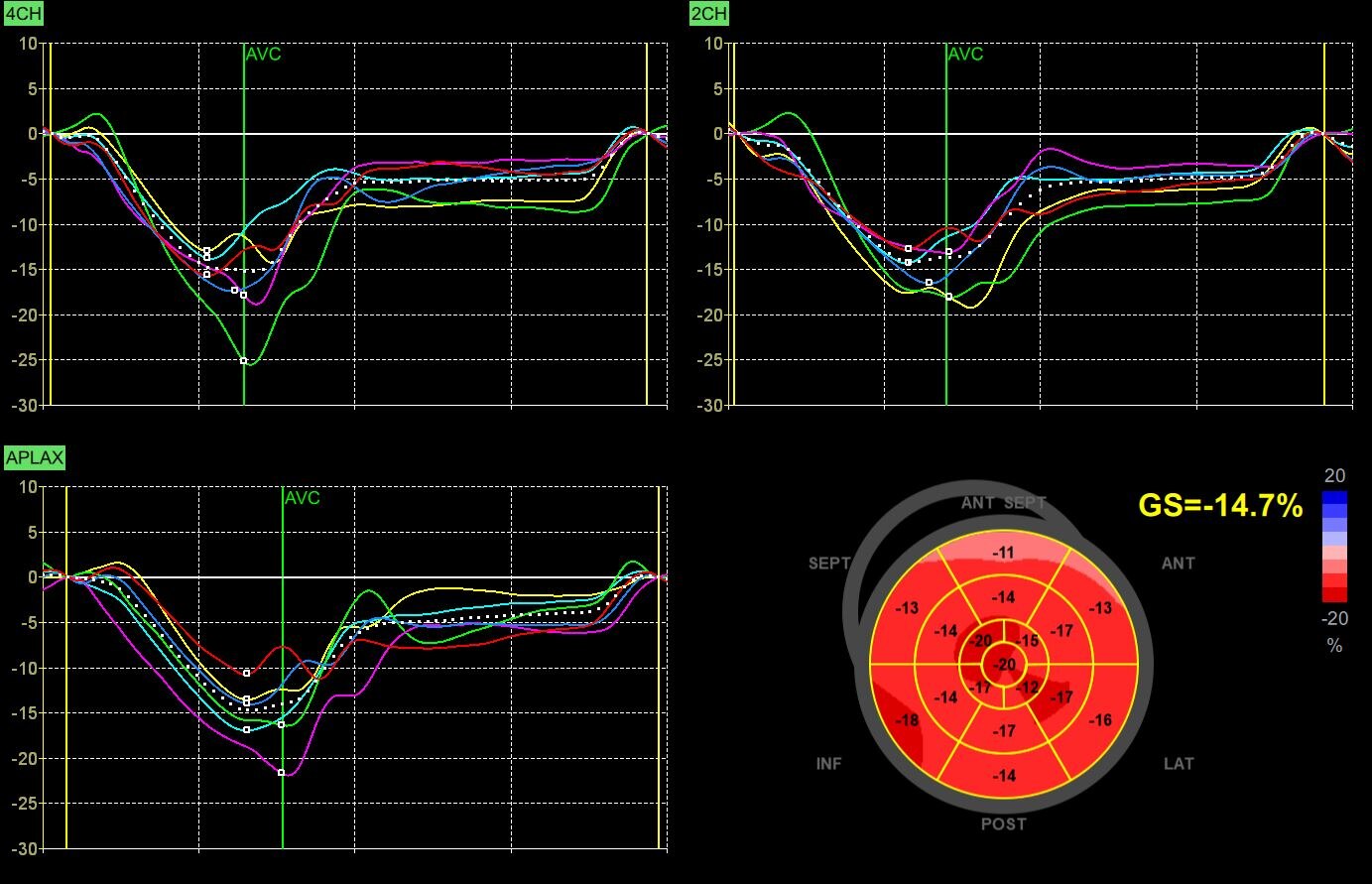

    Automated Function Imaging (AFI) 2.0*

    AFI 2.0 with the help of the artificial intelligence-based View Recognition feature will provide automated quantification of left ventricular segmental and global longitudinal strain as well as several other related parameters, including ejection fraction.
  • 4D Auto LAQ*

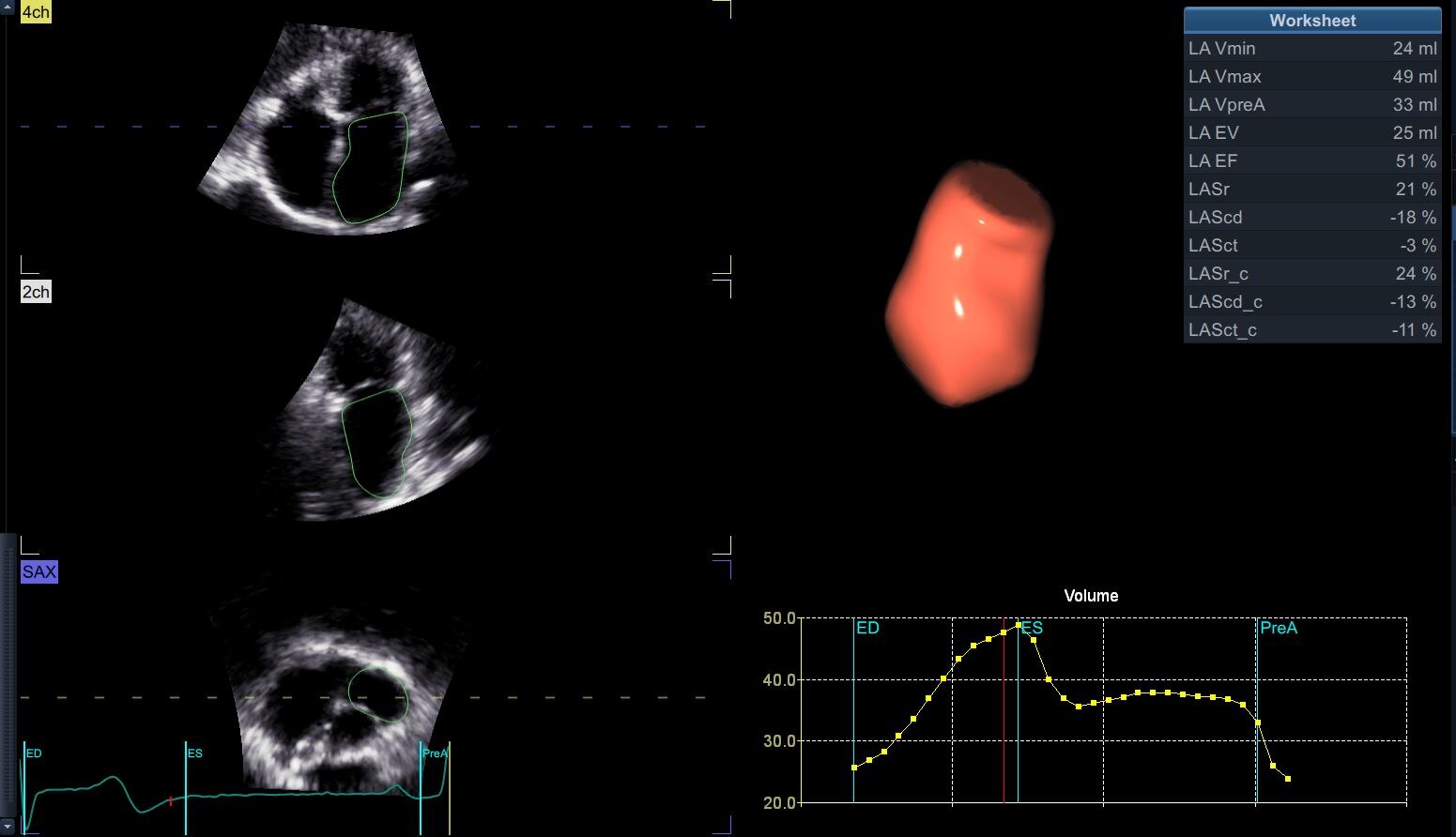

    4D Auto LAQ*

    This semi-automatic surface detecting algorithm helps clinical users get fast, reproducible and accurate 4D quantification of the left atrium, acquired with 4D TTE probes. It provides left atrial volumes as well as ejection fraction, global longitudinal and circumferential strain.
  • 4D Strain*

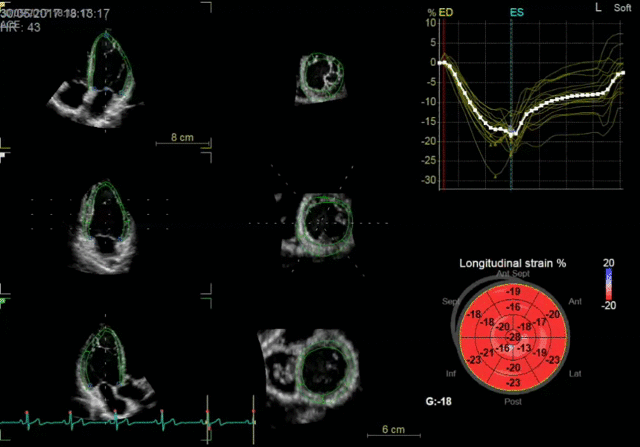

    4D Strain*

    Calculates both global and regional strain values based upon a spatial speckle-tracking algorithm. The information is presented in a strain bull’s-eye plot.

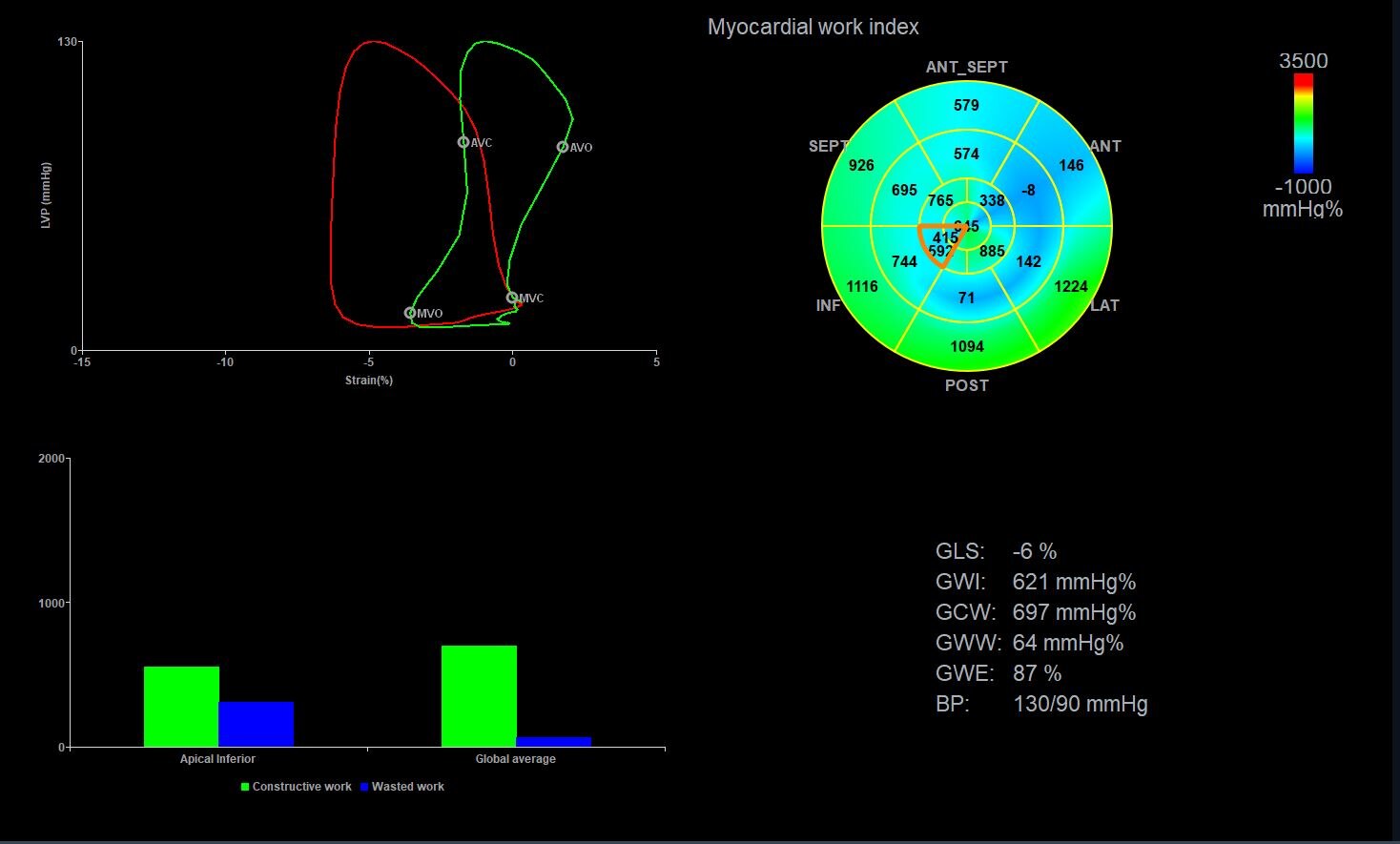

  • Myocardial Work*

    Myocardial Work*

    Introduces new and less load dependent parameters based upon the results obtained with AFI (longitudinal strain) by accounting for the systolic blood pressure measured at rest immediately prior to the echo exam, as well as the MV and AV opening and closure times. These reduced load dependent parameters may provide more accurate and reproducible results, important especially for follow-up of patients over time

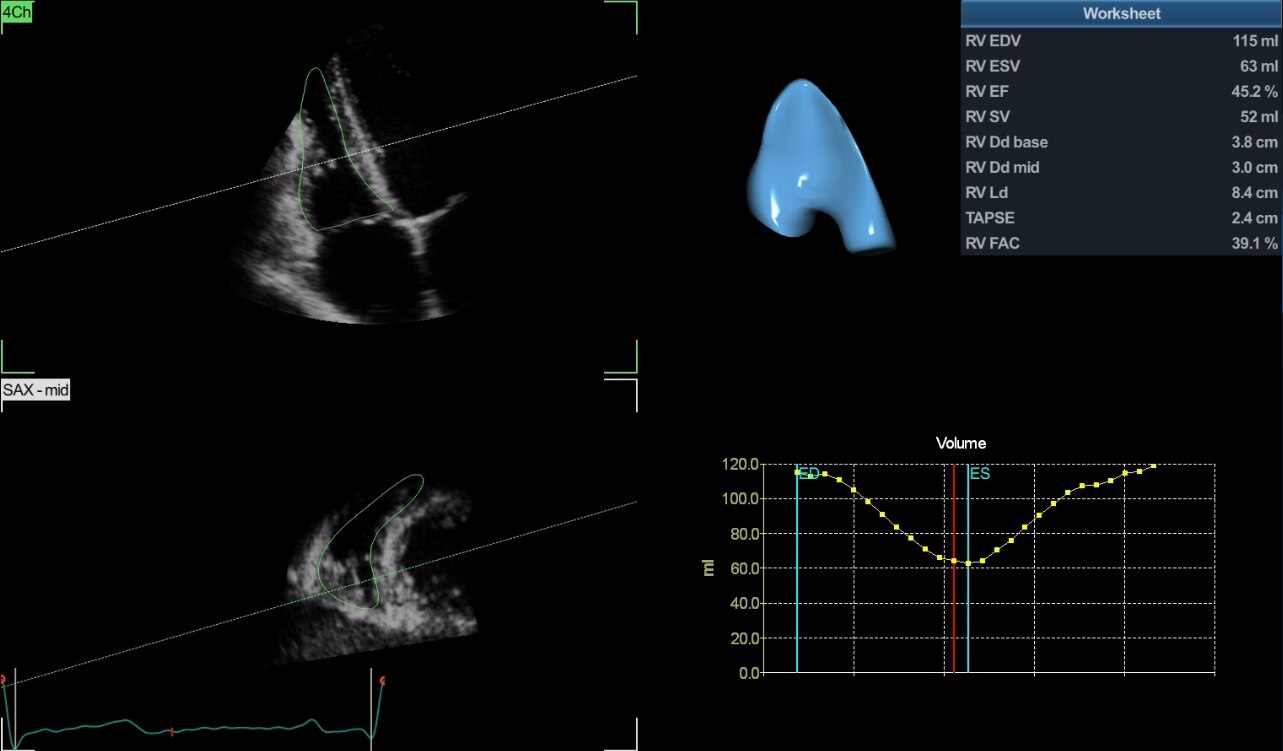

  • 4D Auto RVQ*

    4D Auto RVQ*

    This package helps visualize and quantify the right ventricle in TTE images via a semiautomatic, surface-detecting algorithm. It's seamlessly integrated into the regular M&A menu, with results ready for immediate review.

Workflow

Streamline your exams Vivid E95 with cSound performance makes 4D imaging as easy as 2D imaging with efficient and intuitive tools. The high-quality raw data as well as the DICOM® format adapts to your preferences in terms of resolution and gray scale. You can move smoothly through your work, thanks to automated tools that minimize user interaction and provide quick access to stored settings. The QuickApps tool provides flexibility and easy workflow by providing instant access to settings that were stored earlier to match your color flow or contrast parameters, keeping the geometry of the current live image.

  • Cardiac Auto Doppler

    Cardiac Auto Doppler

    With minimal user interaction, Cardiac Auto Doppler provides Doppler measurements over all heart cycles for the most common parameters, supporting consistent results in advanced studies and potentially saving time.

    Click to enlarge and see image run.

Interventional

Visualization

Ultra-high single-beat volume rates With TEE procedures growing, so is the need to find ways to achieve the benefits of 4D imaging without compromising productivity. VmaxTM enabled by cSound™ 2.0 offers ultra-high 4D volume rates acquired in single beat acquisition with no loss of image quality. Elimination of ECG gated multibeat/stitching acquisition provides enhanced overview of structures and function in cases with high and/or irregular heart rhythm - which potentially reduces interventional procedure time and improves patient outcomes.

*Optional

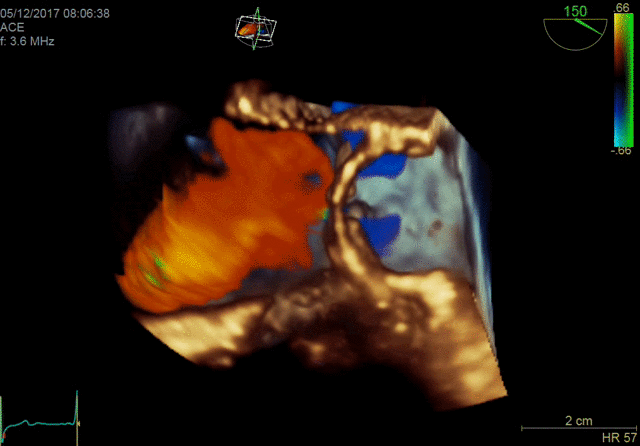

  • 4D TEE color imaging with Vmax

    4D TEE color imaging with Vmax

    4D color volume rates at large volume sizes for sake of overview, acquired in single beat acquisition as shown in this aortic valve flow acquired at 10 fps.
  • HDlive TM
    An advanced visualization method that simulates light propagation and scattering through tissue.
  • FlexiZoom

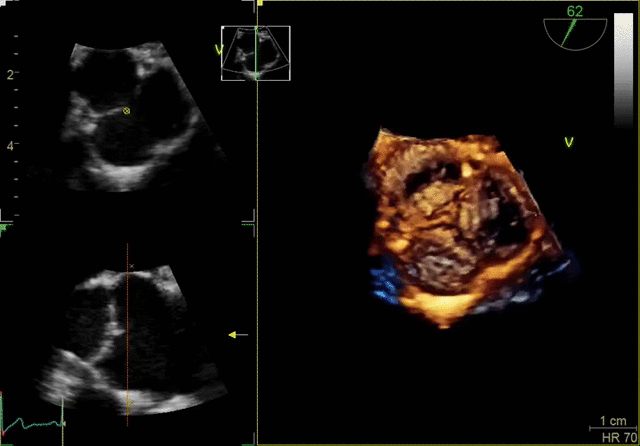

    FlexiZoom

    FlexiZoom's intuitive user interface enables flexible, quick and easy visualization of the structures of interest. The 4D zoom buttons provide quick live access to main heart structures, with no need for further volume cropping or rotation.

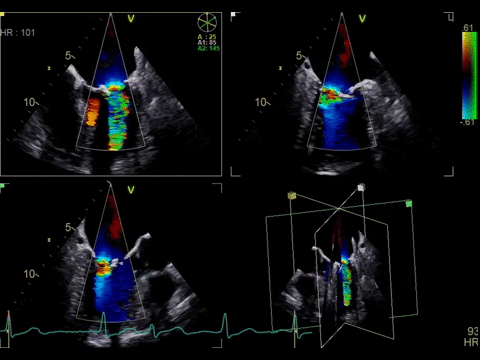

  • Triplane

    Triplane

    Triplane lets you image three planes from the same heartbeat, with high temporal and spatial resolution.
  • View-X*

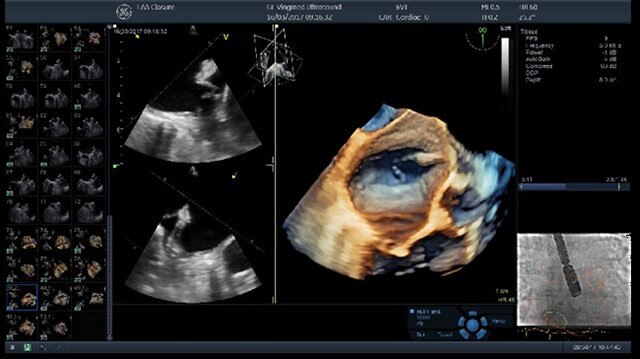

    View-X*

    Displays X-ray from fluoroscopy in real time right on your Vivid screen as a picture in picture, facilitating communication between team members.
  • 10T-D Color Flow

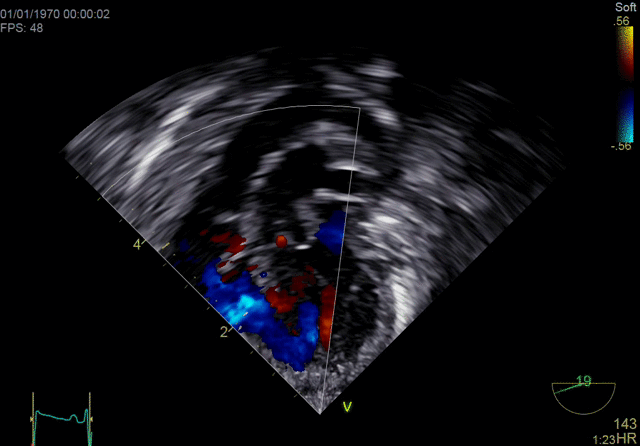

    10T-D Color Flow

    Micro TEE Multiplane Probe – Clearly visualize complex heart conditions in neonatal patients (down to 2.5 kg) and for adults with intolerance to standard TEE. The small tip size and excellent image quality allows for use during certain interventional procedures.

Quantification

Exploration made easy Quantification with Vivid E95 elevates providers' ability to evaluate problems and pursue the path forward. Count on a full suite of intuitive tools to make your work easy and efficient.

*Optional

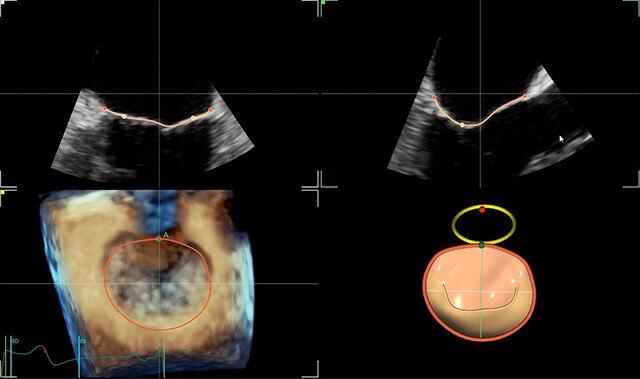

  • 4D Auto MVQ*

    4D Auto MVQ*

    Supporting TTE or TEE images, this package helps visualize and quantify the mitral valve via a semi-automatic, surface-detecting algorithm. It's seamlessly integrated into the regular M&A menu, with results ready for immediate review.

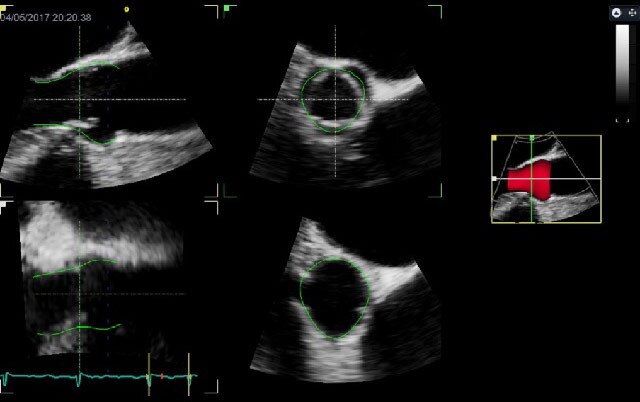

  • 4D Auto AVQ*

    4D Auto AVQ*

    Automatically segments, aligns and quantifies the aortic outflow tract - vital to device sizing and orientation for TAVI/TAVR procedures.

Workflow

Facilitate complex procedures You can move smoothly through your work, with tools that help to simplify and reduce scanning time. Additional tools include 2-click crop, Biplane prepare and 4D views.

*Optional

  • 4D Markers*

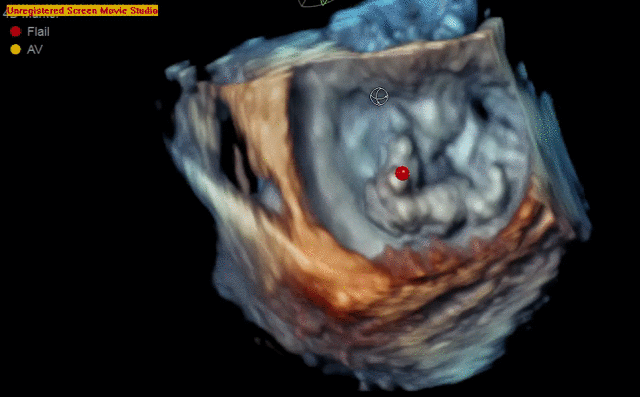

    4D Markers*

    Make annotations that are viewable from all angles on 4D ultrasound volume data sets and their 2D views, facilitating communication in the echo lab, cath lab and OR.
  • CT Fusion*

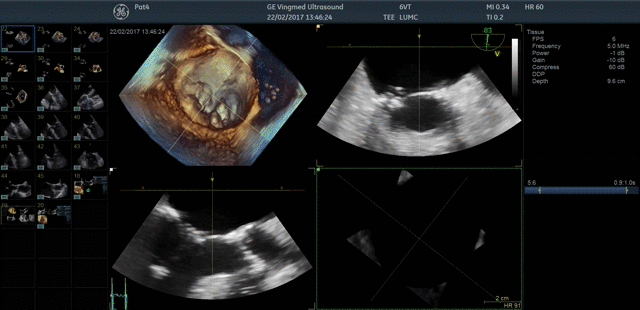

    CT Fusion*

    Simultaneously navigate 4D ultrasound and CT data, which can be used to relate 4D ultrasound images to X-ray fluoroscopy orientation.
  • FlexiSlice

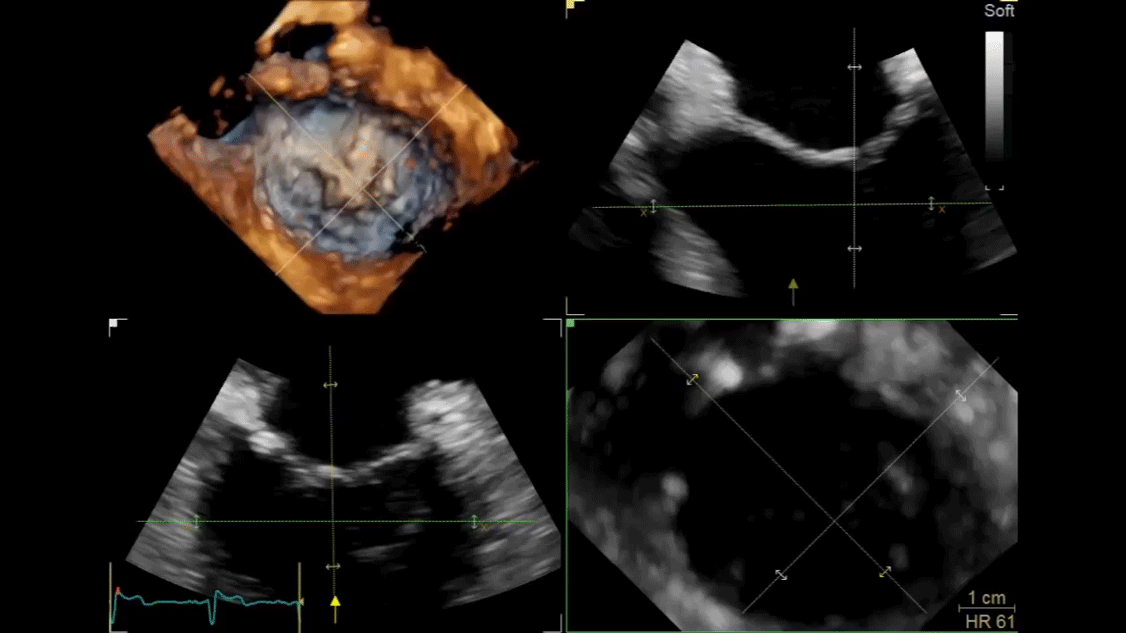

    FlexiSlice

    Extracting 2D slices from 4D volumes can be a complicated process. FlexiSlice is an intuitive, interactive tool for obtaining many 2D or render views in either live or replay mode.

    Click to enlarge and see image run.

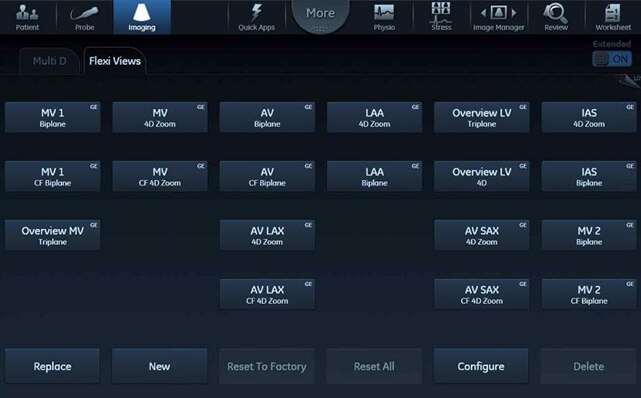

  • FlexiViews

    FlexiViews

    Provides quick access to predefined 4D/Multiplane views during live mode, potentially reducing scan time during complex interventional procedures.

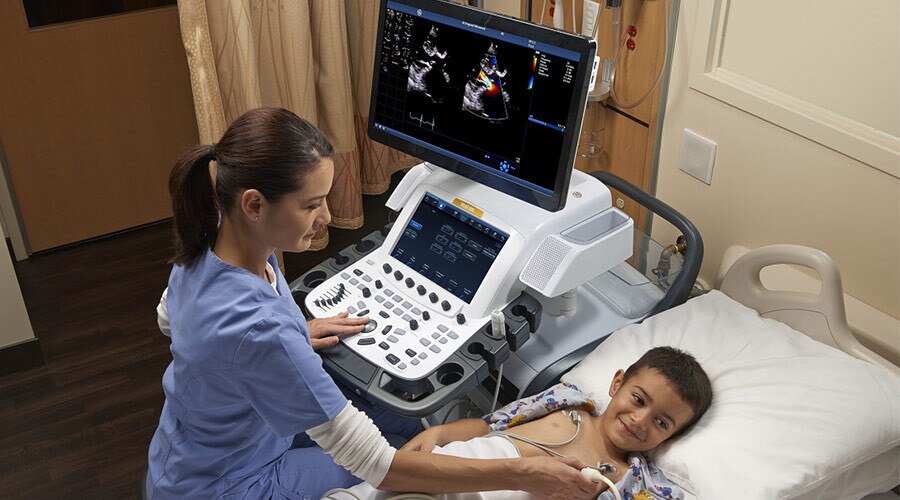

Pediatrics

Visualization

Gain innovative views into tiny structures - Acquire images on a wide range of pediatric and neonatal patients, quickly and with few system adjustments enabled by Dynamic Auto Optimization. Two dedicated pediatrics probes, 6S-D and 12S-D. Use XDclear™ transducers (C1-6-D and C2-9-D) to help you examine deep anatomy or shallow structures without sacrificing spatial or dynamic resolution.

* Compared to imaging without Texture
** Optional
  • Pediatric Color Flow

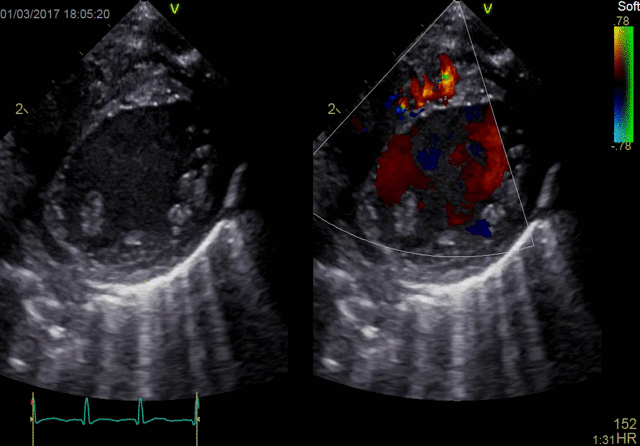

    Pediatric Color Flow

    The 6S-D and the 12S-D phased array probes provide excellent color sensitivity, contrast resolution and spectral crispness.
  • Blood Speckle Imaging**

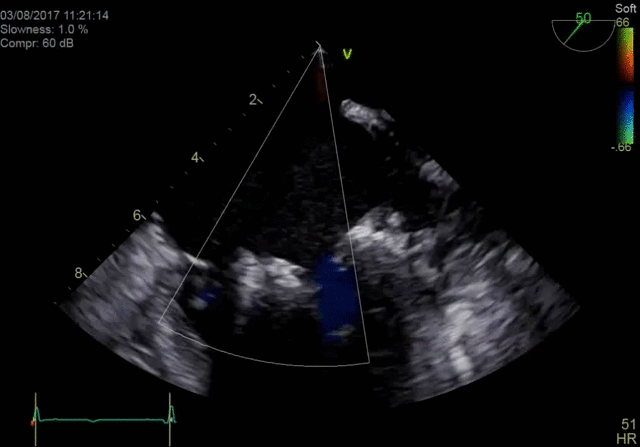

    Blood Speckle Imaging**

    Quickly understand complex blood flow issues. Reducing the angle dependency and aliasing issues of conventional color flow, Blood Speckle Imaging provides a graphical representation of the trajectories of the blood cells, helping you see flow problems quickly and clearly.

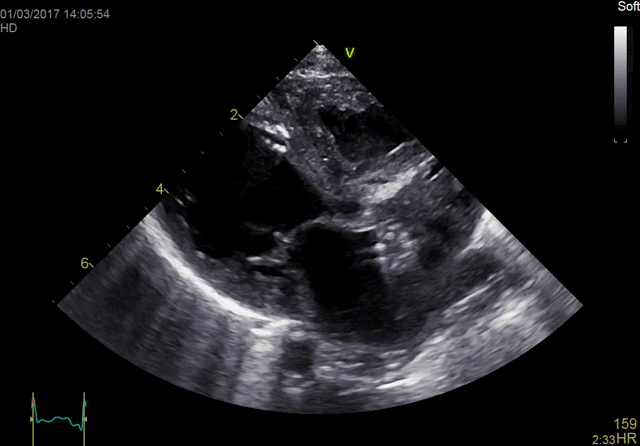

  • Neonatal Heart Imaging

    Neonatal Heart Imaging

    Image deeply and clearly in neonatal patients. Optimized for the neonatal heart, the 12S-D probe provides excellent resolution and penetration.
  • Fetal Heart

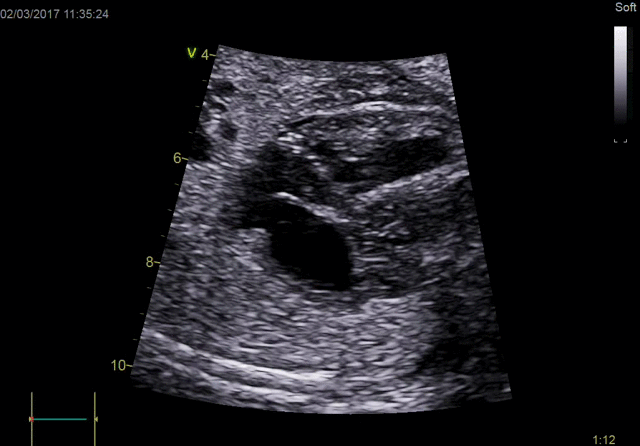

    Fetal Heart

    The C1-6-D delivers excellent 2D and color flow imaging for late trimester fetal heart imaging.
  • Texture

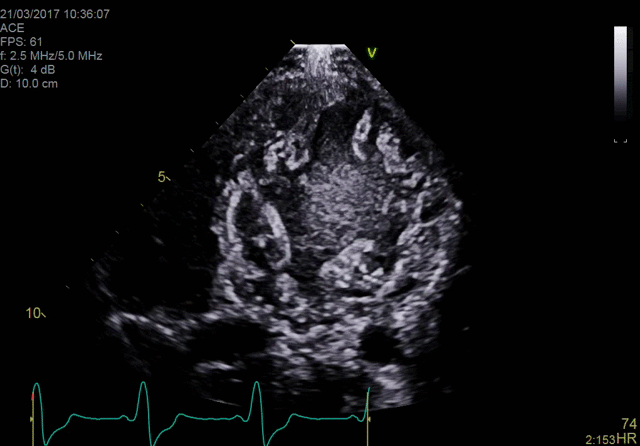

    Texture

    Obtain diagnostic images faster. Texture employs adaptive edge detection for better visualization of structures in the myocardium*, increasing diagnostic confidence.
  • Micro TEE Multiplane Probe

    Micro TEE Multiplane Probe

    Clearly visualize complex heart conditions in neonatal patients (down to 2.5 kg) and for adults with intolerance to standard TEE.

Shared Service

Visualization

Image a wide range of patients Vivid E95 delivers superb performance in your shared services operation, including cardiac, stress echo, vascular, abdominal, OB/GYN and small-parts applications. With a growing obese population, XDclear™ probes combined with cSound beamformer technology can make a difference in many of your exams, helping you quickly and easily acquire images on many different patient types.

† Compared to imaging without Virtual Convex

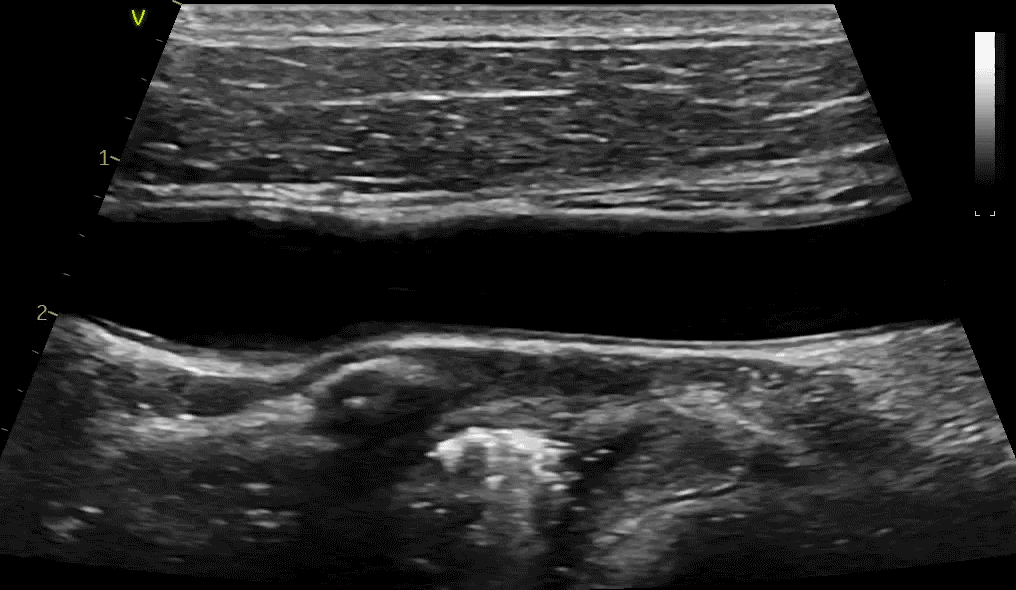

  • Vascular Imaging

    Vascular Imaging

    The two linear probes, 9L-D and 11L-D, highlight True Confocal Imaging (TCI) - providing automatic focusing throughout the field of view, with superb signal-to-noise ratio and excellent spatial resolution both near and far. Together with Virtual Convex† provides a wider far field visualization and aims to enhance image quality.
  • Abdominal Imaging

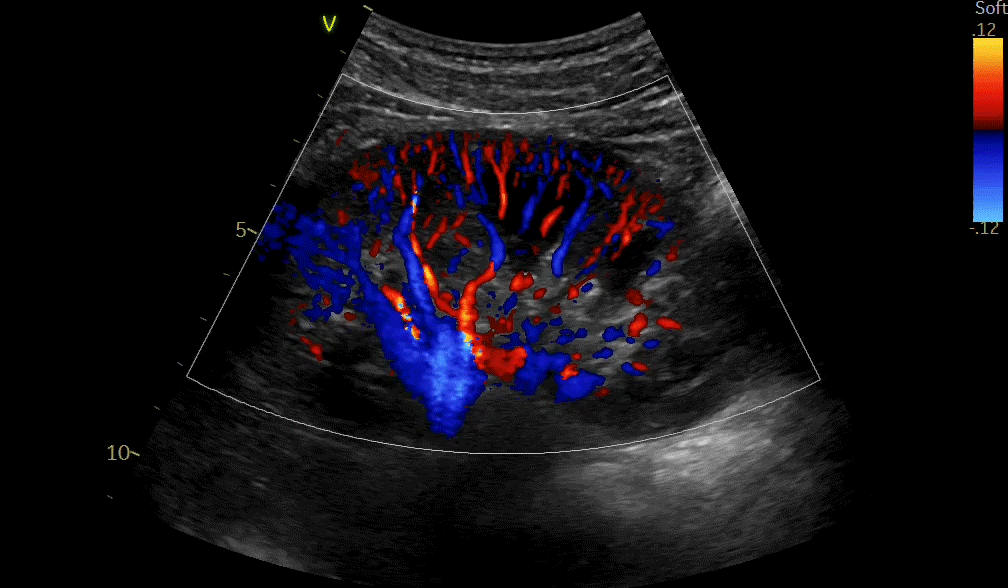

    Abdominal Imaging

    The two curved array probes, C1-6-D and C2-9-D, support general imaging as well as abdominal, renal, urology and OB/GYN applications. Both probes have XDclear™ transducer architecture, which delivers the high spatial resolution and deep penetration required for uniform presentation of anatomic structures throughout the field of view. The endocavity transducer, iC5-9-D, is also available.

Connectivity and Security

Image and Measurement Transfer

  • Raw data and all measurements (including customized) from Vivid™ Systems
  • DICOM** and public DICOM SR from 3rd party

EchoPAC Post- Processing

  • Full access to GE raw data
  • Access to all Vivid measurement tools
  • Review, post -process, and measure using AFI, Wall Motion Scoring, etc.

Image Management

  • Store and review cine loops and static images
  • Measure
  • Annotate
  • Export
  • Send to/Retrieve from Long Term Storage

Reporting

  • Create clean, comprehensive, easy-to-read reports
  • Complete reports faster with quick report templates
  • Easily add images to report
  • Option to customize reporting forms and printout
  • Report templates for TTE, TEE, Stress, Vascular
  • Enhanced DICOM review - Accelerate reviewing and reporting by using contrast, brightness and zoom/pan controls to optimize DICOM images.
  • Pediatric DICOM SR Support - Pediatric measurements sent by SR automatically populate the pediatric report on the receiving side for fast, accurate review elsewhere.

Tricefy® Uplink* – Expedite uploading of images and patient data to Tricefy Cloud – a long-term archive that enables image sharing with colleagues or patients.

Automated raw data transfer – The AI-based View Recognition feature simplifies use of raw data in a PACs environment.

Security

Vivid E95 is built and configured for reliability and security.

Windows® 10 Operating System with application whitelisting to prevent unauthorized programs from running and potentially harming the scanner.

LDAP - Help ensure patient data safety with Lightweight Directory Access Protocol, which allows your IT team to maintain greater control of who's in the system, reducing the risk of breaches.

Configurable system password - There are fully configurable user log-on passwords and internal passwords that can meet your IT department's requirements regarding security strength.

Disk Encryption - of the drive, which contains patient archive and images, helps ensure safety and privacy of the data, even in case of theft.


*Optional

**DICOM is the registered trademark of the National Electrical Manufacturers Association for its standards publications relating to digital communications of medical information

Tricefy is a trademark of Trice Imaging, Inc.

Windows is a trademark of Microsoft Corporation

Services and Support

Service. Support. Solutions.

Count on GE to help optimize the performance of your vital ultrasound assets. Our maintenance service offerings all deliver one thing - confidence.

Learn more



DIGITAL EXPERT for Vivid E95, E90, S70N & iq

Clinical training at your fingertips
Hands-on learning, personalized experience

Learning how to use your Vivid system is not a one-time occurrence. Beyond initial classes and installation, you need knowledgeable and customized training in order to ensure that you are maximizing the use of your equipment and utilizing the functions and features to its full potential.

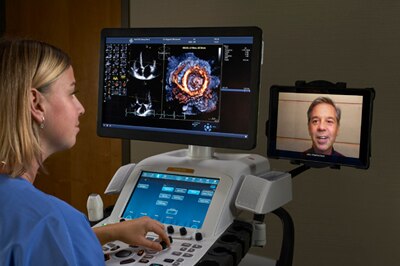

GE Digital Expert is a mobile solution that delivers virtual face-to- face training for you and your clinical team. Utilizing a mobile tablet, Digital Expert connects you to a clinical applications expert allowing you to learn at your pace and at your schedule.

  • Flexible and convenient training to fit your schedule
  • Go beyond initial training to learn advanced usage while on your own consoles
  • Learning sessions that fit your work and personal schedule
  • Maximize your time with very little disruption to your daily life
    • Digital technology connecting you to clinical experts
  • We provide you a mobile tablet allowing you to communicate directly to a clinical applications expert
  • Online content and embedded training material
  • One-on-one virtual training allows for more personalized experience
    • Digital Expert Onsite Training
  • 10 weeks, 20 courses
  • One-on-one or small groups
  • $3,000 USD
  • Courses available at your convenience
  • Basic operations
  • 2D/M-mode optimization
  • Color/PW/CW doppler optimization
  • BiPlane/TriPlan imaging
  • 4D/4D color acquisition
  • 4D navigation
  • 4D quantification
  • Strain
  • Stress tests
  • Reporting
  • ... and more

Digital Expert is separate from the console, and is for education and training purposes only.

Vivid Club

You're invited to join the club.

We invite you to join the Vivid Club, a network of thousands of fellow Vivid ultrasound users. Club membership gives you access to many tools and resources which are only available to members, helping you experience the full power of your Vivid ultrasound system. Members are regularly informed about developments in Vivid ultrasound technology and provided with special offers and opportunities which are announced on the club's own Vivid Club website.

The benefits of club membership are many:

  • Information on new products and offers
  • Educational offerings & online trainings
  • Application tips & tricks
  • White papers & user guides
  • Clinical image gallery

If you are not a member, consider joining today to begin taking advantage of these outstanding tools.
