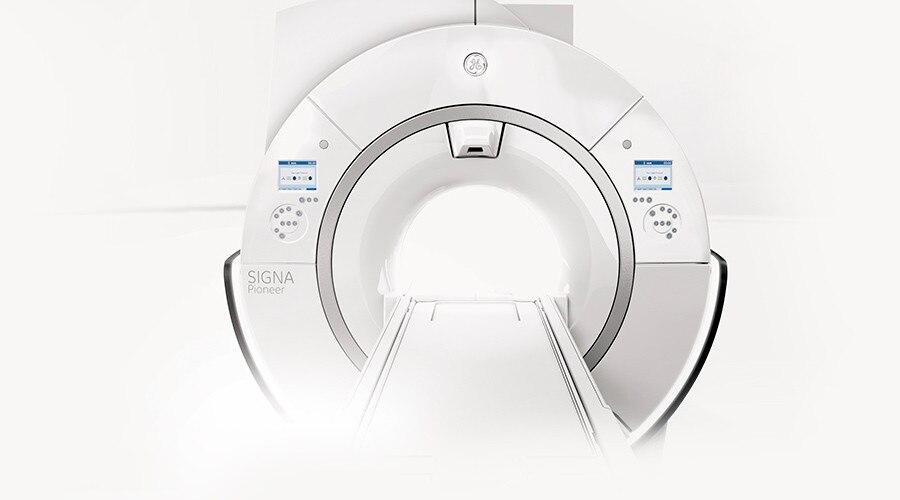

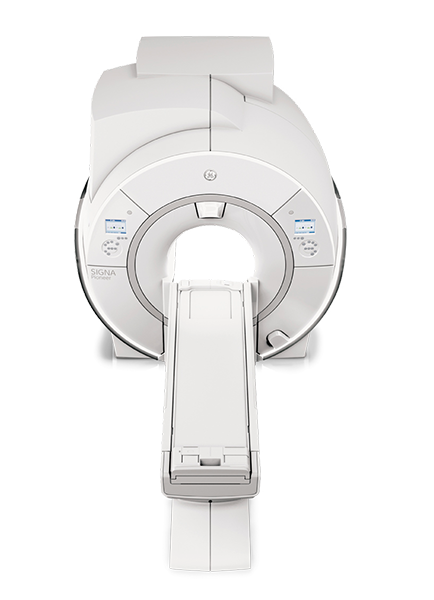

SIGNA™ Pioneer - 70cm

Turbo LAVA/LAVA Flex

Turbo LAVA/LAVA Flex delivers faster body imaging by enabling shorter breath-holds and faster scans. It includes a novel ARC-based acceleration technique which speeds up any LAVA and LAVA Flex sequence up to almost 50 percent without impact on image quality

Fewer Repeats, Less Variation

The SIGNA Pioneer includes GE's exclusive application 3D PROMO that allows real time 3D prospective motion correction and GE's proven PROPELLER technique.

Improved ergonomics for Technologists

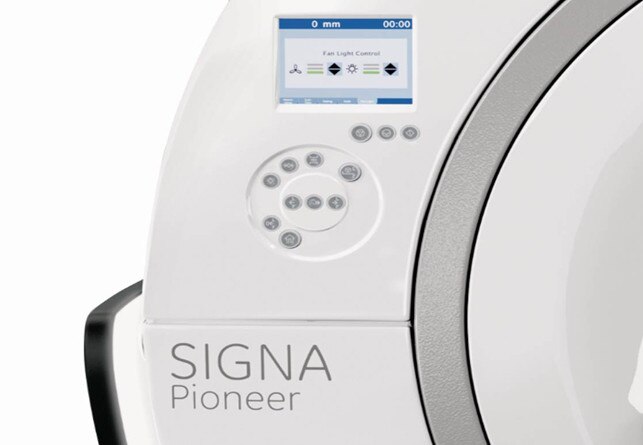

• Intuitive one Touch-N-Go IntelliTouch landmarking
• Easy in-room set up with dual touch-screen displays

IMAGINE scans sharper than you thought possible

Total Digital Imaging (TDI)

The SIGNA Pioneer offers startling advances in imaging starting with pioneering technology called TDI, meaning greater clarity and increased SNR by up to 25%.

TDI is built on three fundamental components:

• Smart digitization with GE’s Direct Digital Interface (DDI) which employs an independent analog-to-digital converter to digitize inputs from each of 97 RF channels, literally redefining the concept of an RF channel. Not only does DDI technology improve SNR, but it also works with legacy GE coils for unmatched flexibility.
• Digital Surround Technology (DST) combines the superior SNR and sensitivity of the high-density surface coils with the superior homogeneity and deeper signal penetration of the integrated RF body coil allowing richer, higher quality in spine and body imaging.
• eMode technology replaces analog blocking circuits with intelligent ultra-fast switches which further expand zero TE imaging capabilities.

Besides its unique and future-ready 97 RF channel technology, the SIGNA Pioneer uses a high-homogeneity 3.0T magnet to bring consistency in image quality across patients, a solid foundation for your long term investment .

Integrated TDI Coil Suite

The SIGNA Pioneer benefits from the exclusive TDI Coil Suite which delivers remarkable image quality with a set of coils designed to be patient-centered. It includes an embedded posterior array, high-density Head & Neck array, an anterior array with extended anatomical coverage and other highly performing MSK-dedicated coils.

ASTONISH … Designed to deliver an unmatched patient experience

With the SIGNA Pioneer, we're pioneering a patient-centered design built on a new concept of higher patient comfort and lower patient anxiety.

Soothing Silence

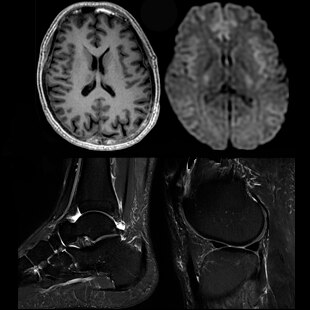

With SilentSuite, which is both revolutionary and proprietary, the SIGNA Pioneer reduces dB levels from an ear-splitting, motorcycle-level 91dB to within 3dB of scan room ambient noise. Along with this dramatic advance comes the first-ever complete Silent Neuro Exam that includes Diffusion Weighted Imaging (DWI). In addition, we have expanded our Silent imaging capability beyond neuro imaging to musculoskeletal and spine imaging.

Breathe Free

With its free-breathing imaging applications and advanced motion correction software, SIGNA Pioneer will compensate for patient movement and allow complete free-breathing body imaging. This includes dynamic contrast enhanced MR imaging, improving dramatically patient experience but also image quality in very challenging situations.

Rest Easy

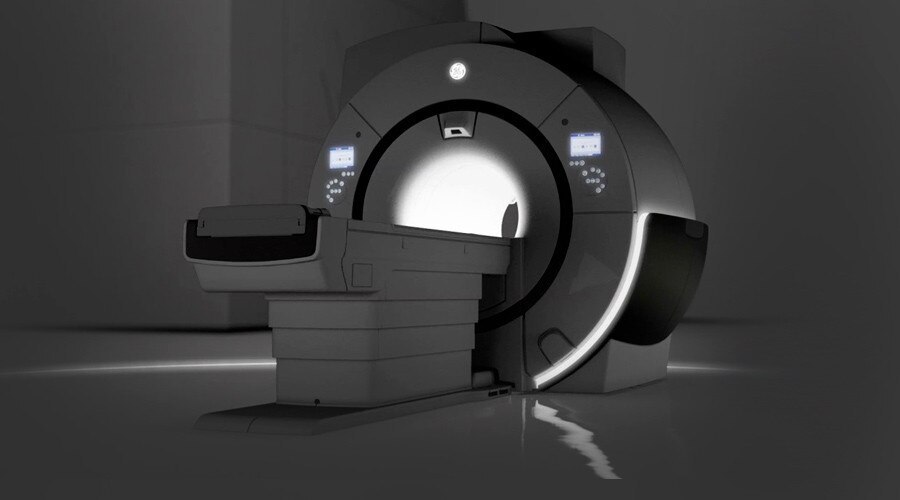

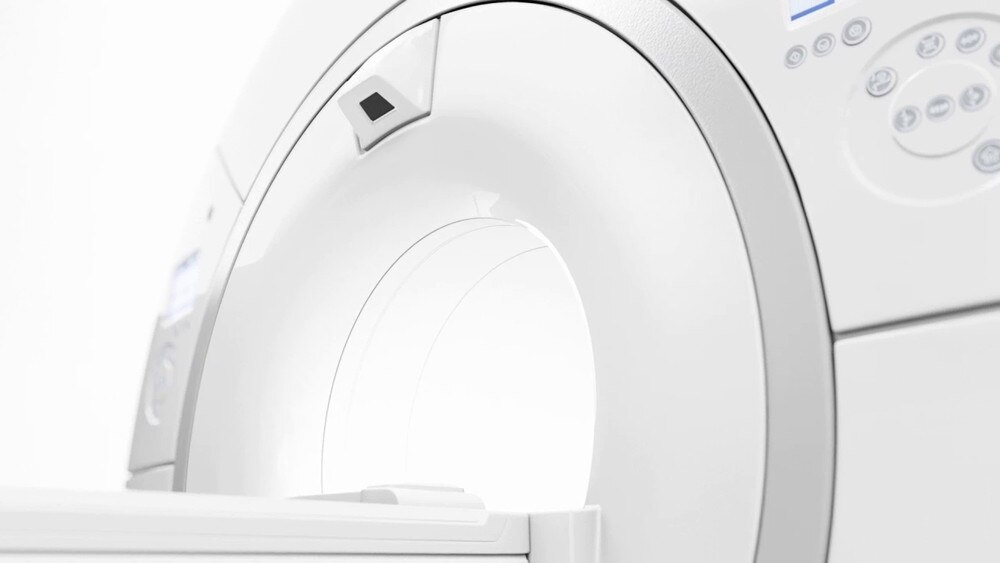

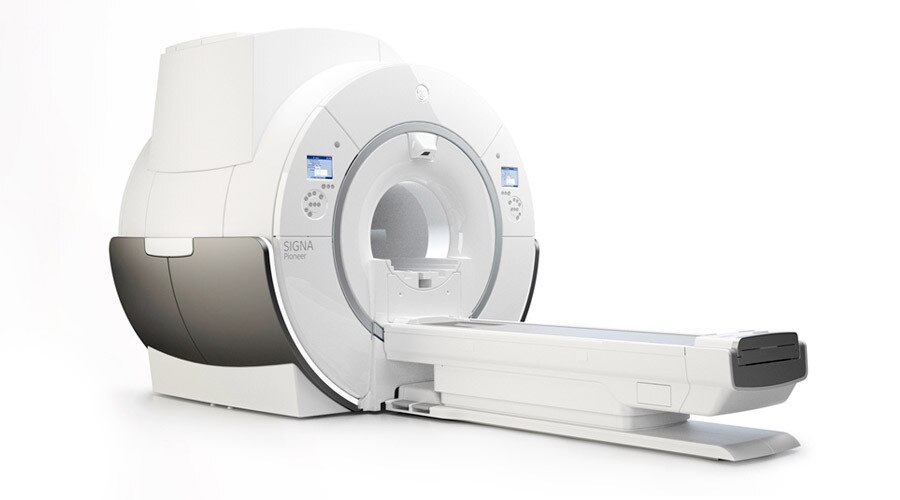

The 70 cm wide bore design means more space and less anxiety. Not only is the bore wider, but so is the table. The SIGNA Pioneer's Comfort Plus patient table even sits lower to the ground, making it easier for patients to get on and off.

Non invasive procedures

3D Arterial Spin Labeling (3D ASL) delivers quantitative perfusion assessment-without radiation or the need for injection. IDEAL IQ delivers whole liver 3D coverage in a single breath-hold. It provides a non-invasive, quantitative assessment of triglyceride fat content in the liver that can aid in diagnosis. Further, our Inhance Suite delivers a set of non-contrast angiography solutions.

Here's what our customers are saying about the SIGNA Pioneer:

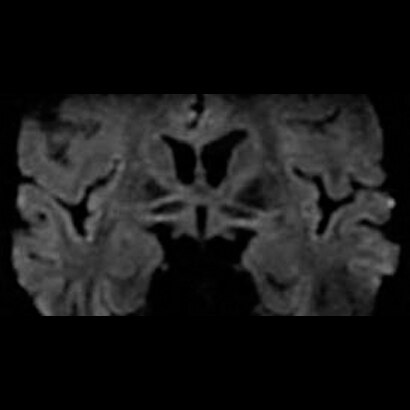

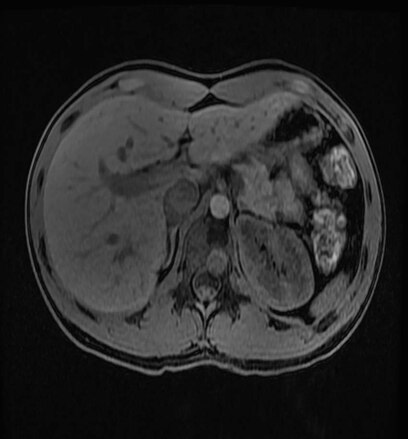

"The need of endorectal coil is no longer a clinical concern for us. Both FOCUS and DISCO are playing a key role to help delineate and characterize even small pathologies."

- Ismail Çerezci

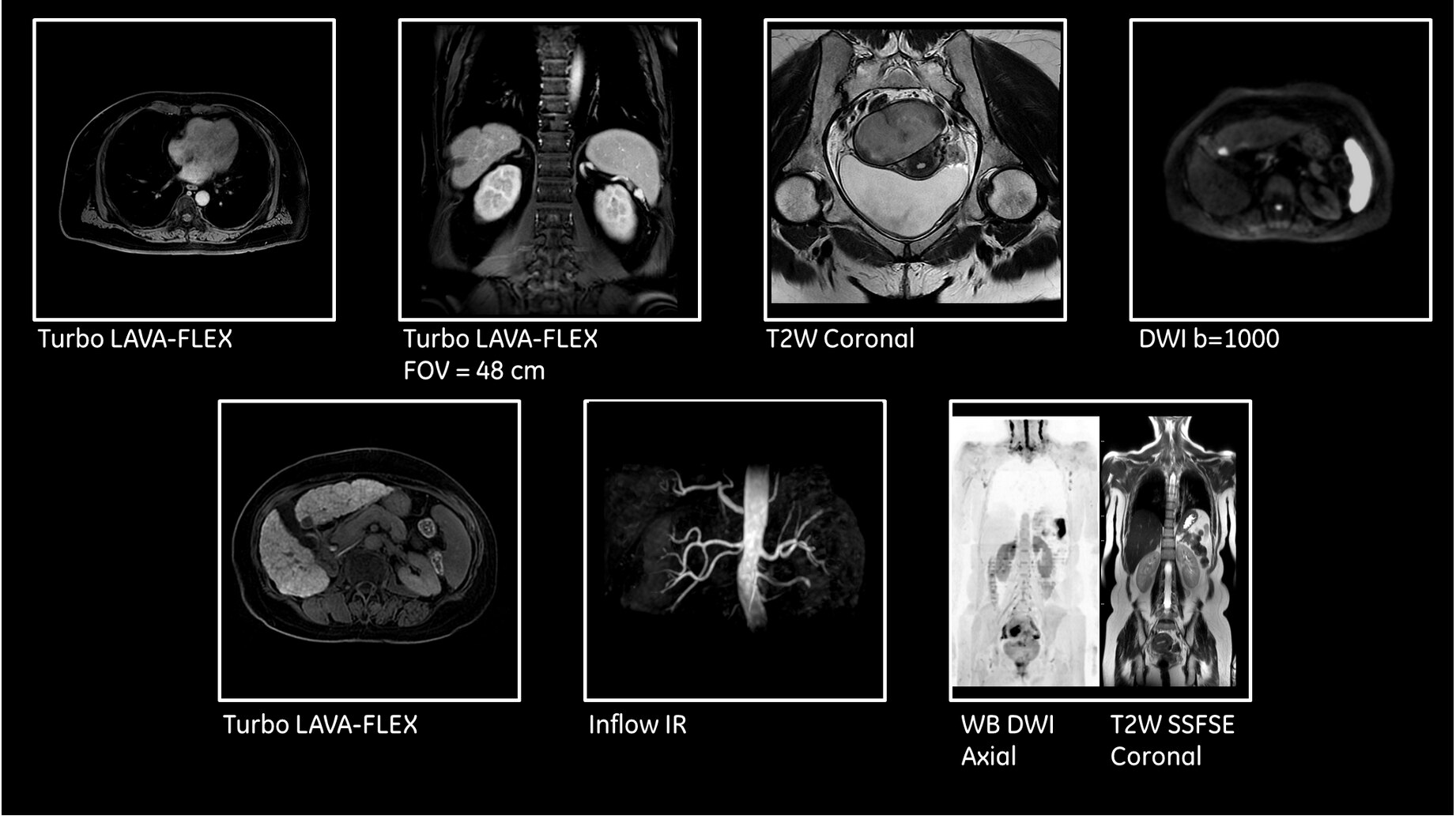

"SIGNA Pioneer is excellent. All of us are satisfied with the performance of SIGNA Pioneer. Fat suppression seems to be very impressive with LAVA FLEX. Turbo LAVA FLEX contributes to shortening of the scan time from 20 seconds to 16 seconds. It has helped to improve the success rate of dynamic breath-holding studies in the upper abdomen."

- Dr. Shigeo Okuda

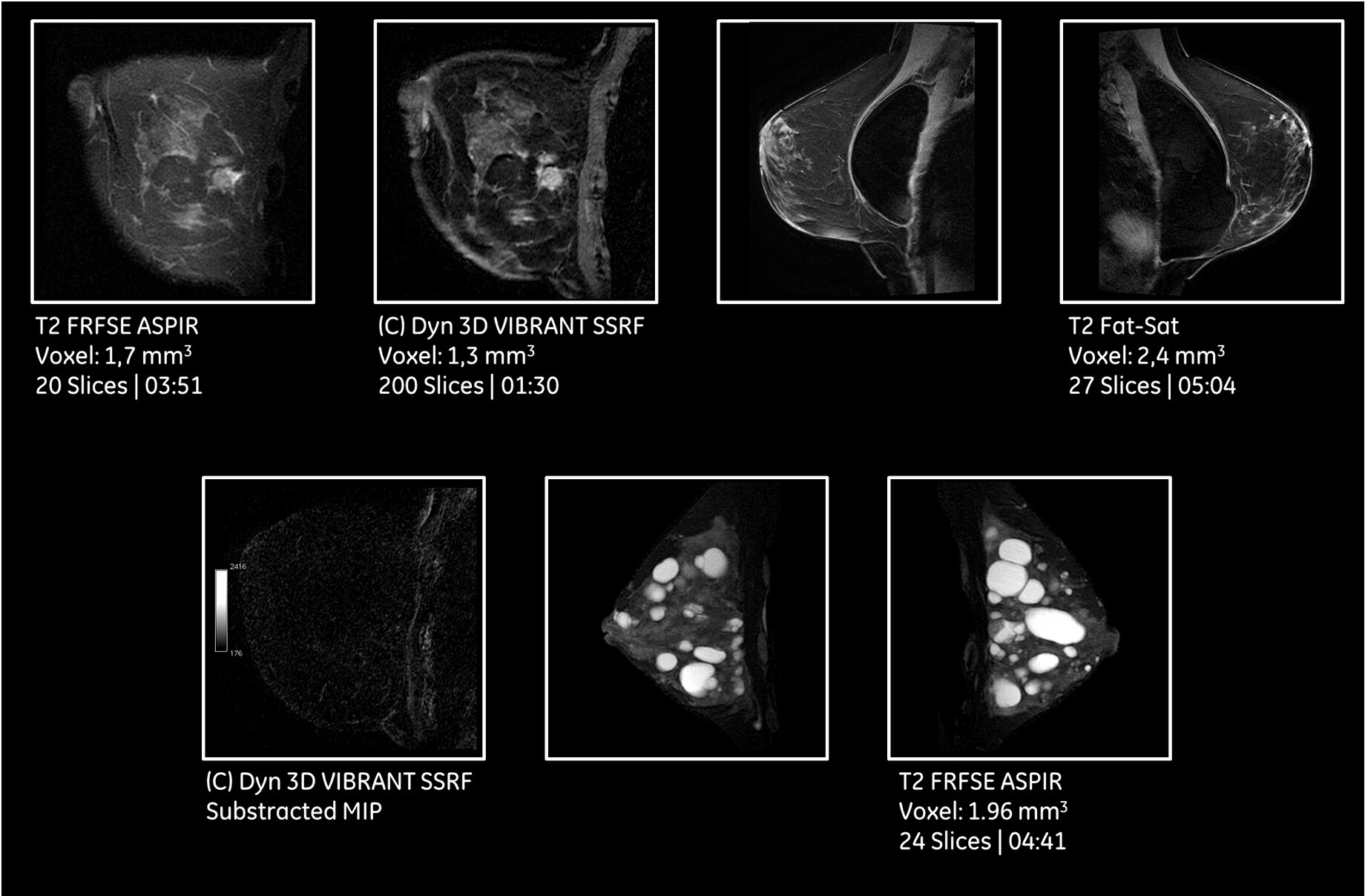

"One word: "Robustness." The 3.0T SIGNA Pioneer and dedicated breast applications are the best match to boost the clinical diagnosis in our institution. Fat-saturation failures in challenging prosthesis cases are behind us and part of our history."

- Dr. Hulya Sezer

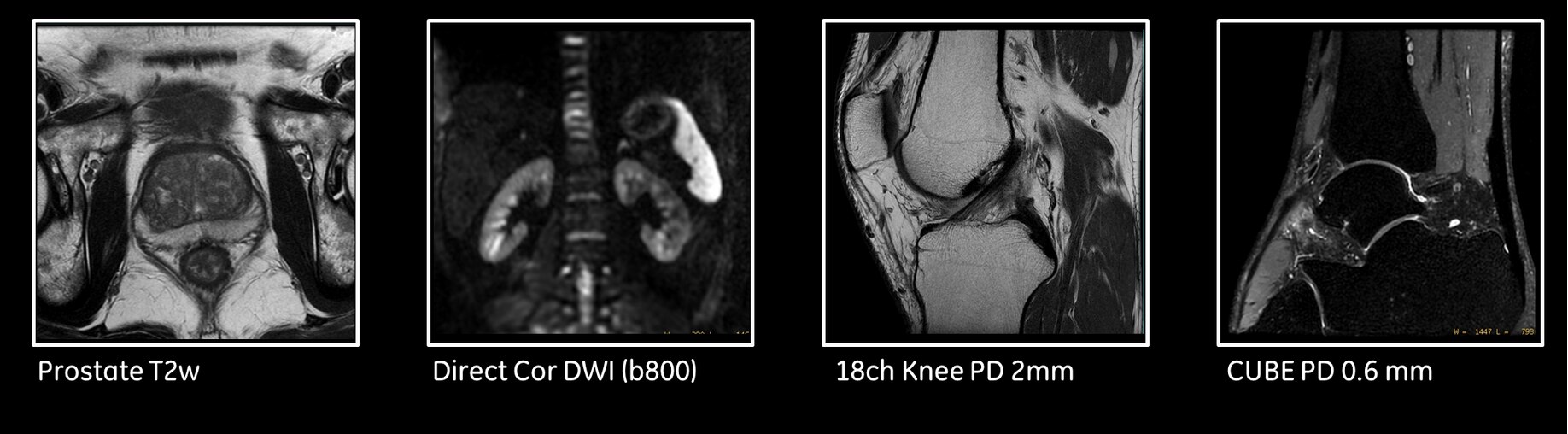

"SIGNA Pioneer is our 3rd 3.0T system and I am very impressed with the technology included in this system because the image quality it delivers exceeds my expectations. I am very pleased with the good uniformity and SNR performance of the system. The new RF technology is really making a difference. Also with the short scan times and echo times, we are able to achieve are similar to what I would expect in a system with much higher gradient specifications. The new gradient technology in the SIGNA Pioneer is exceptional."

- Dr. Takayuki Masui

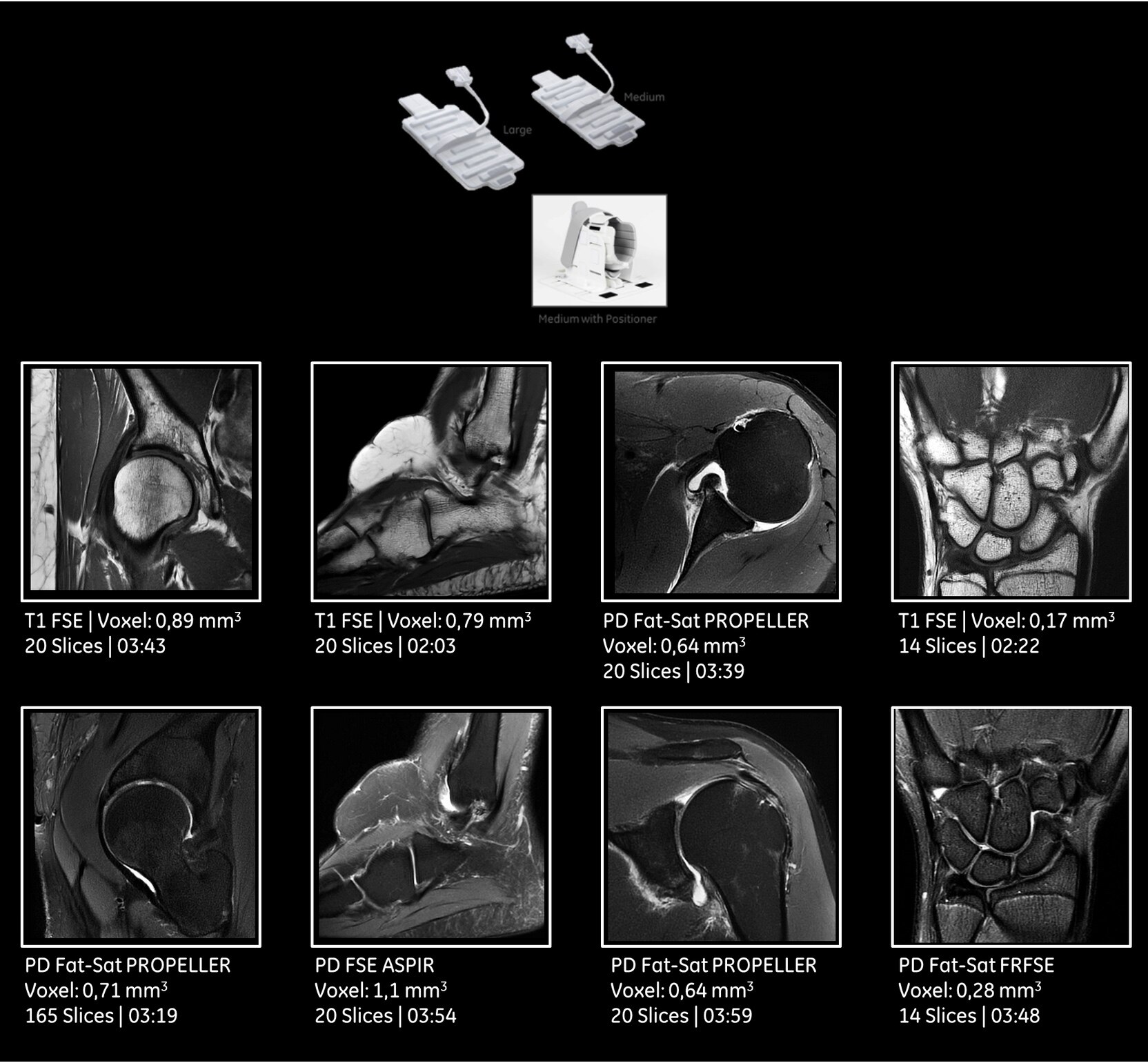

"The SIGNA Pioneer with 16 channel Flex Coil Suite has dramatically improved our confidence while imaging challenging MSK exams. Now we are able to meet the needs of different patient anatomies and requirements."

- Dr. Ismail Çerezci
