Innova IGS 540

For for vascular and interventional imaging

rventional-x-ray-igs-for-interventional-radiology-innova igs 540-innova igs 540 banner.jpg

Innova IGS 540

For for vascular and interventional imaging

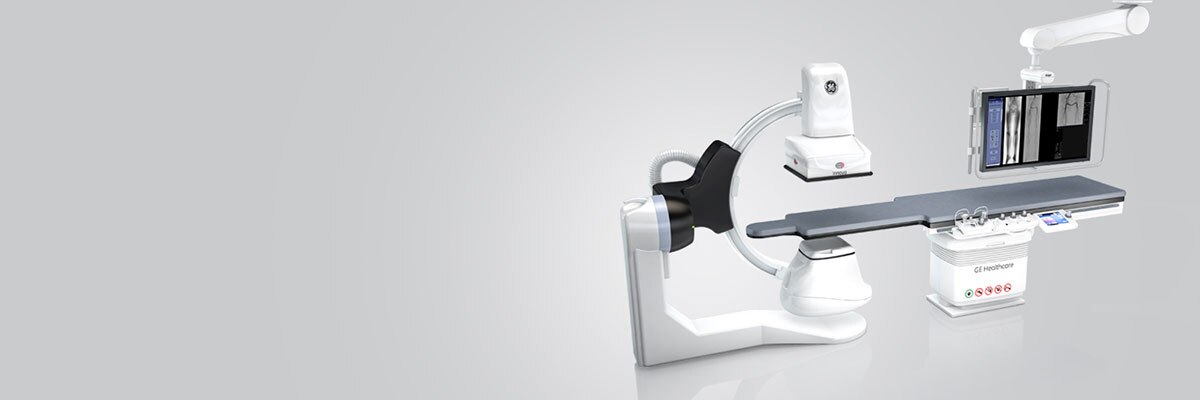

Innova™ IGS 540 is a floor-mounted system that boasts one of the largest fields of view for vascular and interventional imaging.

See. Your Way. Clearly.

With its 41 x 41 cm (16.1 in) square flat-panel digital detector, Innova IGS 540 provides extensive body coverage for peripheral and abdominal procedures.

It is designed from the ground up to provide the image clarity you need while helping you keep dose as low as possible. It includes Features like Dose Personalization1, which gives you the tools to choose from up to four automatic exposure preferences for your system2. You can also modify any of these preferences in any clinical protocol3, to enable multi-procedure, multi-user customization and thus support well-informed decisions. With the new generation of GE's advanced interventional imaging software solutions, ASSIST, you can expand your clinical versatility and successfully pion, guide and assess increasingly sophisticated procedures with greater precision and dose efficiency.

Tour

hotspot tours-innova igs 540-gehc-innova-540-tour_spotlight_active.jpg
  • Gantry angulations

    3-axis C-arm makes complex angulations easy to achieve.

  • Head access

    Comfortable access to the head of the patient with the offset C-arm and L-positioner.

  • InnovaBreeze*

    Follow the contrast bolus in real time using variable panning speed control with an easy workflow.

  • Lateral imaging

    Easy transition from AP to lateral using flexible offset C-arm and L-positioner.

  • Off-set C-arm

    Maximum positioning flexibility and excellent patient access for coverage from groin to head.

hotspot tours-innova igs 540-gehc-innova-540-tour_spotlight_active.jpg
  • Close Central touchscreen

    Simple, centralized, automated control of system functions from the tableside.

  • In-room 3D

    Navigate at tableside in the anatomy on pre-acquired or per-operative datasets.

  • Synchro 3D

    3D model moves in synchrony with the gantry angulations.

hotspot tours-innova igs 540-gehc-innova-540-tour_spotlight_active.jpg
  • FlightPlan for Liver

    Intuitive 3-step liver embolization planning at the beginning of the procedure.

  • Innova 3D and Innova CT

    Easy 200° rotational spin with automatic volume reconstruction.

  • Innova TrackVision

    Helps you precisely plan needle trajectories, progress with confidence down the planned trajectory overlaid on live fluoroscopy, and visualize any deviations from the path.

  • Innova Vision

    Innova Vision

Benefits

ASSIST

Power up your clinical decision making

The interventional field is growing with ever-expanding capabilities and migration to less invasive, safer and more cost-efficient procedures. With the new generation of GE's advanced interventional imaging software solutions, ASSIST, you can expand your clinical versatility and successfully plan, guide and assess increasingly sophisticated procedures with greater precision and dose efficiency.

Needle ASSIST 4

Performing needle procedures in the interventional suite frees up your CT system and provides exceptional access to the patient. However, under fluoroscopic guidance, it may be challenging and time-consuming to find the right entry point and advance the needle while avoiding critical structures.

Plan

Define optimal needle entry points and pathways directly on oblique CBCT cross sections.

Guide

All at tableside, visualize and correct mis-registrations in both translation and rotation.

Assess

Visualize reconstructed 3D needle on CBCT oblique view from 2 fluoroscopic images with precision.

Liver embolization

To deliver therapeutic material to tumors during trans-arterial chemoembolization therapy, it is essential to identify the liver vessels accurately. But the liver's complex vasculature can make precise identification of tumor-feeding vessels in 2D and 3D images a challenge, often requiring significant time, radiation, and contrast media.

Plan

Within 3-intuitive steps, FlightPlan for Liver automatically highlights vessels traveling from the catheter tip to the vicinity of a hyper-vascular lesion

Guide

With Vision 2, overlay highlighted vessel on fluoroscopy. Use Digital Zoom and Back-view to enhance visualization and guidance. Compensate patient motion with bi-view mode.

Assess

Assess the embolic agent repartition and compare with pre-op contrast imaging with Integrated Registration. 40 cm Large detector and Discovery IGS Wide Bore ease 3D rotational angiography acquisition

In clinical use, the results of the application of dose reduction techniques will vary depending on the clinical task, patient size, anatomical location and clinical practice. The Interventional radiologist, assisted by a physicist as necessary has to determine the appropriate settings for each specific clinical task.

1 - Option
2 - Except in following countries: Germany, Switzerland, Austria, New Zealand where that list is limited to 3 preferences
3 - by requesting it to your entity responsible for the servicing of your equipment
4 - Needle ASSIST solution includes TrackVision 2, stereo 3D and requires AW workstation with Volume Viewer, Volume Viewer Interventional. These applications are sold separately.
