Innova IGS 530

For cardiovascular imaging

Innova IGS 530

For cardiovascular imaging

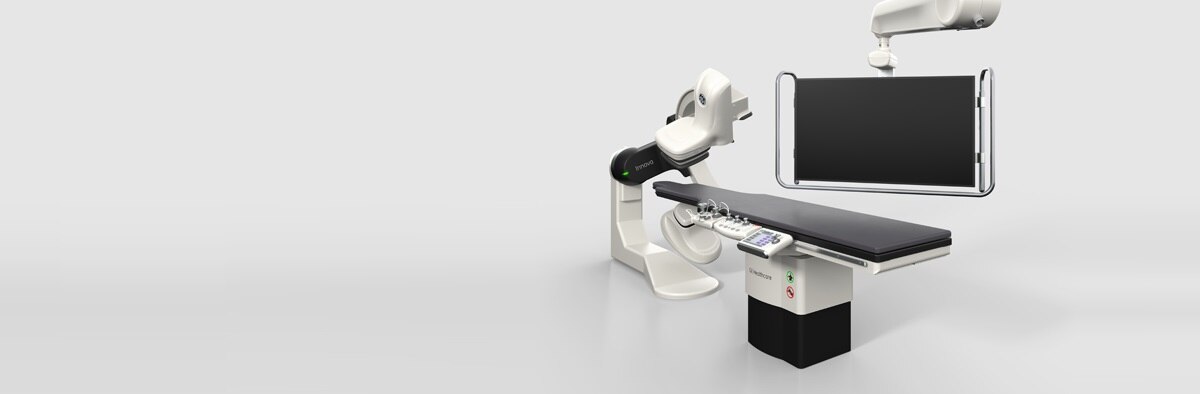

Innova™ IGS 530 is our image guided system with optimal panel size (30 x 30) for cardiovascular and interventional imaging.


As flexible as it is powerful

With its versatile 31 x 31 cm (12.2 in.) square flat-panel digital detector, the Innova IGS 530 is a multi-purpose floor-mounted system designed to support a variety of interventional vascular procedures, from neurological to peripheral exams. It also has the agility for steep angulations required for coronary angiography. The Innova IGS 530 is designed from the ground to provide the image clarity you need while helping you keep dose as low as possible. It includes features like Dose Personalization1, which gives you the tools to choose from up to four automatic exposure preferences for your system2. You can also modify any of these preferences in any clinical protocol to enable multi-procedure, multi-user customization and thus support well-informed decisions3. Powered with the new generation of GE's advanced interventional imaging software solutions, ASSIST, you can expand your clinical versatility and successfully plan, guide and assess increasingly sophisticated procedures with greater precision and dose efficiency.

Benefits

ASSIST

Power up your clinical decision making

The interventional field is growing with ever-expanding capabilities and migration to less invasive, safer and more cost-efficient procedures. With the new generation of GE’s advanced interventional imaging software solutions, ASSIST, you can expand your clinical versatility and successfully plan, guide and assess increasingly sophisticated procedures with greater precision and dose efficiency.

Valve ASSIST 26 for Transcatheter Aortic Valve Implantation

Valve ASSIST 24  for Transcatheter Aortic Valve Implantation: Plan

Plan

0-click aorta segmentation and valve definition makes accurate valve sizing accessible to anyone.

Valve ASSIST 24  for Transcatheter Aortic Valve Implantation: Guide

Guide

Leverage planning directly in the exam room with intuitive table side user interface. Calcification Enhancement improves the visualization of moving contrasted structures.

Valve ASSIST 24  for Transcatheter Aortic Valve Implantation: Assess

Assess

Assess potential regurgitation with exceptional contrast visualization. Real time benefits of Ultrasound imaging5 or angiography all in one place.

Valve ASSIST 26 for Left Atrial Appendage Closure

Valve ASSIST 24  for Left Atrial Appendage Closure: Plan

Plan

Segment easily the atrium in a single click. Measure the appendage neck. Define and mark in advance trans-septal perforation.

Valve ASSIST 24  for Left Atrial Appendage Closure: Guide

Guide

Guide with confidence your trans-septal puncture and device deployment with pre-op CT overlay.

Valve ASSIST 24  for Left Atrial Appendage Closure: Assess

Assess

Ultrasound imaging5 can be integrated to our Large display monitor6 . All information converge in one place to help you make fast decision.

Related Content

  • documents-us-global-products-igs-igs-pci-assist_pdf

    IGS-PCI-ASSIST

    Download
  • documents-us-global-products-igs-igs-valve-assist-2-and-vividtm-e95_pdf

    IGS-Valve ASSIST 2 and VIVIDTM E95

    Download
  • gs-booklet_-_benefits_of_valve_assist_2_and_vivid_e95_for_laac_procedures_-__jb48745xx_pdf

    Benefits of Valve ASSIST 2 and Vivid E95 for LAAC procedures

    Download

In clinical use, the results of the application of dose reduction techniques will vary depending on the clinical task, patient size, anatomical location and clinical practice. The Interventional cardiologist, assisted by a physicist as necessary has to determine the appropriate settings for each specific clinical task.

1. Option
2. Except in following countries: Germany, Switzerland, Austria, New Zealand where that list is limited to 3 preferences
3. By requesting it to your entity responsible for the servicing of your equipment
4. PCI ASSIST refers to features of Innova IGS 530
5. Improvement vs. same test without PCI ASSIST option. IQ & visibility improvement is measured on Innova IGS530 with phantoms using various Plexiglass Thicknesses, acquisition parameters and the NEMA spoke wheel tool (ref 1), calculating the ratio of the contrast of the moving wires to the background noise level. The amount of Image Quality improvement related to PCI ASSIST depends on the acquisition parameters, clinical task, patient size, amount of motion in the image, anatomical location, and clinical practice. Ref1: A new tool for benchmarking cardiovascular fluoroscopes; S. Balter, Radiation Protection Dosimetry, Vol. 94, No. 1–2 pp. 161–166 (2001)
6. Valve ASSIST 2 solution includes TAVI Analysis, HeartVision 2 and requires AW workstation with Volume Viewer, Volume Viewer Interventional. These applications are sold separately.
7. Ultrasound imaging is not included in Valve ASSIST 2
8. The U/S Image on the Large Display Monitor is for information. The primary display for U/S imaging is on the Ultrasound screen.
