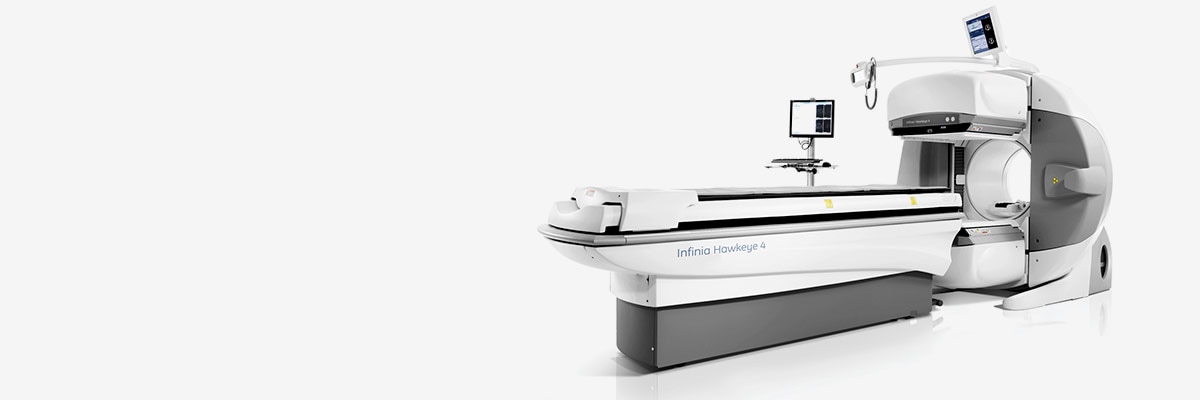

GoldSeal Infinia Hawkeye 4

Infinia™ Hawkeye™ 4 incorporates hybrid imaging technology to help enable confident diagnosis, disease detection and precise localization.

The GoldSeal™ refurbished Infinia™ Hawkeye™ 4 is a premium, high performance, all purpose, dual detector SPECT/CT imaging system, with extra large rectangular FOV detectors positioned in flexible geometries and the built-in Hawkeye™ 4 CT system for advanced imaging capabilities.

Learn more with our GoldSeal Infinia Hawkeye 4 product overview and GoldSeal brochure.

Features

Open, path-through flexible geometry gantry

Slip-ring gantry enables continuous multiple tomographic rotations in the same direction
Externally mounted detectors, with flexible positioning for all major studies
Adjustable scanning radius for both 90 degree and 180 degree SPECT scans Elite digital dual detectors
Crystal thickness – 3/8 in./9.5 mm
59 high quantum efficiency PMT’s - each coupled with one ADC per PMT
Extra large, rectangular FOV: 540 mm x 400 mm

Elite digital dual detectors

Crystal thickness – 3/8 in./9.5 mm
59 high quantum efficiency PMT’s - each coupled with one ADC per PMT
Extra large, rectangular FOV: 540 mm x 400 mm (21.25 in. x 15.75 in.)

Dual-axis cantilever imaging table

Low attenuation carbon fiber tabletop
Easy patient handling, comfortable tabletop

Infinia acquisition station
Hawkeye 4 integrated CT system

Available options

Collimators (new and preowned)
Pediascan
Axial head holder
10KVA UPS
IVY R-wave trigger
Xeleris software options

Configuration

Infinia Hawkeye 4 refurbished
Optional Xeleris workstation for camera integration included
Infinia table leg extender
17” LCD acquisition monitor
Optional 17” LCD Persist kit (I2) included

Hawkeye 4 Integrated CT system

Slip-ring gantry mounted X-ray unit and CT detector
350 W HV power generator
Fixed anode tube with high beam energy - 140 kVp, 2.5 mA
CT detector - 4 rows of 384/1.8 x 7.6 mm cadmium tungstate detectors

Benefits

Infinia Hawkeye 4 can help you deliver the precision needed for diagnosis and treatment planning:

Focus on functional abnormalities earlier than anatomical changes
Increase productivity as compared to stand-alone technology
Obtain outstanding image resolution and contrast
Accommodate multiple imaging positions: standing, seated, wheelchair, stretcher
Achieve optimal attenuation correction
Reduce acquisition dead time between views as compared to stand-alone technology
Lower injected dose or faster scans enabled by Evolution* technology

GoldSeal Advantage

GoldSeal pre-owned, refurbished systems offer you a smart use of resources, as well as:

Selective process: Stringent selection standards ensure that only those systems with well-known and acceptable service histories qualify for GoldSeal.
Quality: Refurbishing completed by OEM factory-trained technicians who ensure all OEM specifications are met.
Same-as-new warranty: Same one-year warranty as on new systems; service contracts available.
Service/support: Online assistance with questions, local service.
Up-to-date technology: Refurbishing includes installation of latest possible software release and original OEM parts.
Training: Operation and application training available, with optional CE Tech training credits available.

Learn more with our GoldSeal brochure.
