Advantage 4D

• Automatically sorts 4D image data by respiratory phase into multiple bins.
• Display offers movie-looped views of the anatomy in motion so you can determine the best phase range in which to treat the patient.
• 3D or 4D-based image display and manipulation provides image acquisition resolution up to 512x512 matrix.
• Program examines motion profile generated by vendor device.
• Generates multiple phase series for 2D, 3D, and 4D viewing.
• Creates MIP, Ave-IP and Min-IP series that you can use for more efficient planning of standard or gated therapy delivery.

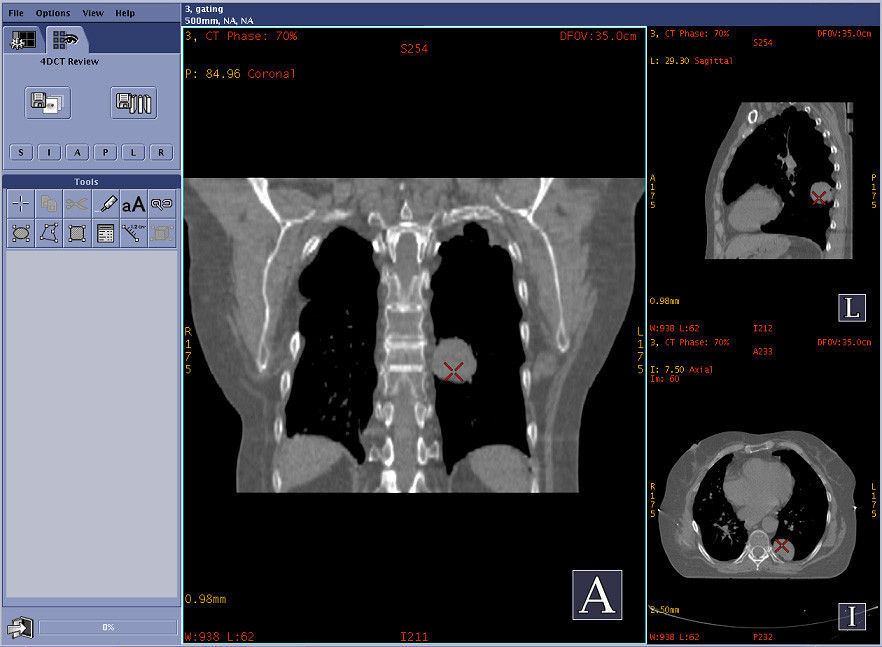

Image display

Three windows display transverse, coronal, sagittal, oblique, and 4D images, which can be magnified within the display window or to full-screen size. All images are labeled with patient ID.

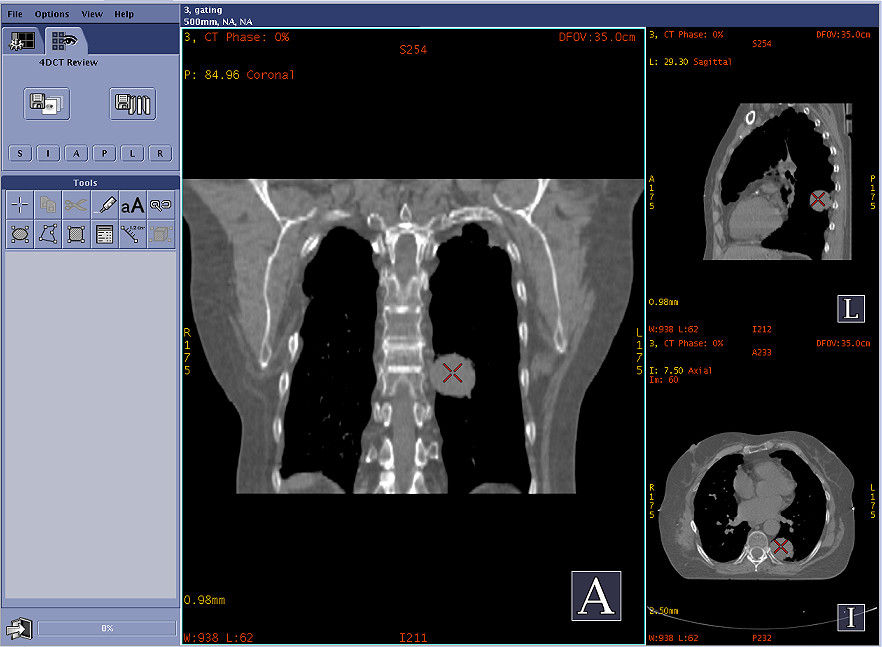

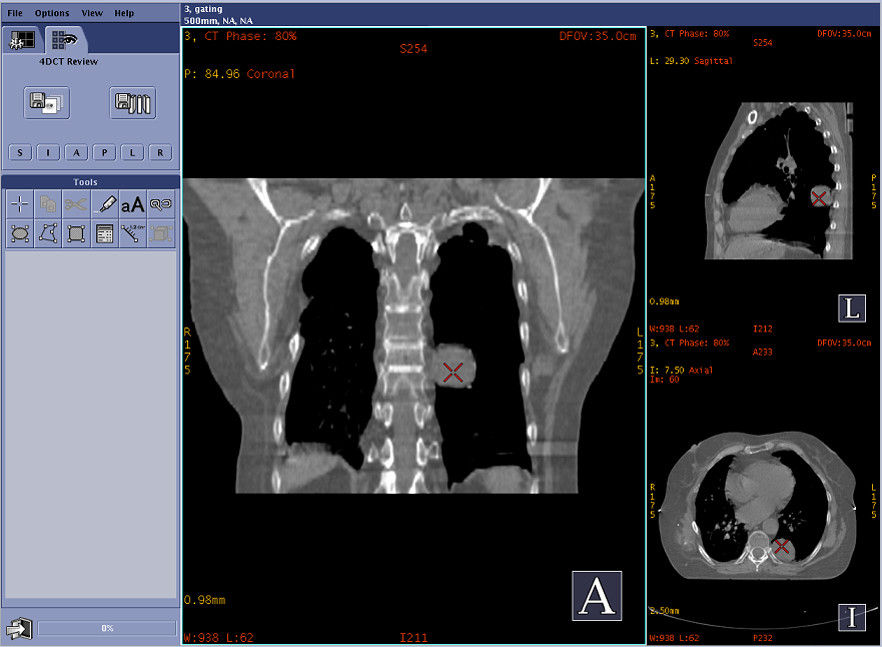

Motion assessment and correction

Advantage 4D improves clinical images by reducing organ and tissue motion due to respiration during CT acquisitions. The software lets you retrospectively define the highest quality images within a respiratory range, then automatically groups images by the phase(s) selected.

Advantage 4D Application is supported on the AW Workstation and AW Server platforms.

Advantage 4D is a non-invasive software / hardware option that can be used to provide and display CT images of all phases of a breathing cycle for the evaluation of respiration-induced motion. The software will allow the user to retrospectively define the best respiratory phase from an image quality standpoint, and group images by the phase selected.
